Full Active Suspension System
Full Active Suspension System

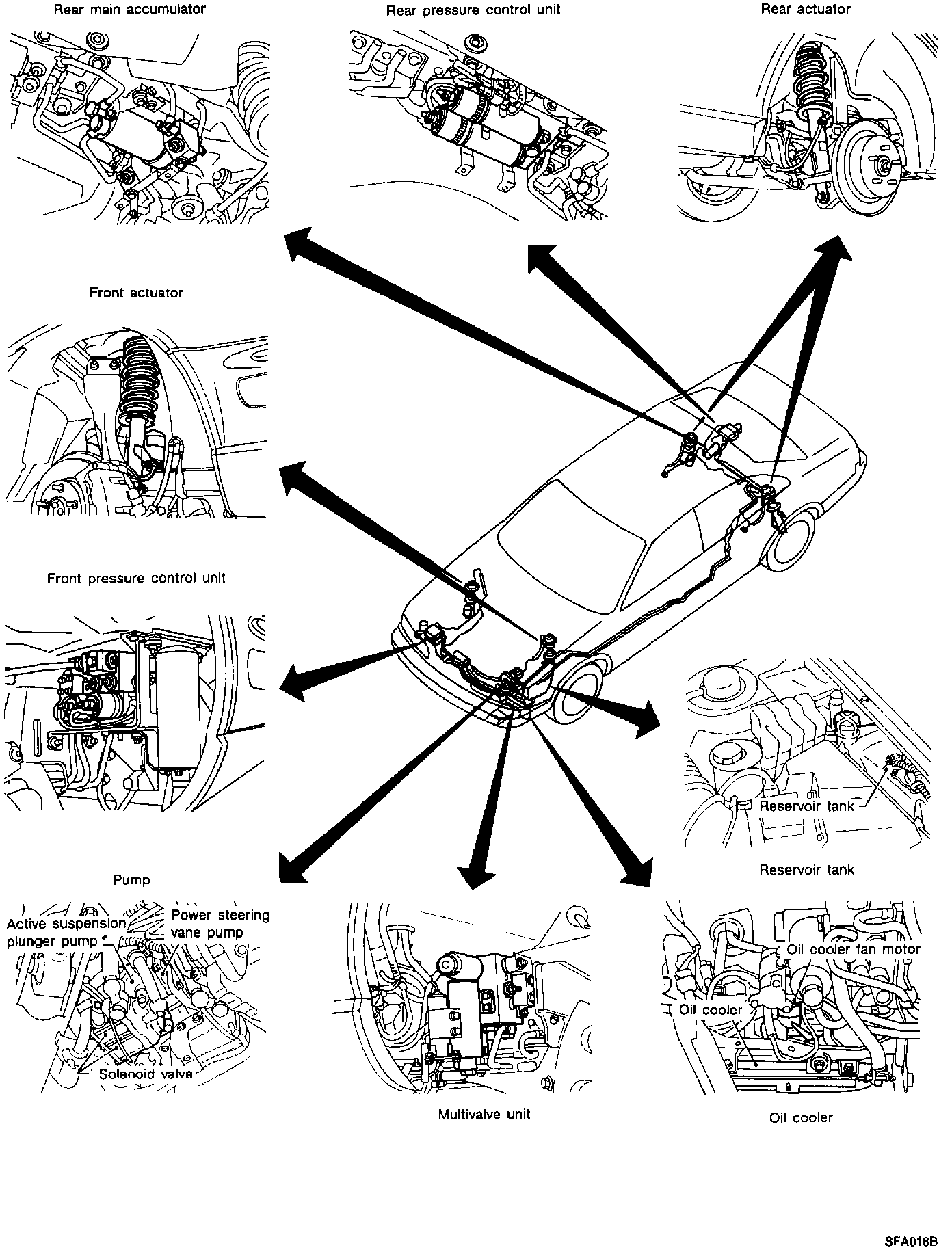

Component Parts And Connector Locations (Part 1 Of 2):
Component Parts And Connector Locations (Part 2 Of 2):
