Antitheft and Alarm Systems

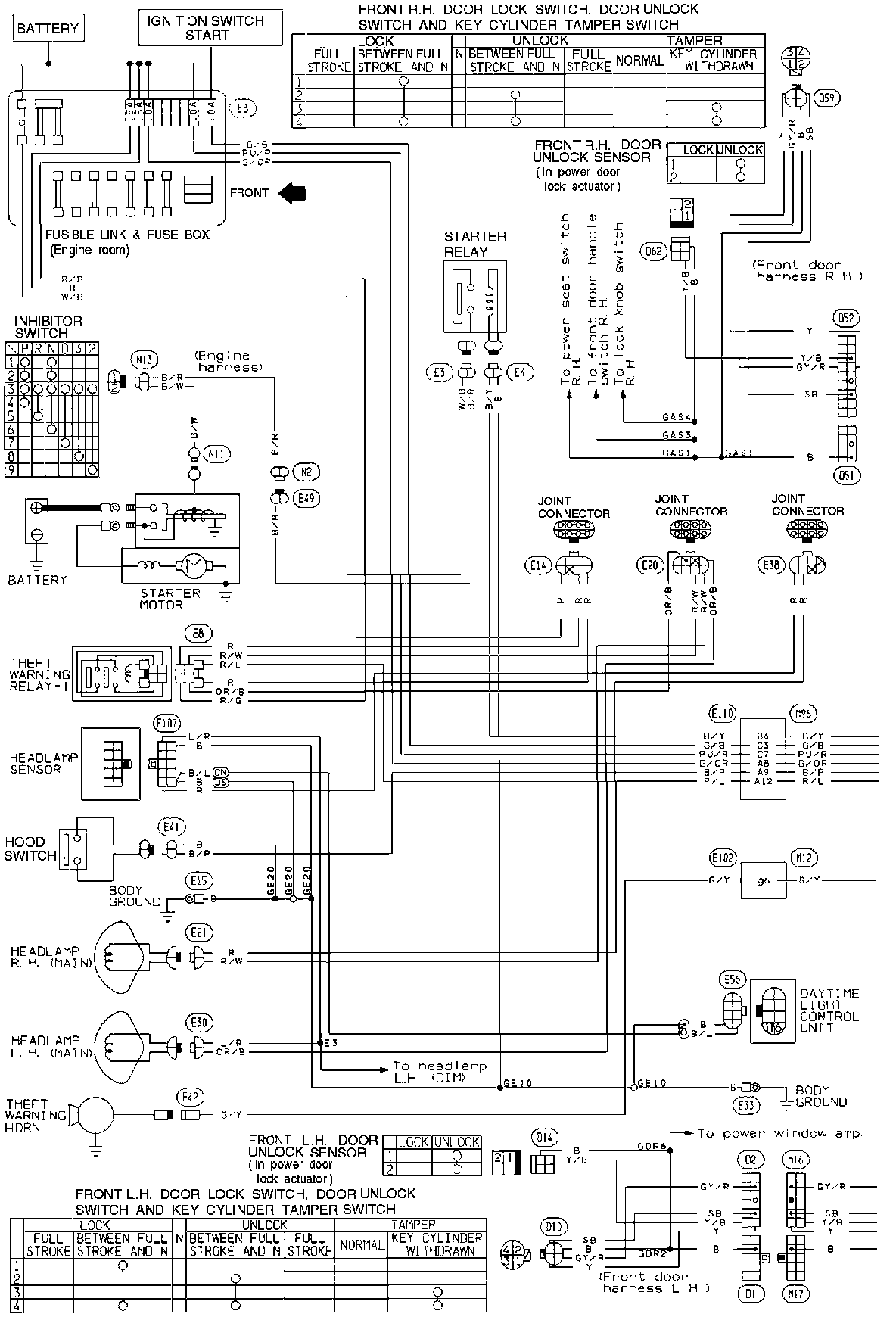

Circuit Diagram Quick Pinpoint Check (Part 1 Of 2):

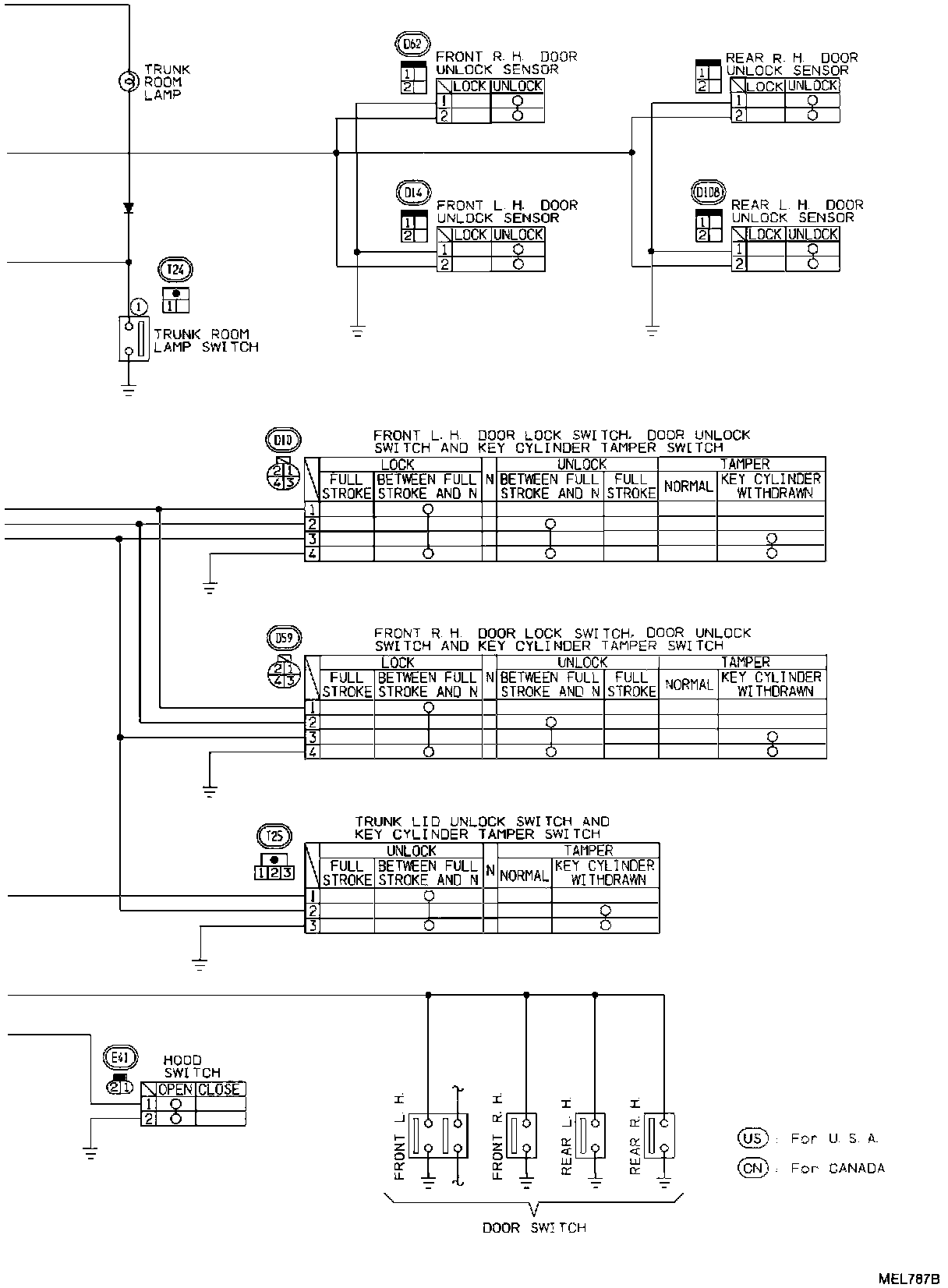

Circuit Diagram Quick Pinpoint Check (Part 2 Of 2):

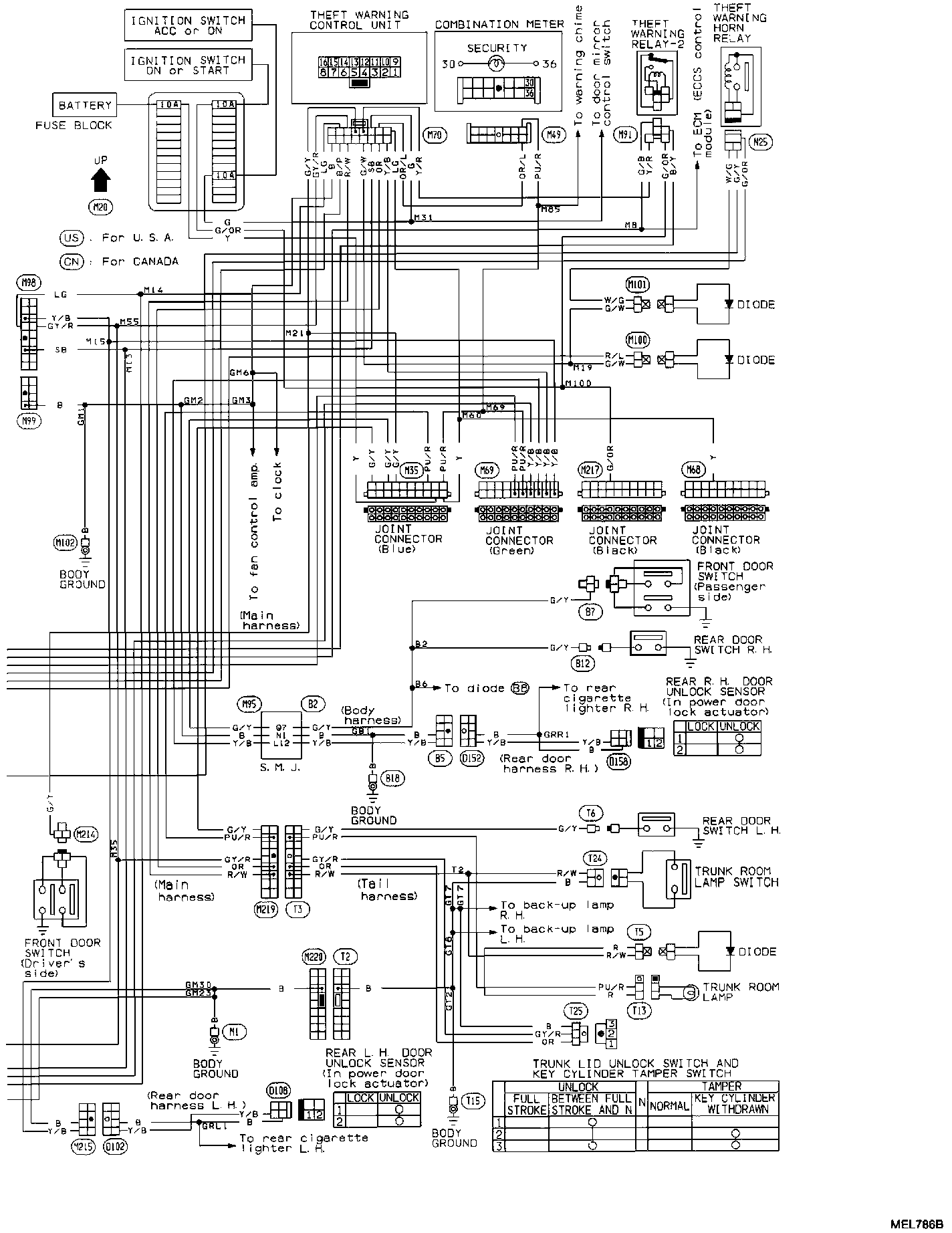

Theft Warning System Wiring Diagram (Part 1 Of 2):

Theft Warning System Wiring Diagram (Part 2 Of 2):
