Instrument Panel, Gauges and Warning Indicators
>>
Speedometer Module
Speedometer Module

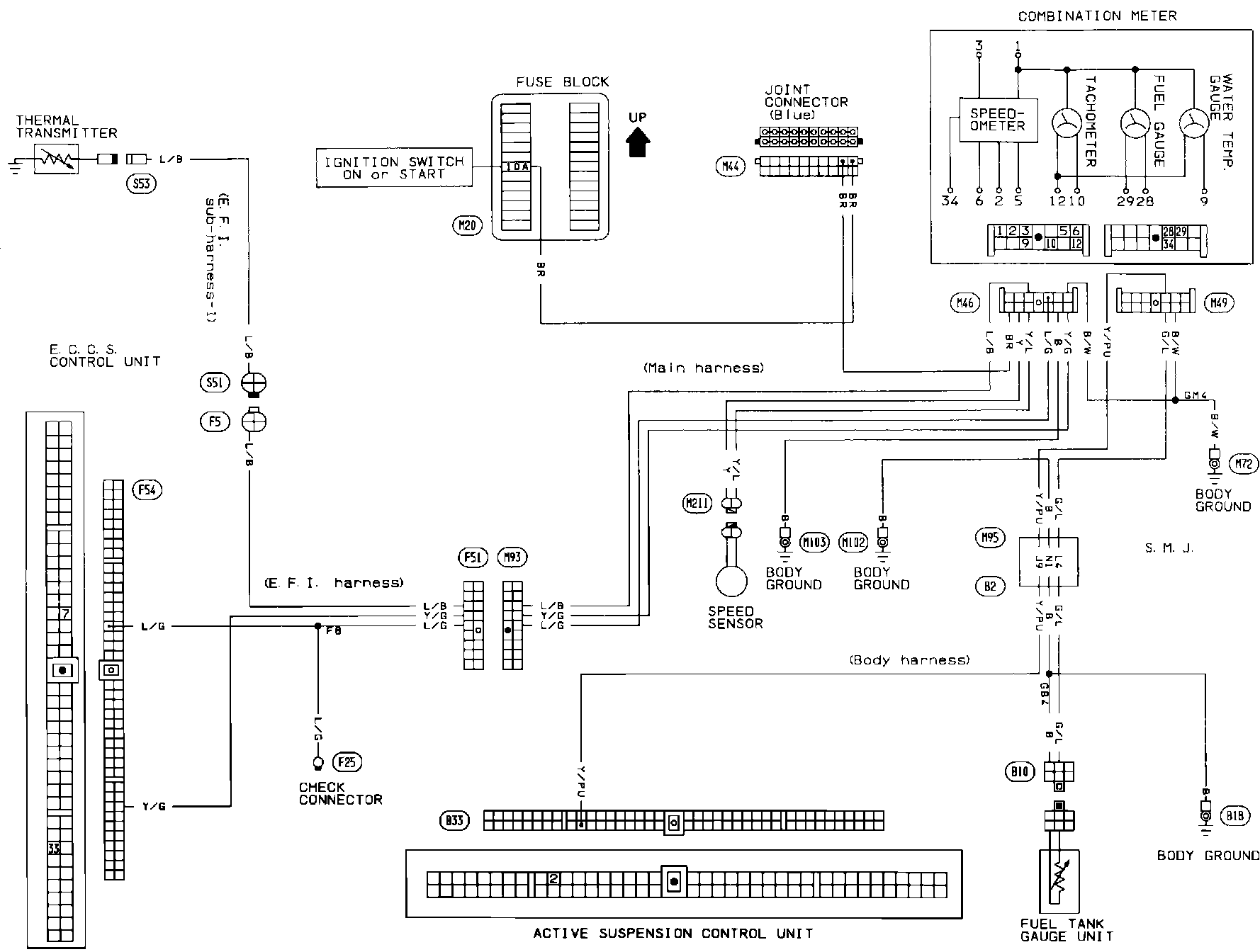

Speedometer, Tachometer, Temp. And Fuel Gauges:
