Power Locks

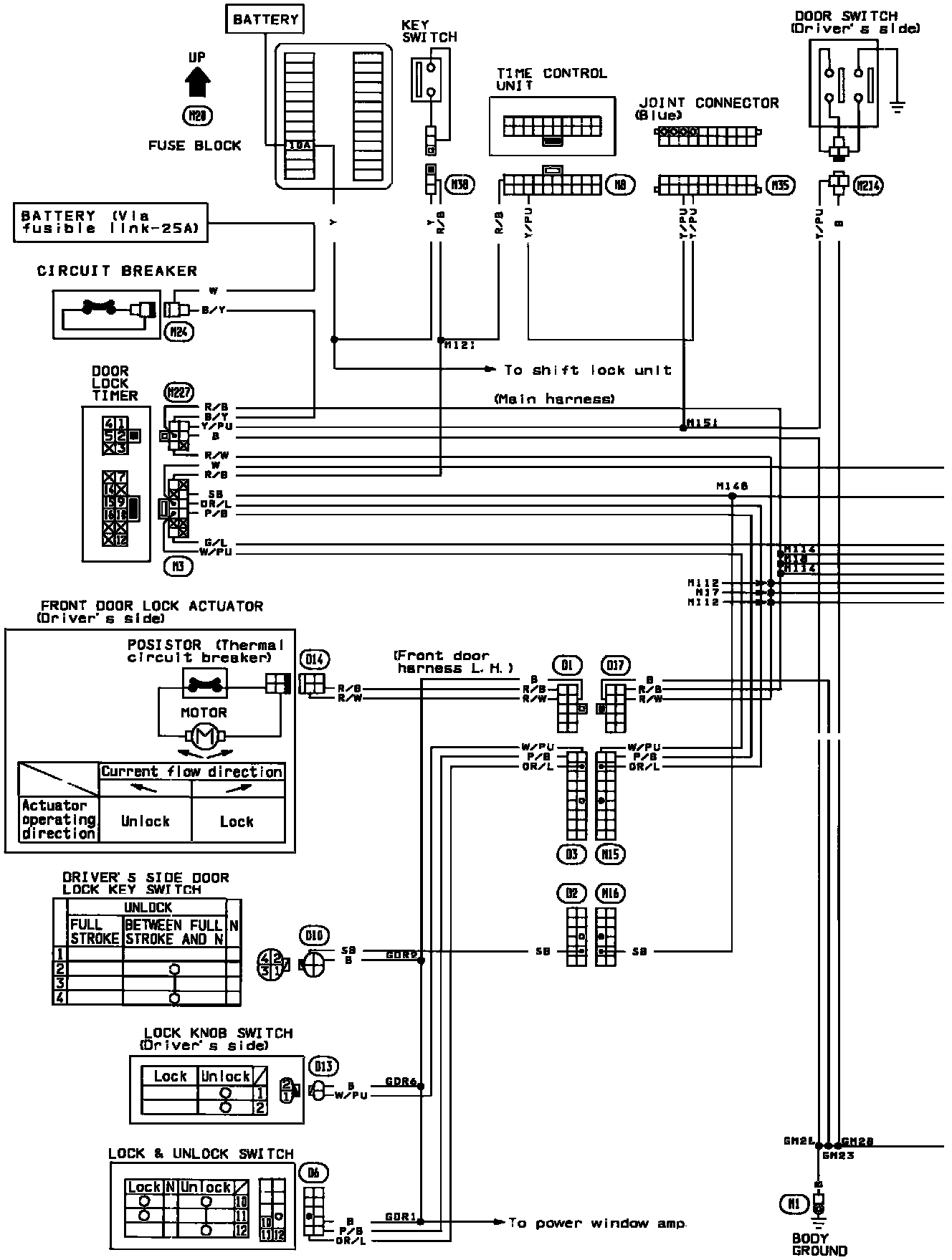

Power Door Lock Wiring Diagram (Part 1 0f 2):

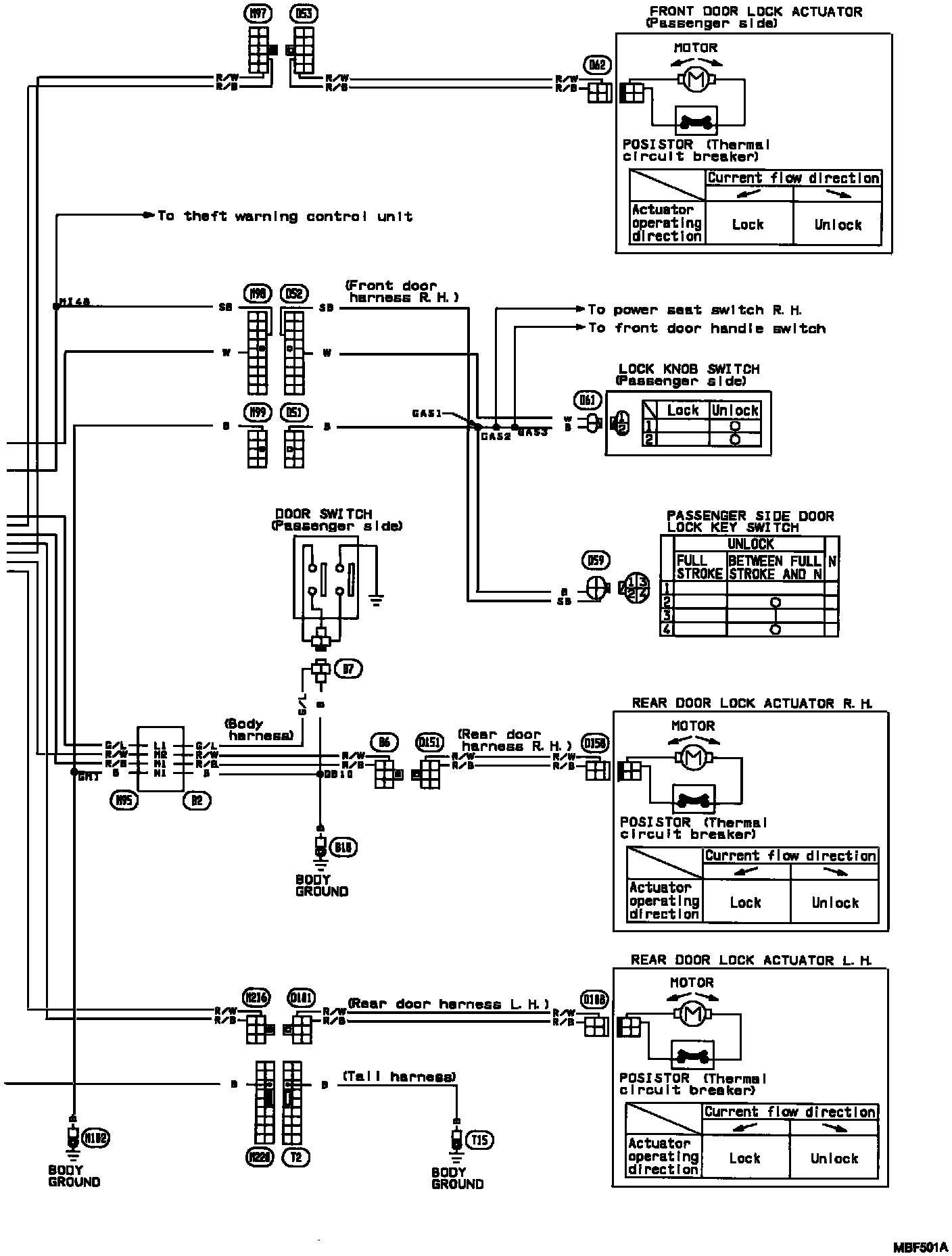

Power Door Lock Wiring Diagram (Part 2 0f 2):
