Illuminated Entry System and Key Illumination
Illuminated Entry System and Key Illumination

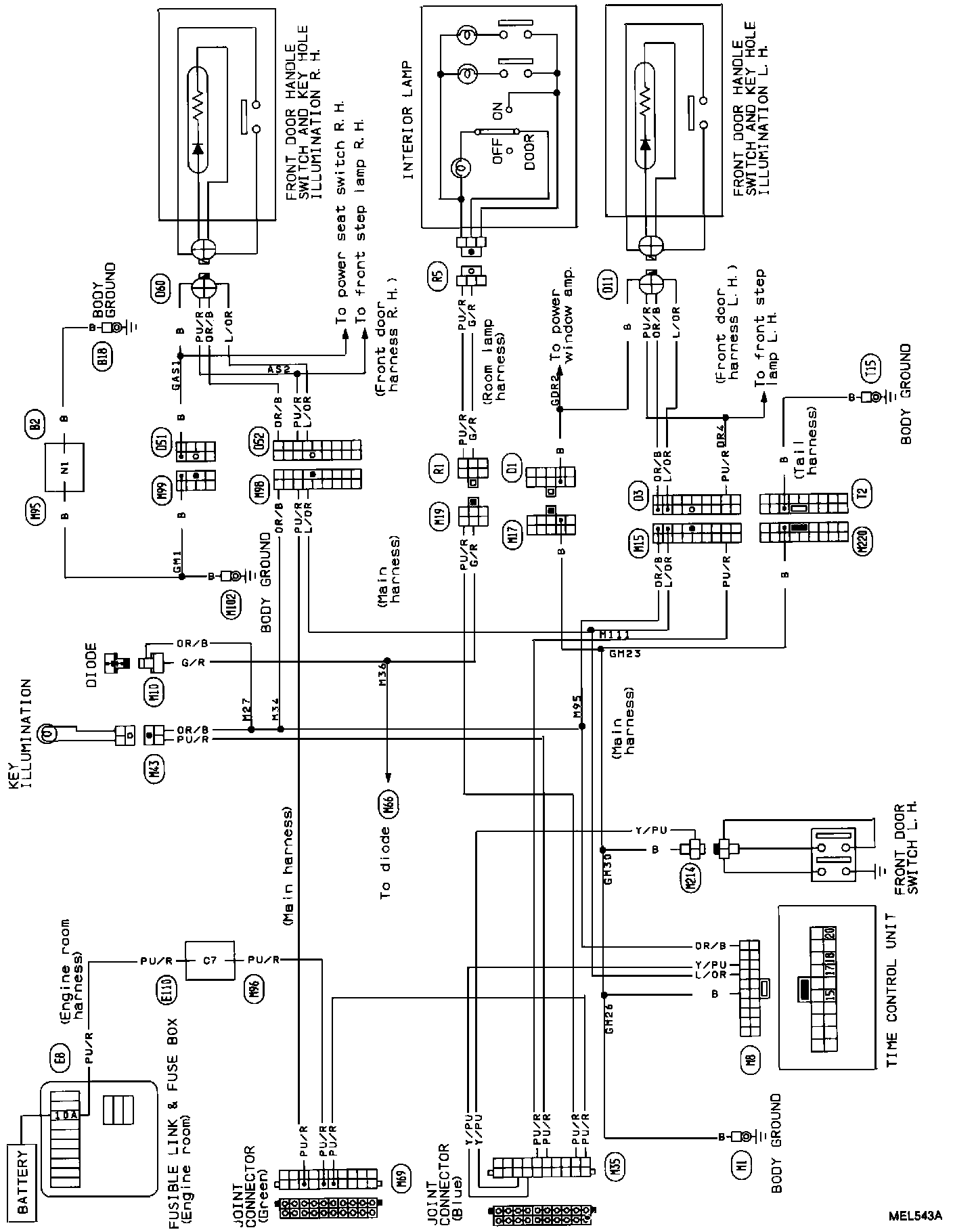

Illuminated Entry System And Key Illumination Wiring Diagram:
