Fuse and Fusible Link Locations

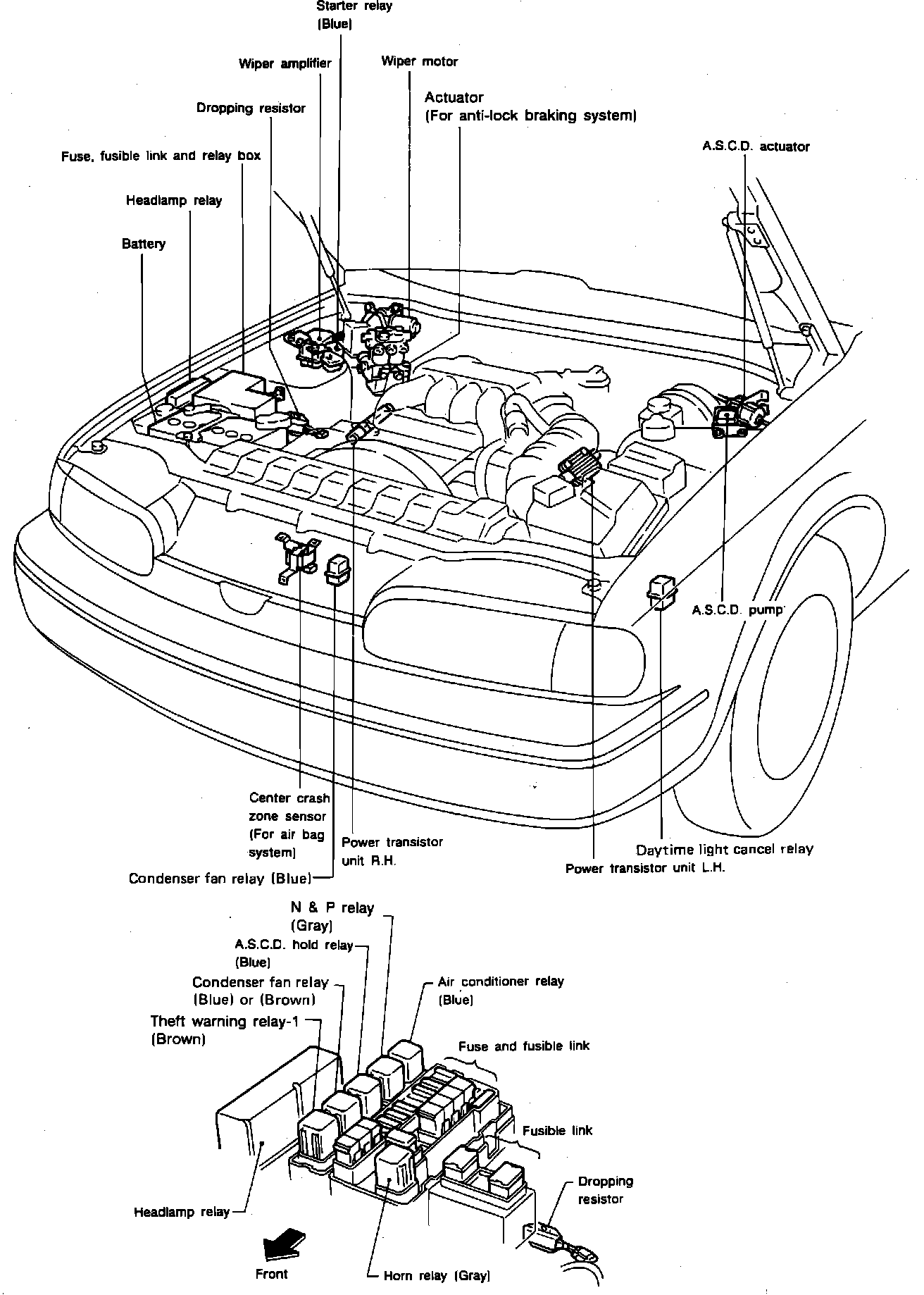

Underhood Views:

FUSE/FUSE LINK UNDERHOOD LOCATIONS

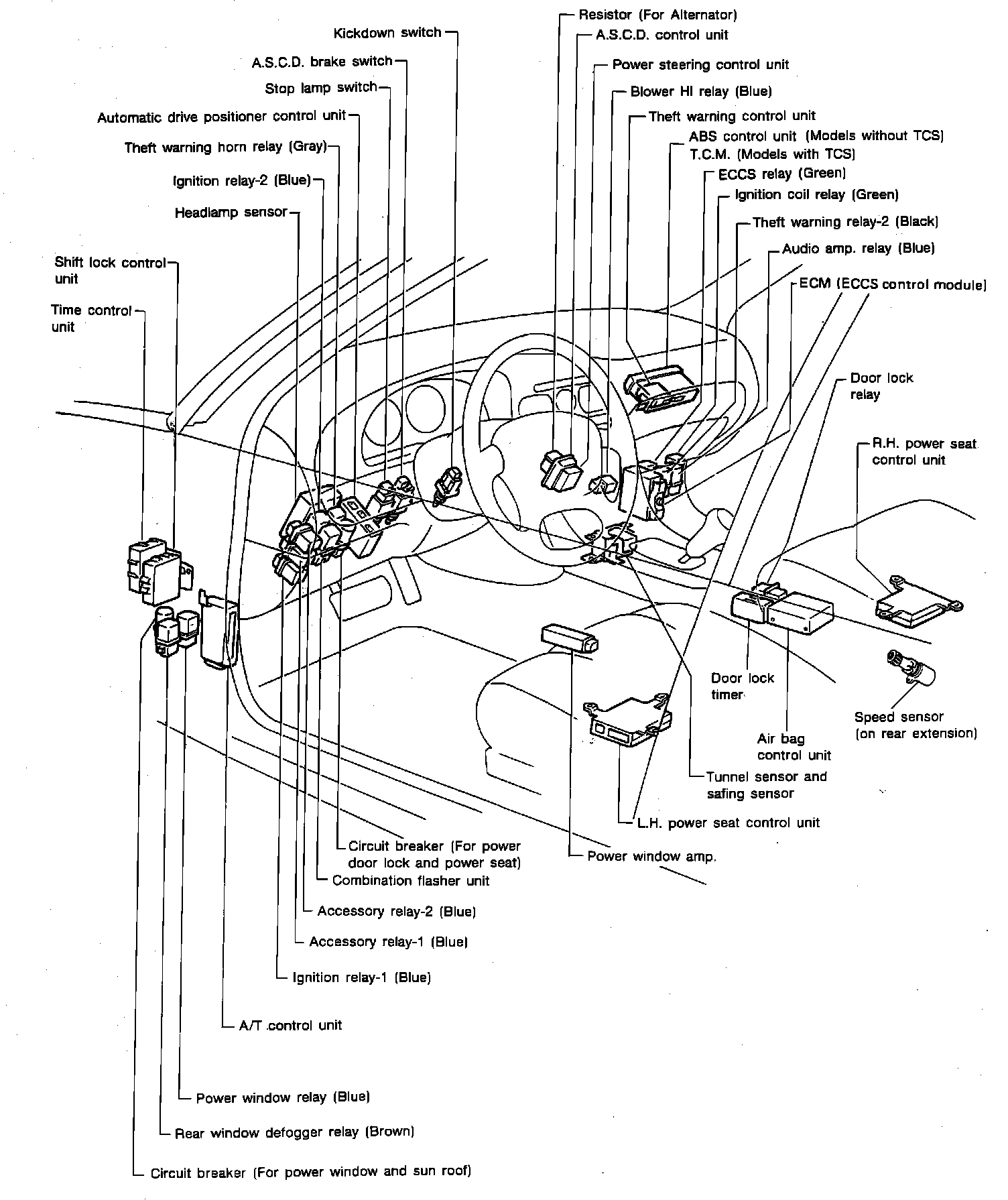

Passenger's Compartment Component Locations:

FUSE PASSENGER COMPARTMENT LOCATIONS
Interior fuse box is in the driver's side dash.
