ECCS Wiring Diagrams

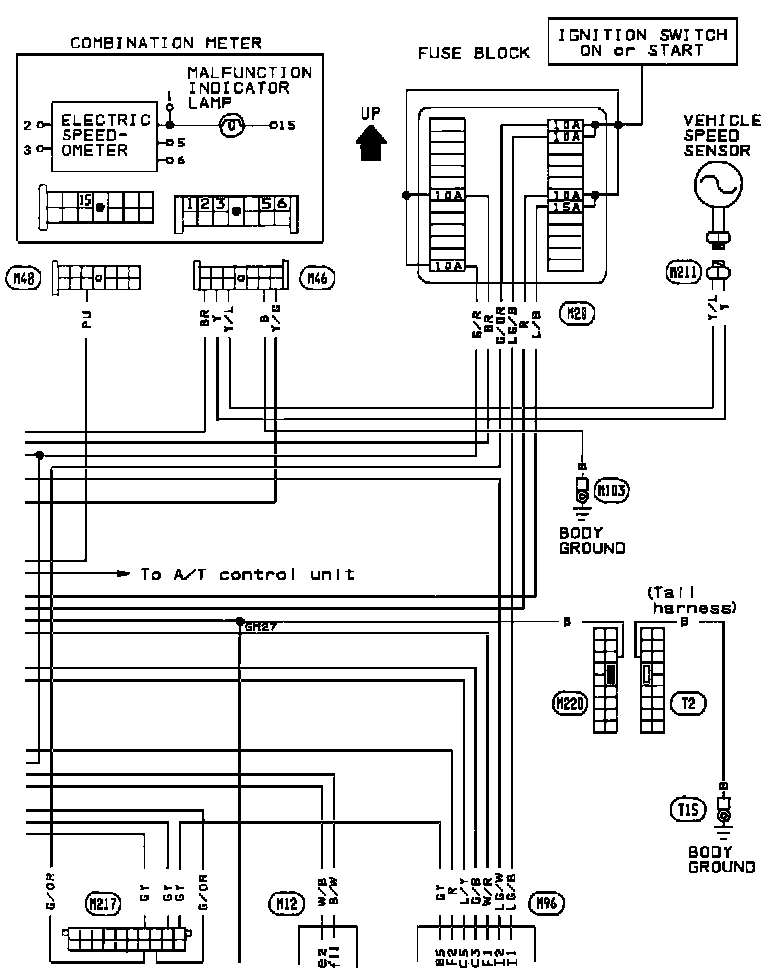

ECCS Wiring Diagram ( Part 1 Of 6 ):

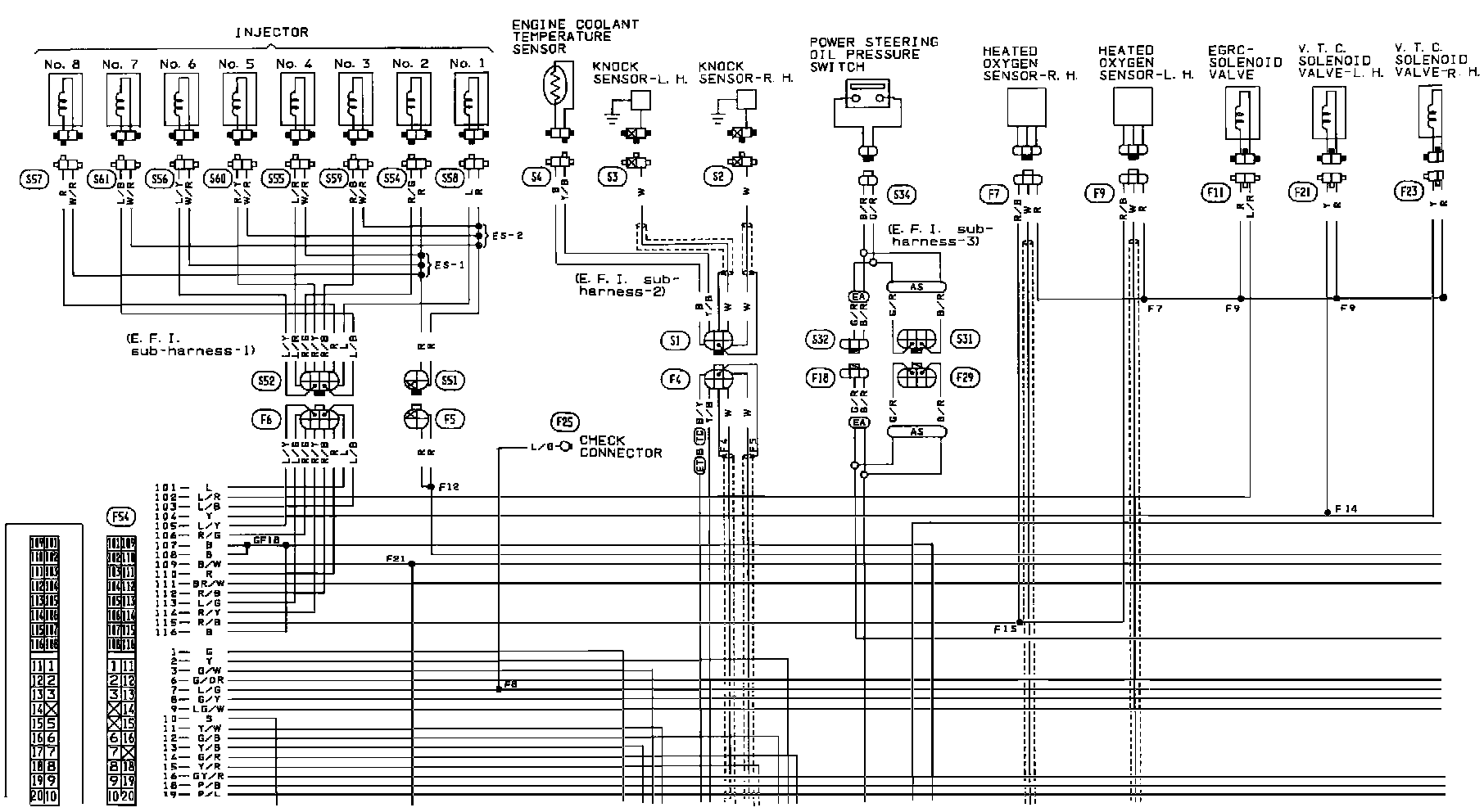

ECCS Wiring Diagram ( Part 2 Of 6 ):




ECCS Wiring Diagram ( Part 3 Of 6 ):




ECCS Wiring Diagram ( Part 4 Of 6 ):




ECCS Wiring Diagram ( Part 5 Of 6 ):




ECCS Wiring Diagram ( Part 6 Of 6 ):
