Main Harness (LH Side)
Main Harness (LH Side)

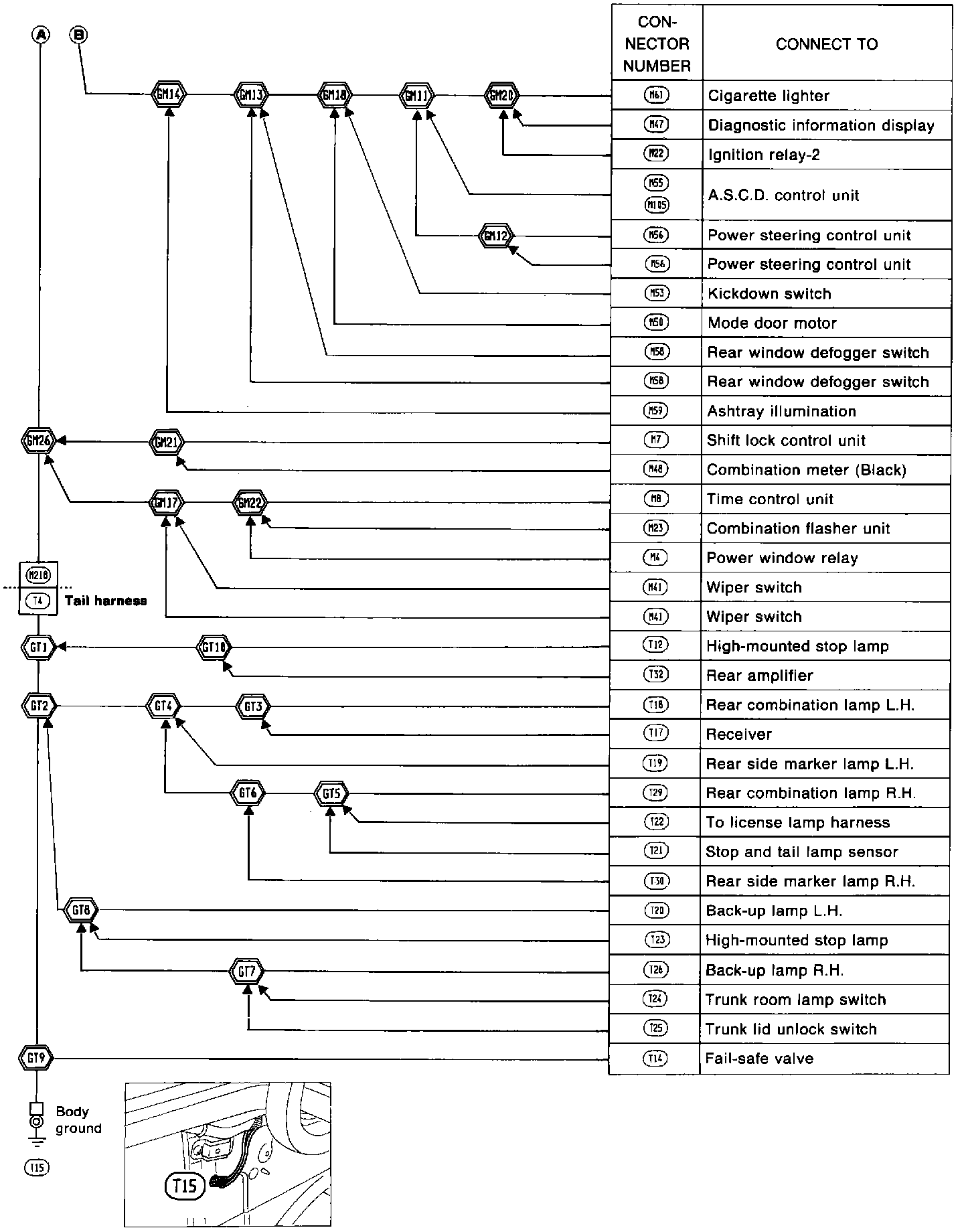

Main Harness (L.H. Side) (Part 1 Of 2):
Main Harness (L.H. Side) (Part 2 Of 2):
