Front Wheels

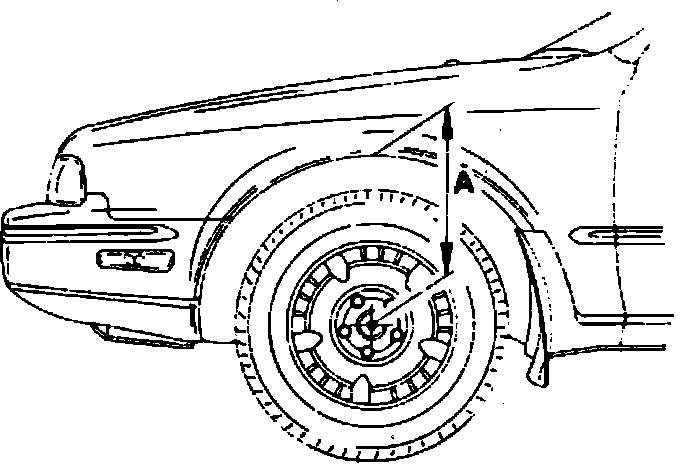

Fig. 50 Front Wheel Ride Height Measurement:

1. Set CONSULT tool to ``Work Support Mode.'' Touch ``VEHICLE HEIGHT ADJ.'' so that ``1. FRONT WHL HEIGHT ADJ.'' appears on display.
2. Ensure engine is idling, gear selector lever is set to ``P,'' parking brake is OFF, foot brake of OFF and vehicle is on a level surface.
3. Touch START on CONSULT display and wait until CONSULT is ready for front wheel height adjustment.
4. Set height control switch (located on center console) from N to H, and then return to N.
5. Move vehicle seven to ten feet back and forth so it settles down.
6. Measure distance ``A'' between center of one front wheel and lower end of fender molding. Fig. 50. Measure other wheel and determine difference between both measurements.
7. Compare measured distances with specifications below:
a. Distance ``A'' is 14.76-15.55 inches.
b. Difference between each wheel measurement is 0.39 inch or less.
8. If either distance is outside of specifications, loosen bolts on affected vehicle height sensor and rotate height sensor to adjust vehicle height.
9. Turning left vehicle height sensor counterclockwise (when viewed from front side) by 1 graduation (5°) increases vehicle height 0.55 inch. Turning right vehicle height sensor 1 graduation clockwise increases vehicle height 0.55 inch.
10. After height adjustment, torque sensor bolts to 3.6-5.1 ft. lbs.
