Antenna: Testing and Inspection

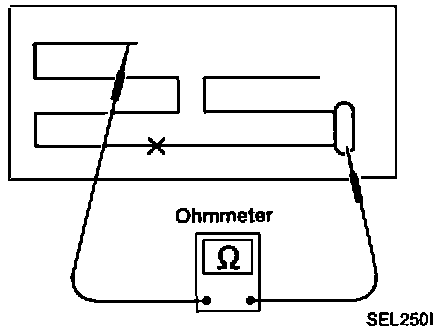

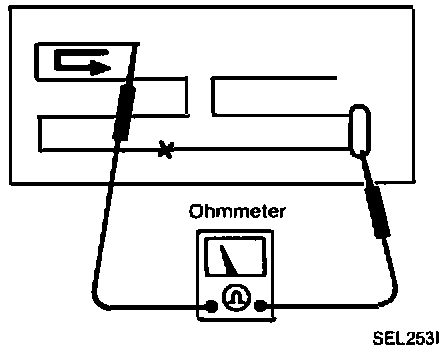

1. Attach probe circuit tester (in ohm range) to antenna terminal on each side.

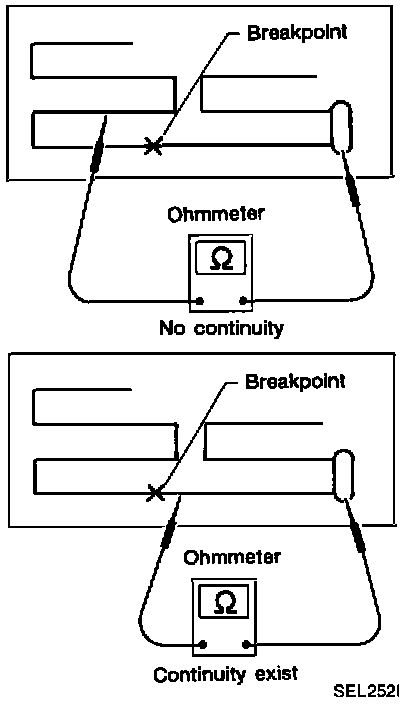

2. If an element is broken, no continuity will exist.

3. To locate broken point, move probe to left and right along element to determine point where tester needle swings abruptly.
