Body and Frame: Description and Operation

Clip and Fastener

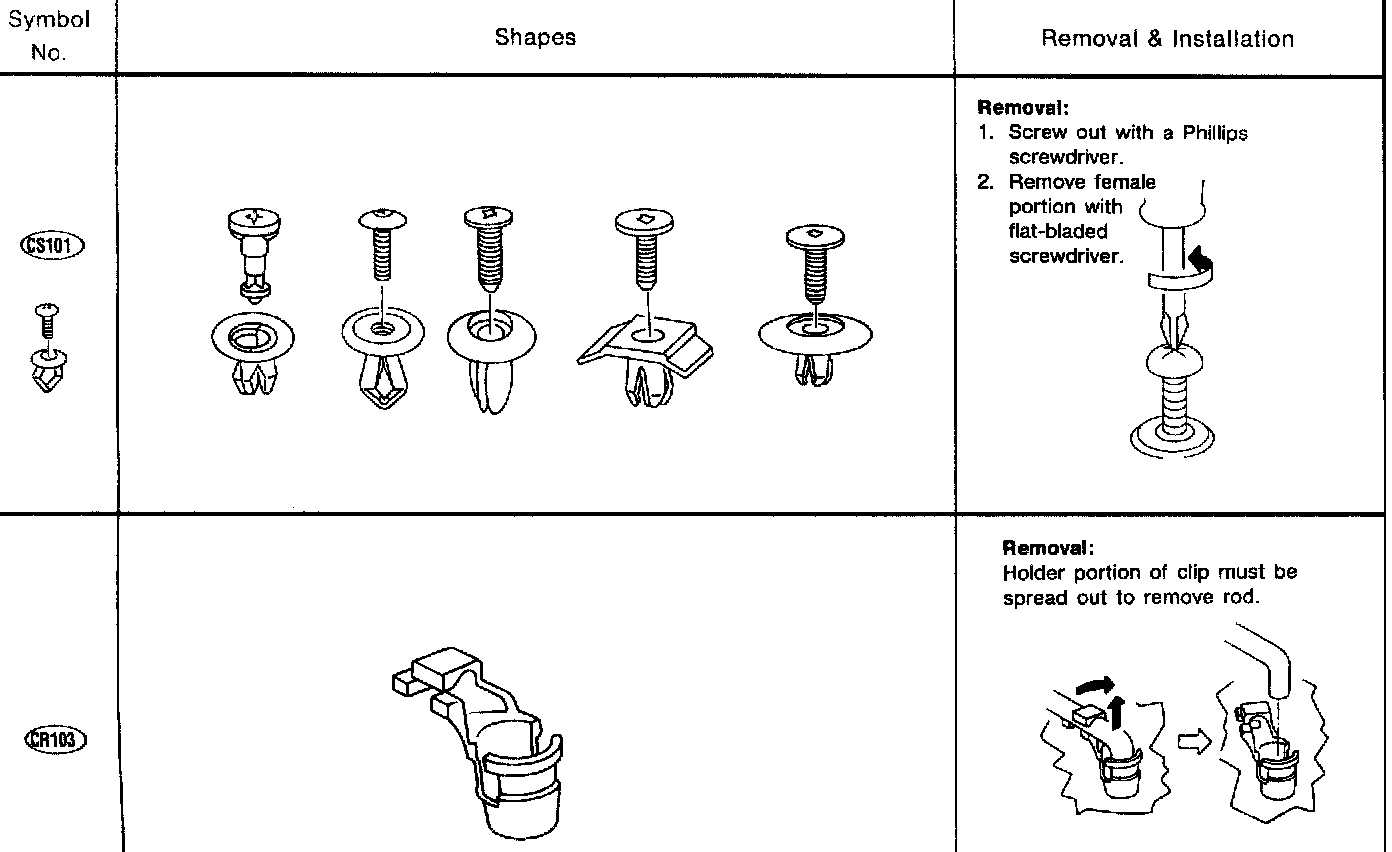

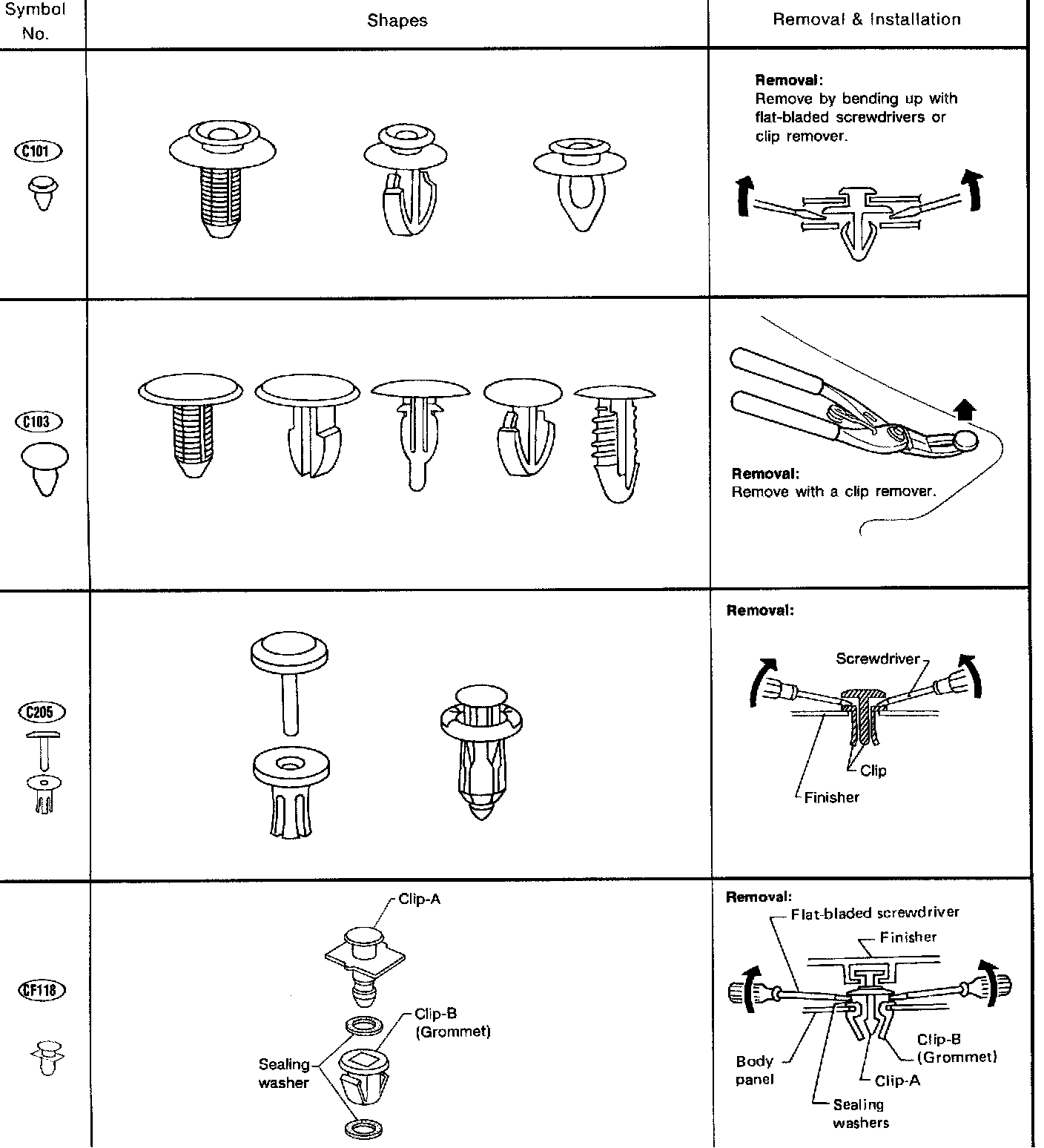

^ Clips and fasteners in body and frame correspond to the following numbers and symbols.
^ Replace any clips and/or fasteners which are damaged during removal or installation.
