CONSULT-II Inspection Procedure

Consult:

1. Turn off ignition switch.

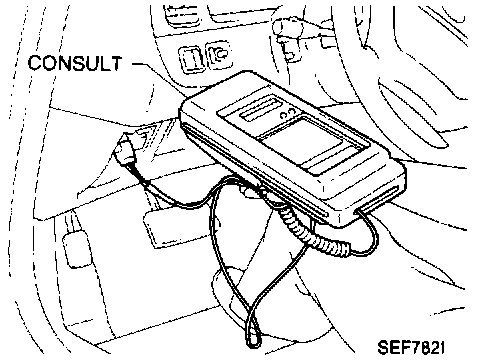

2. Connect "CONSULT" to diagnostic connector.

Consult:

3. Turn on ignition switch.
4. Turn on ASCD main switch
5. Touch START (on CONSULT display).
6. Touch ASCD

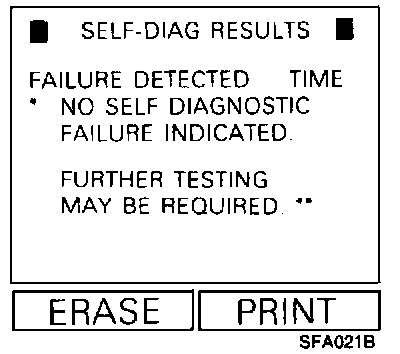

7. Touch SELF-DIAG RESULTS.

Data Monitor:

^ Self-diagnostic results are shown on display.

Start:

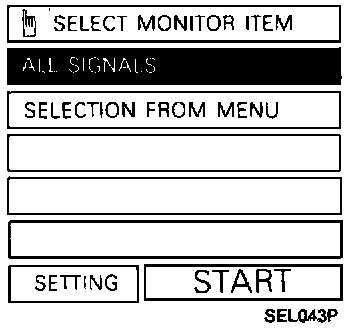

8. Touch DATA MONITOR.

Start:

^ Touch START.

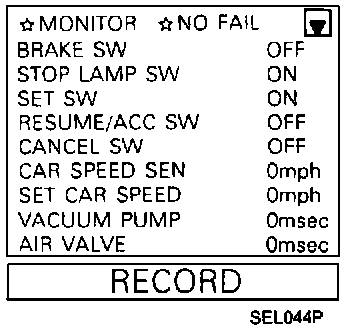

^ Data monitor results are shown on display.
