Full Active Suspension System

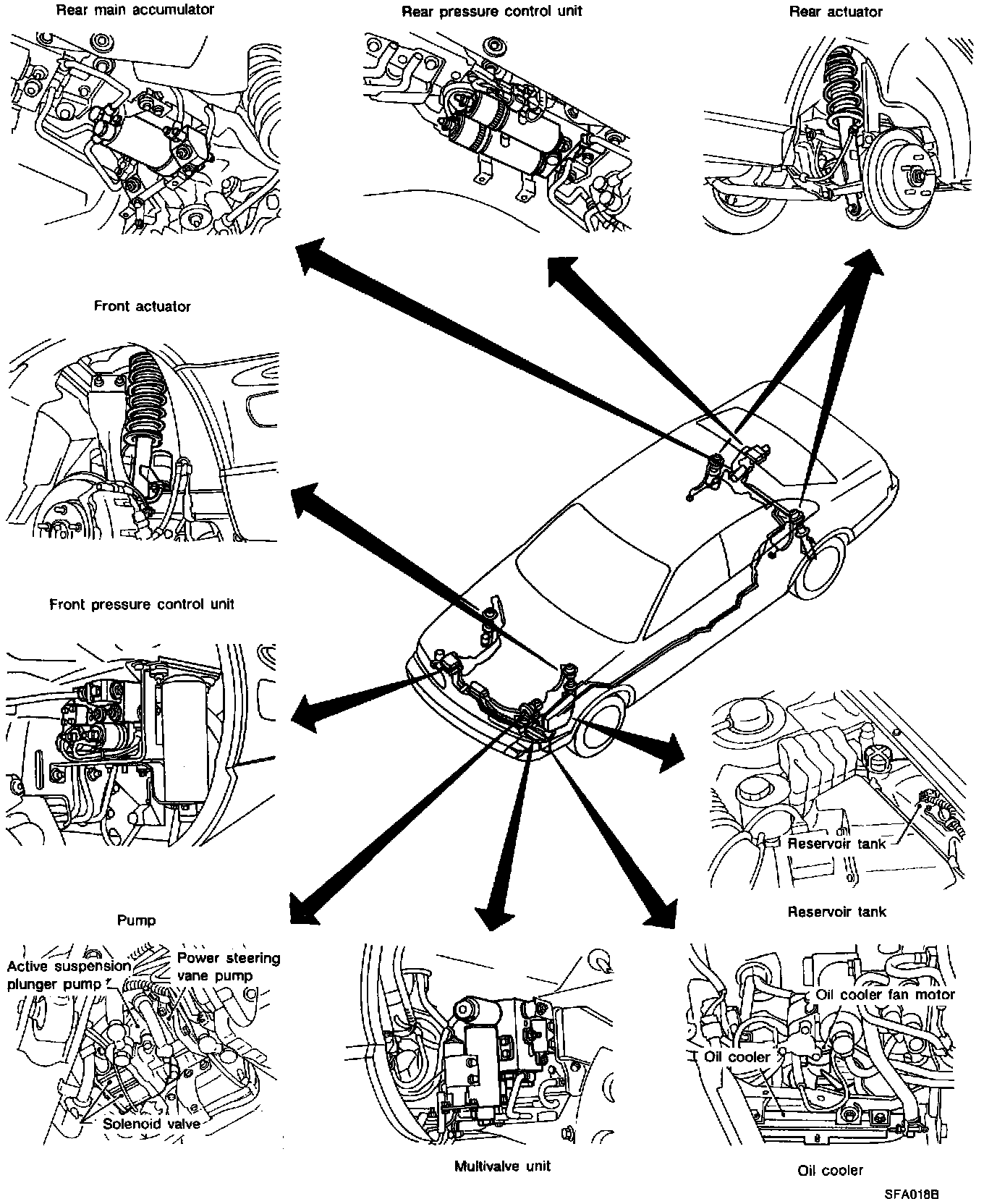

Full Active Suspension System: Component Parts And Harness Connector:

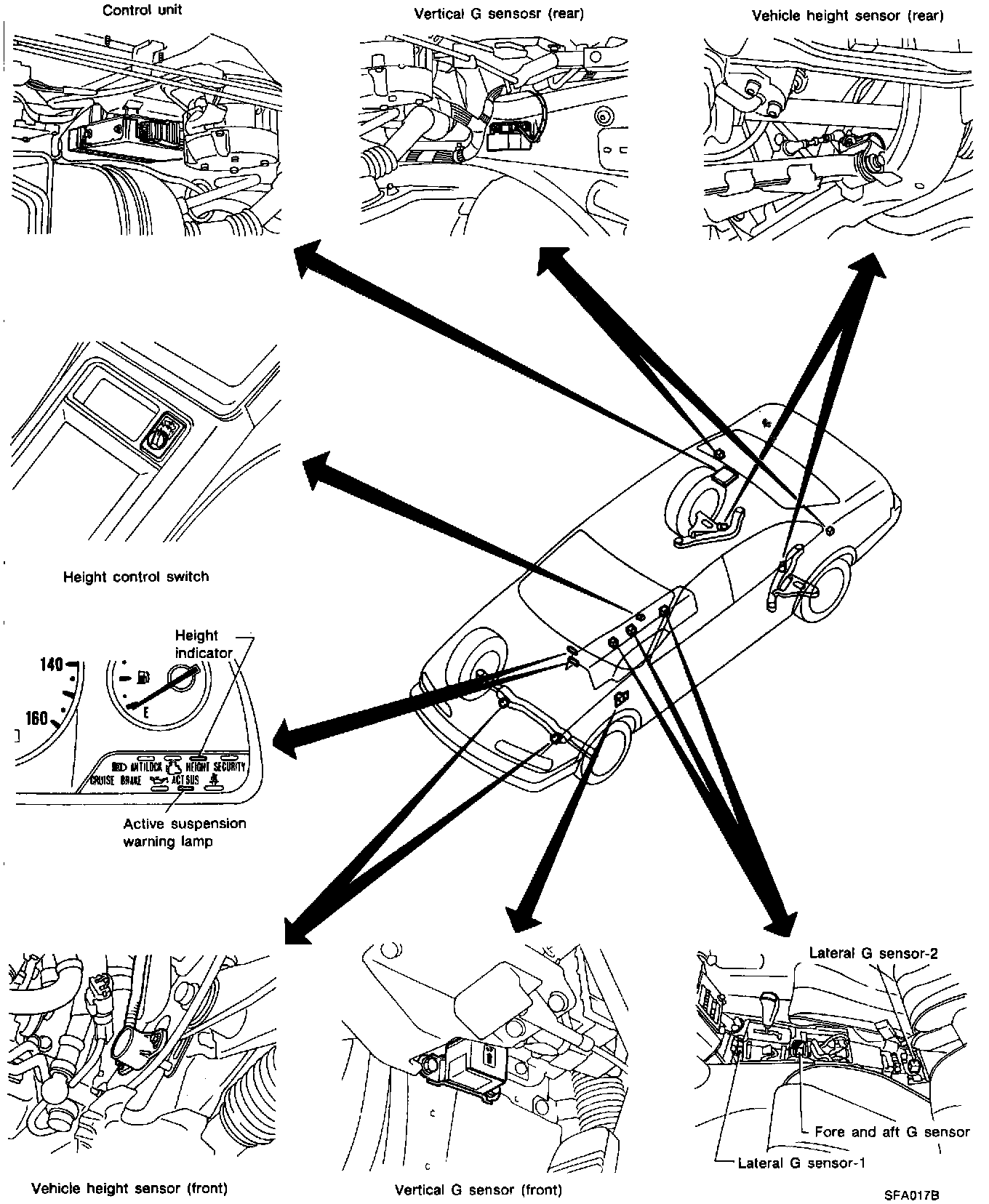

Full Active Suspension System: Component Parts And Harness Connector:
