System Diagram

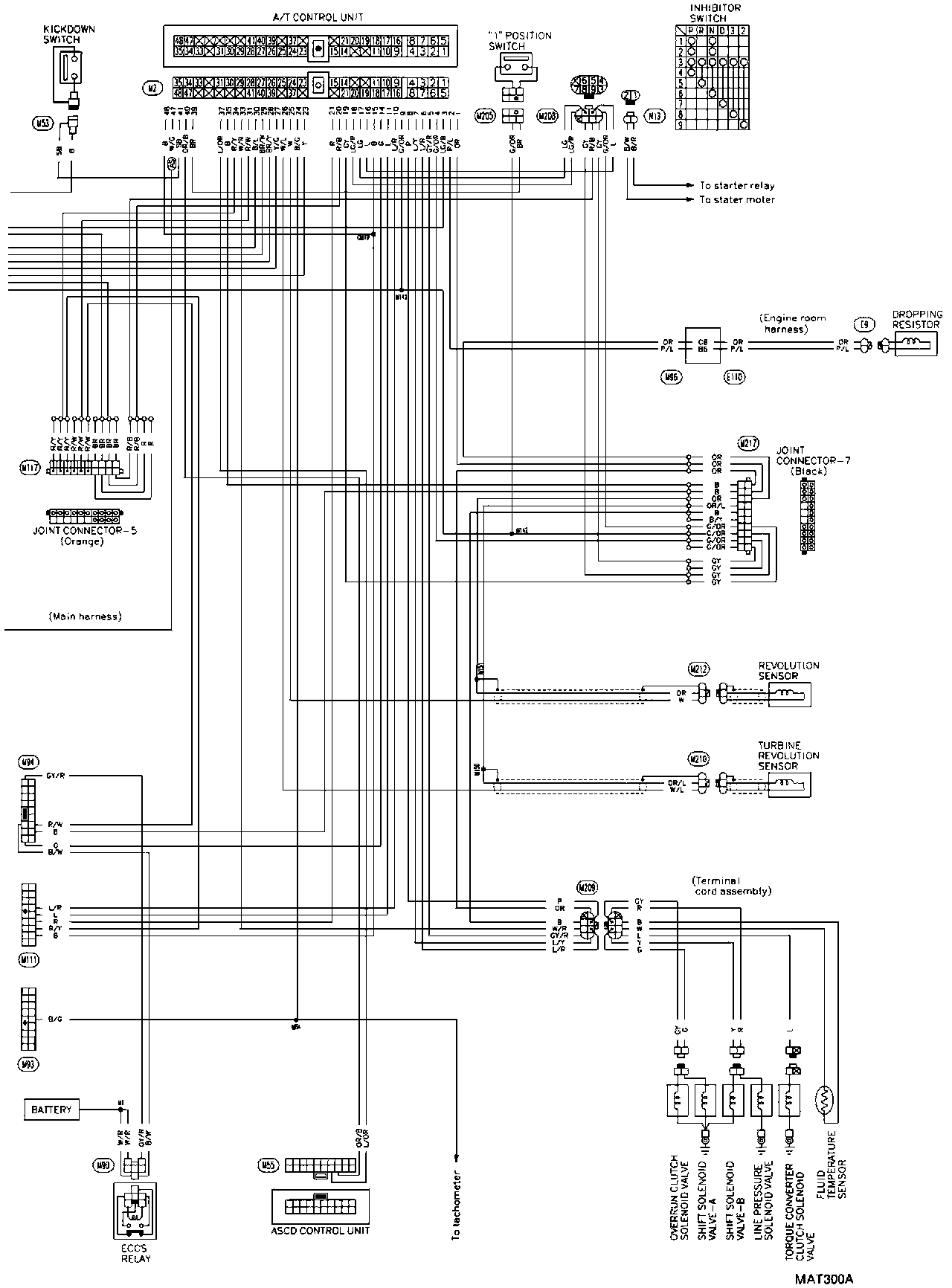

Trouble Diagnoses: Wiring Diagram (Part 1 Of 2):



Trouble Diagnoses: Wiring Diagram (Part 2 Of 2):
