Home >> Infiniti >> 1994 >> Q45 V8-4494cc 4.5L DOHC (VH45) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Wiring Diagram For USA

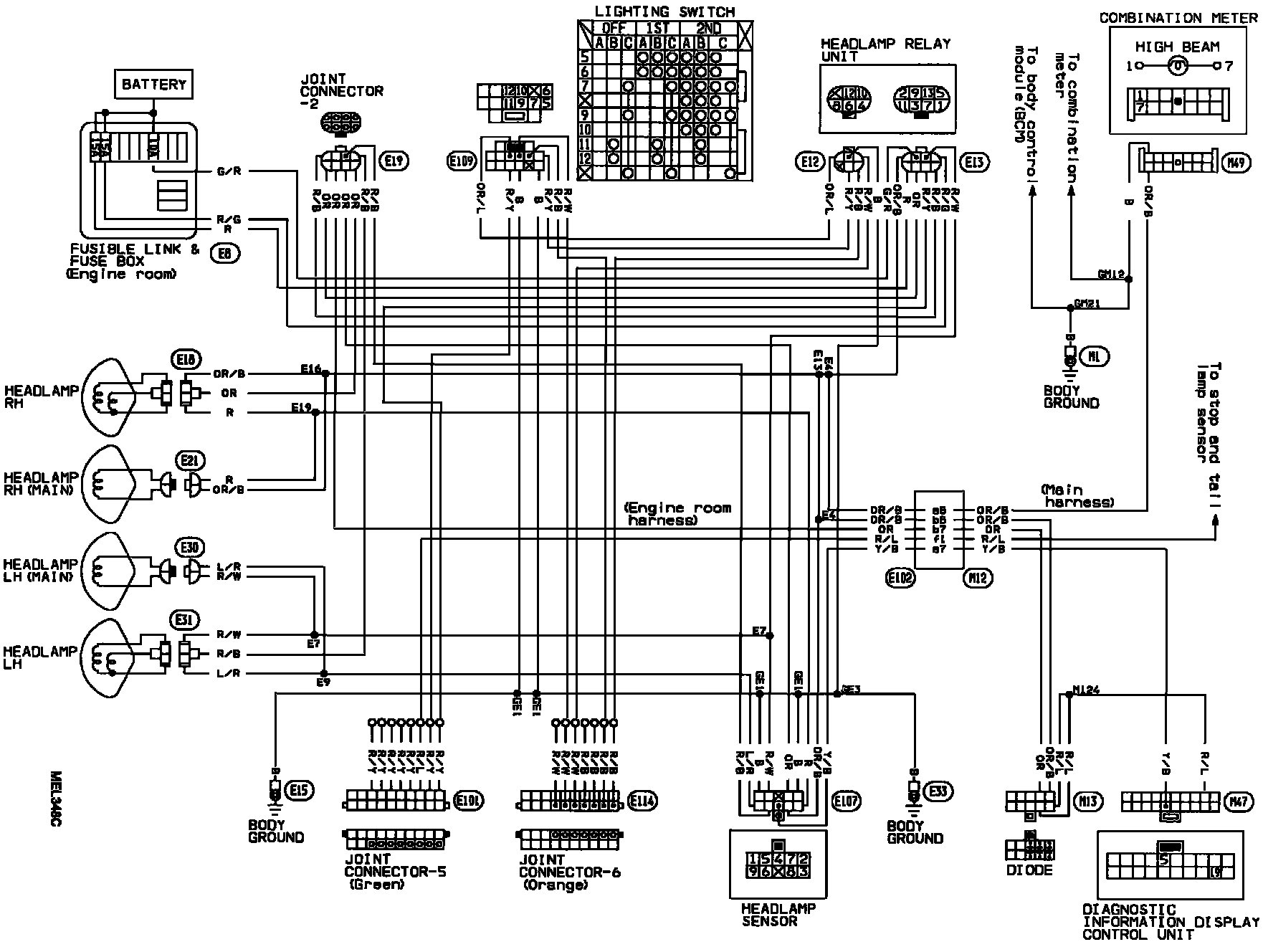

Wiring Diagram For USA

Wiring Diagram For U.S.A.:
