EGR Temperature Sensor
EGR Temperature Sensor

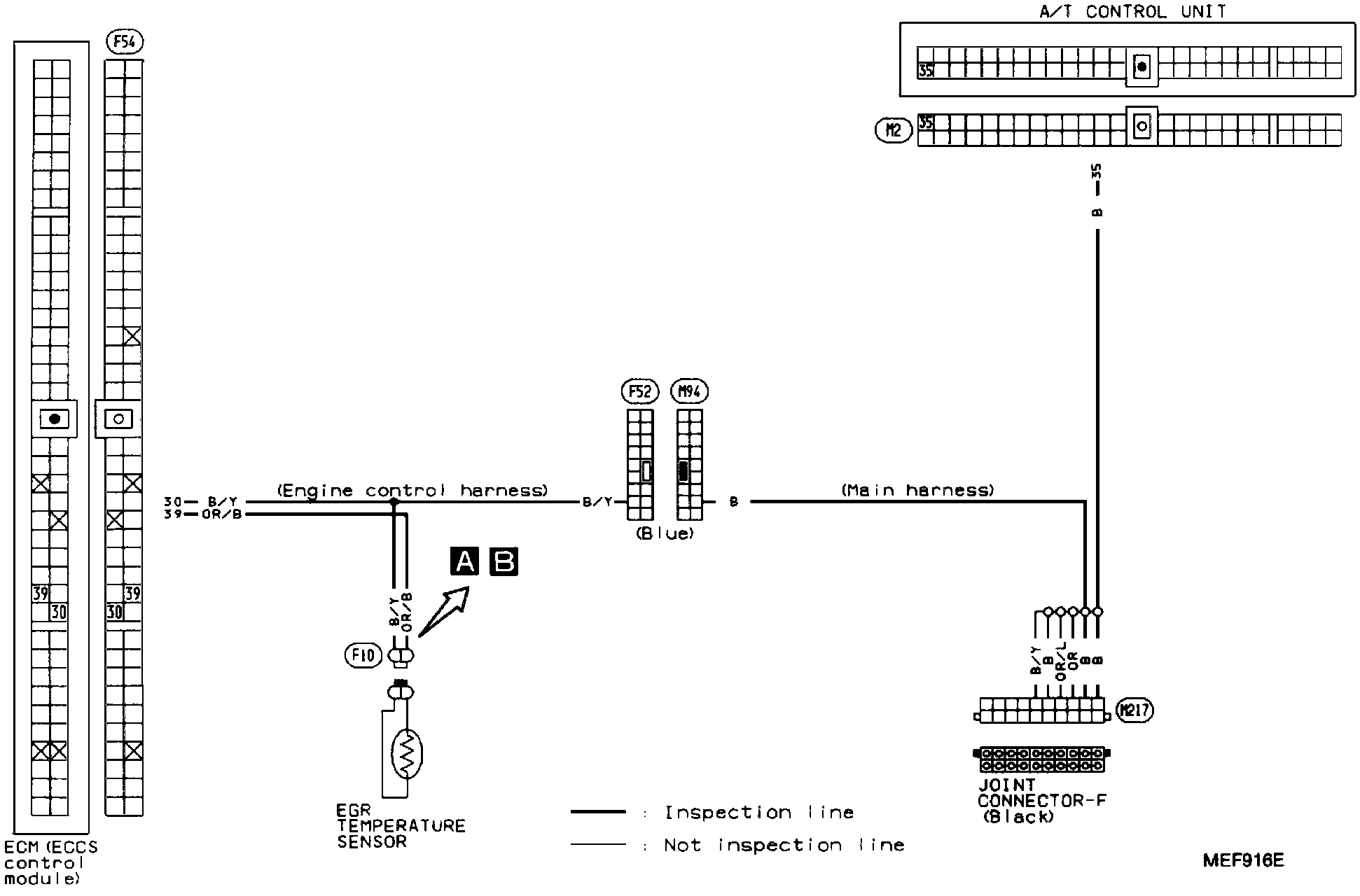

EGR Temperature Sensor (Malfunction Indicator Lamp Item):
