Home
>>
Infiniti
>>
1994
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Fuel Injector
Fuel Injector

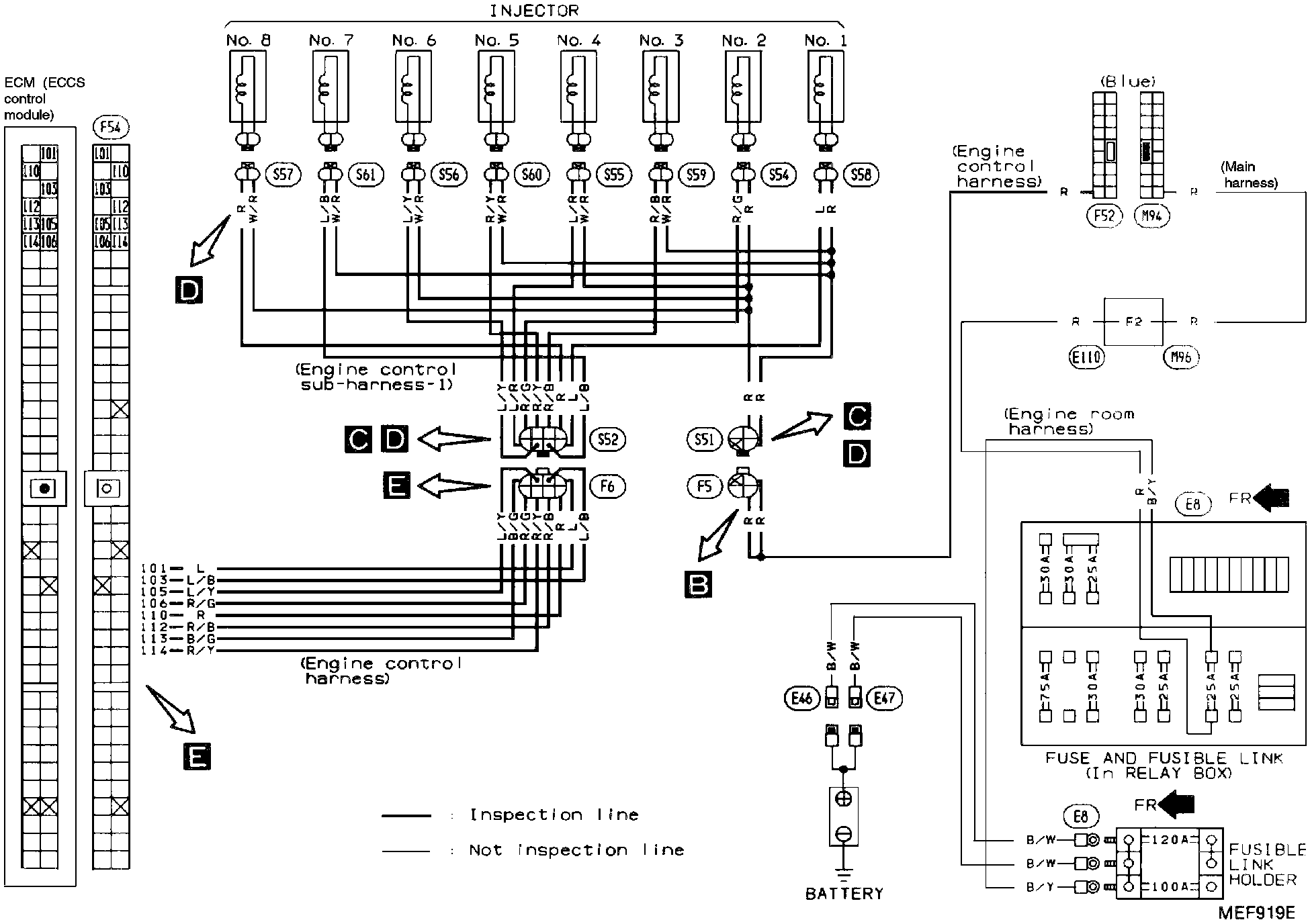

Injector (Malfunction Indicator Lamp Item):
