Engine Control Sub-Harness
Engine Control Sub-Harness

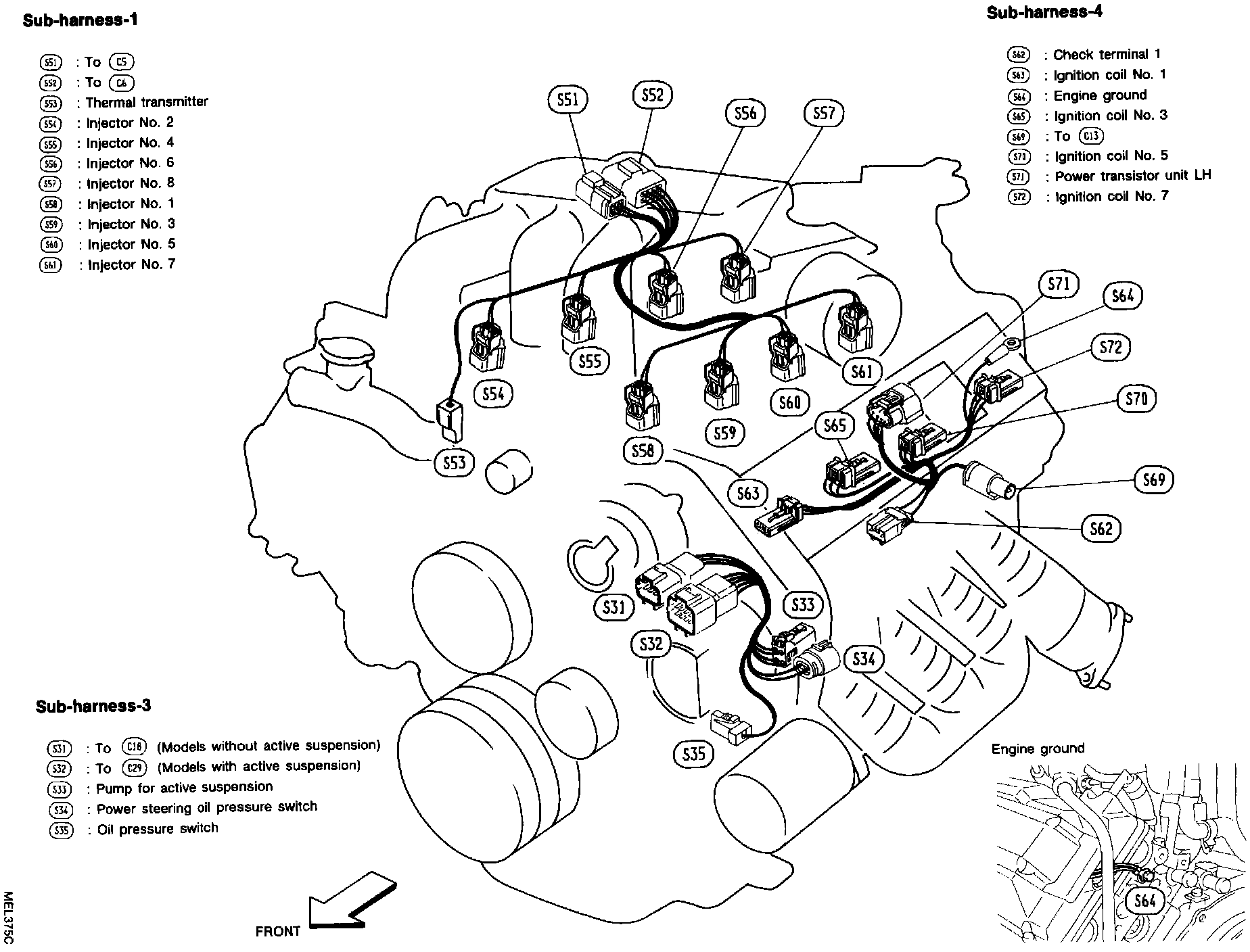

Engine Control Sub-Harness (Part 1 Of 2):

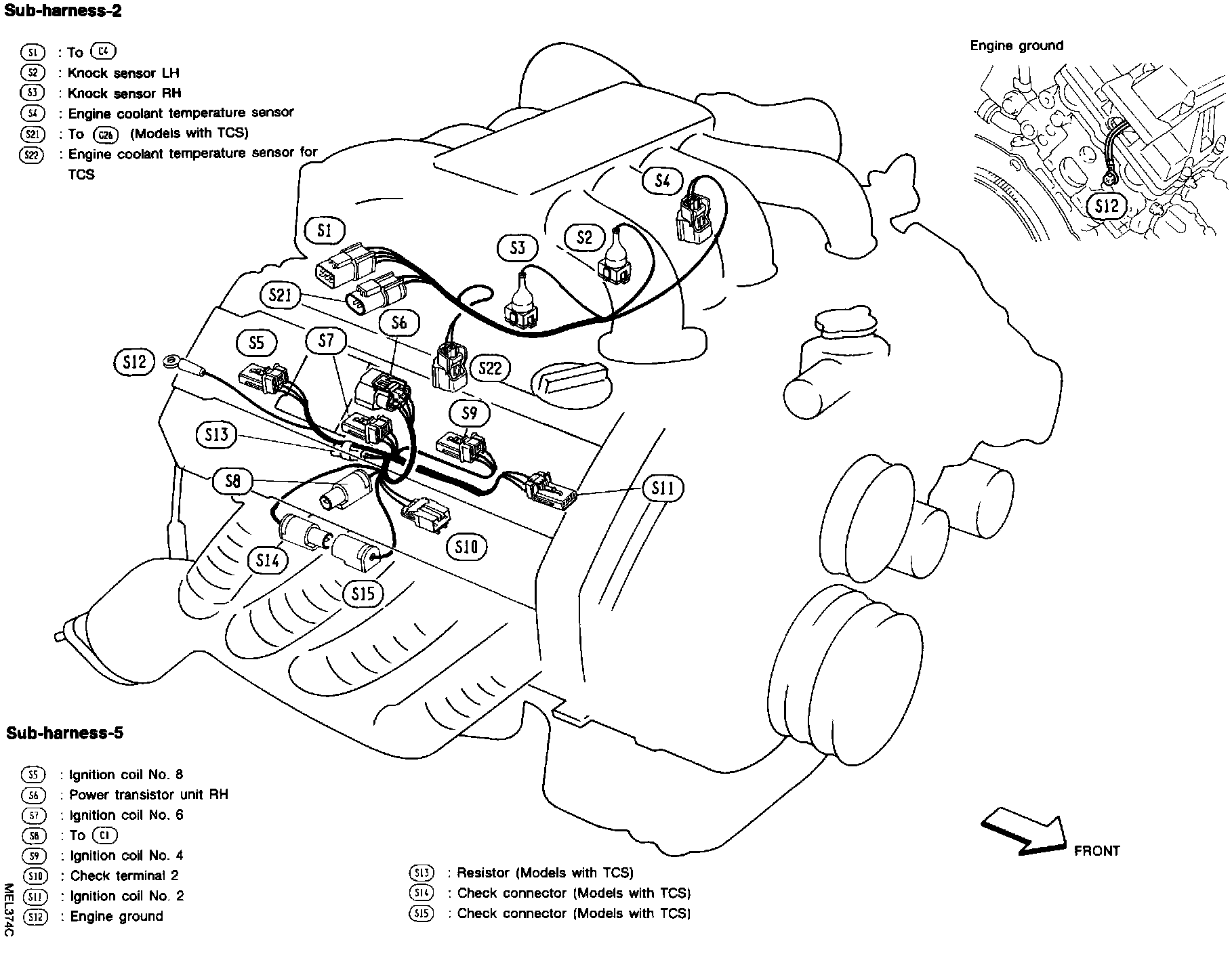

Engine Control Sub-Harness (Part 2 Of 2):
