Wiring Diagram

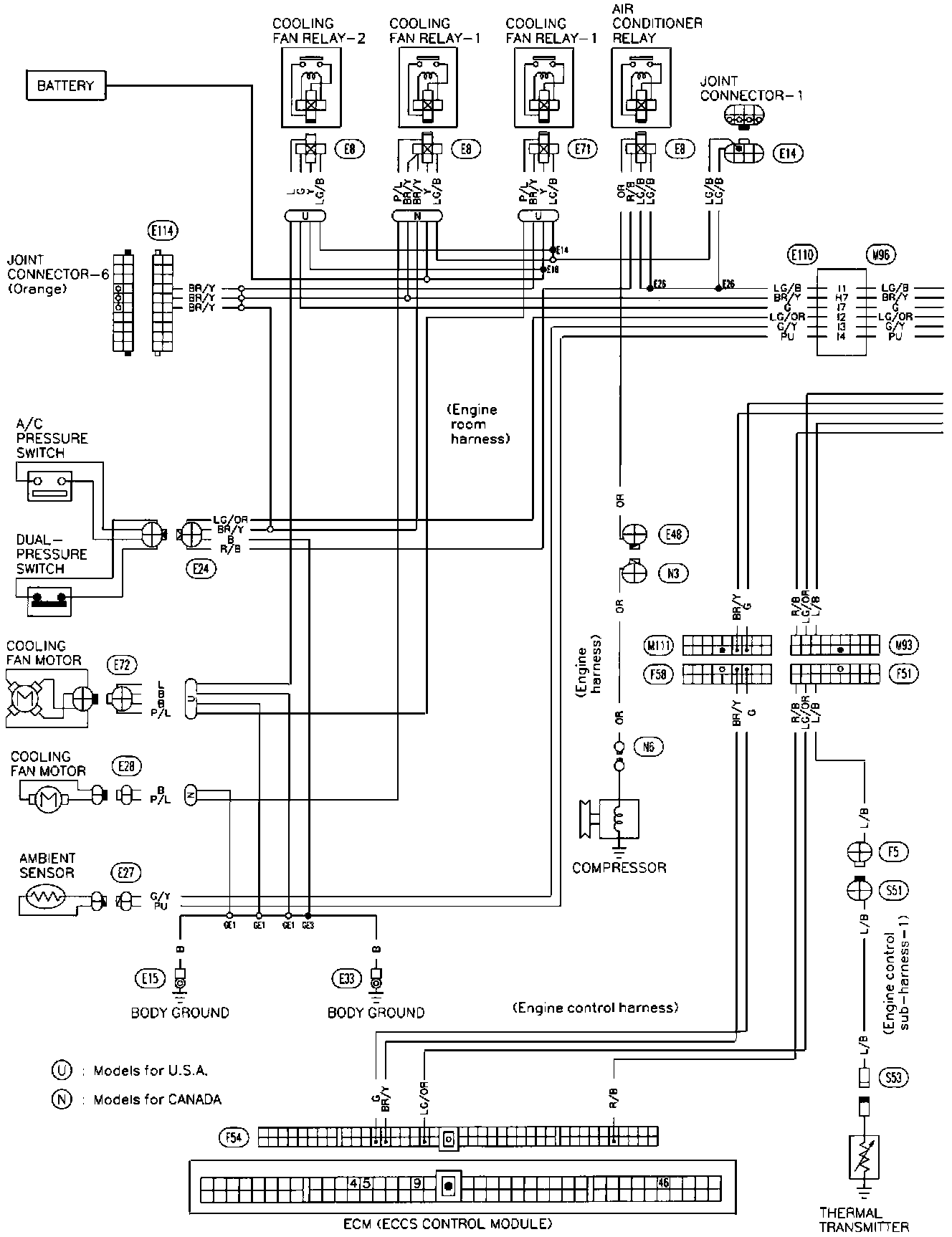

Trouble Diagnoses - Wiring Diagram (Part 1 Of 2):

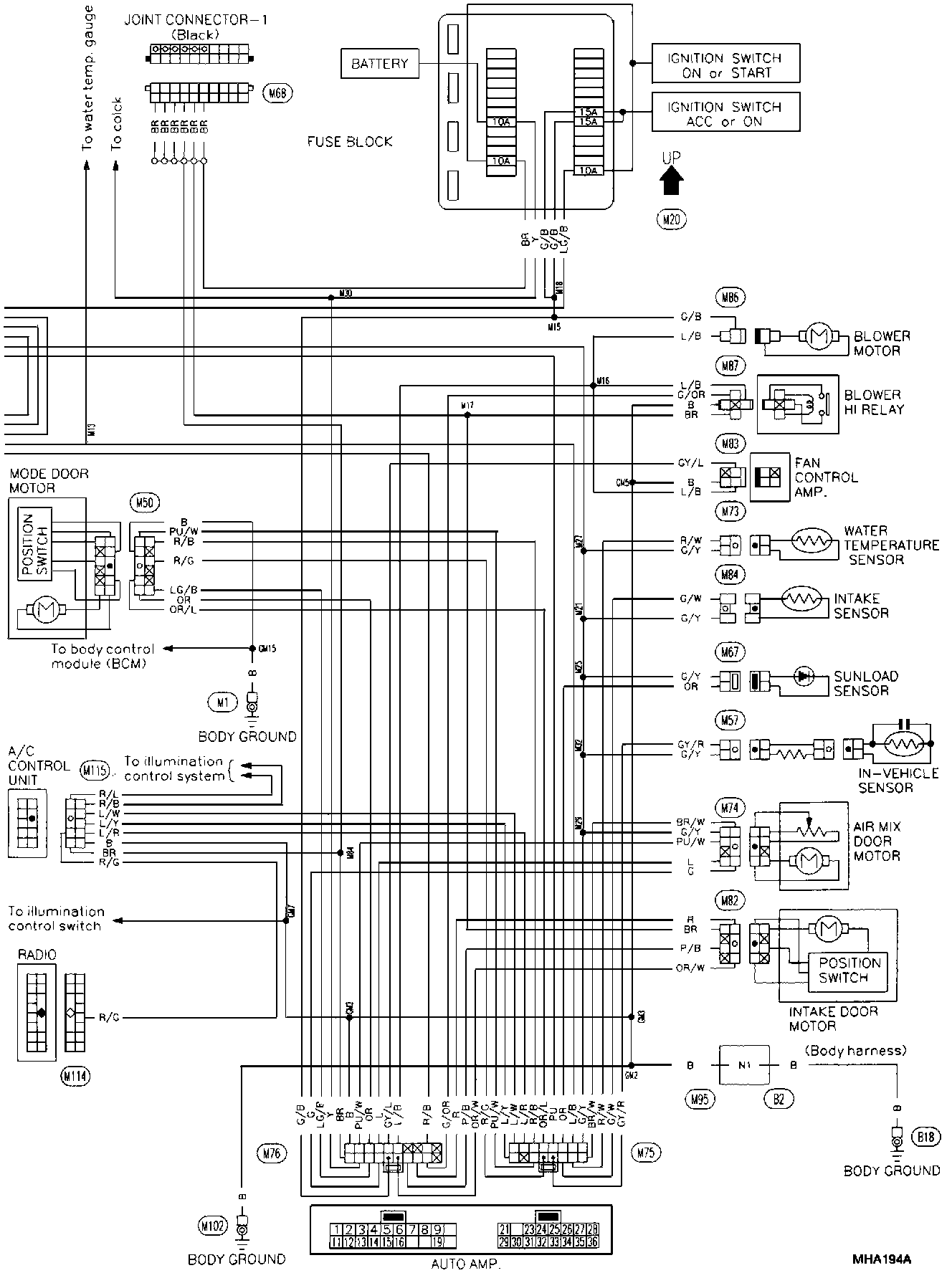

Trouble Diagnoses - Wiring Diagram (Part 2 Of 2):
