Low Beam

Low Beam:

1. Open the hood.

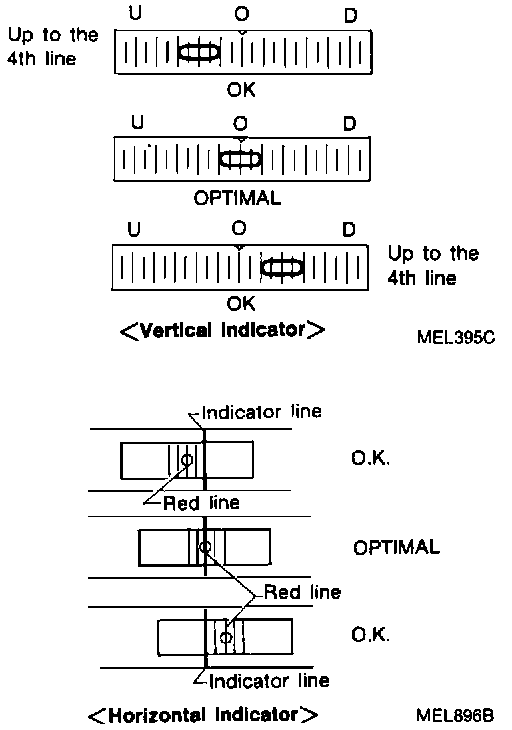

2. Adjust the vertical indicator by turning the adjusting screw (vertical direction).

The bubble in the gauge should be centered on the "o" mark as shown in the illustration.


3. Adjust the horizontal indicator by turning the adjusting screw. (horizontal direction)

The inner red line with the "o" mark should align with the indicator line.
