Tail Lamp: Testing and Inspection

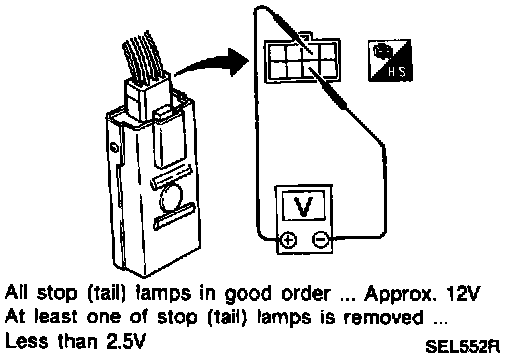

Stop And Tail Lamp Sensor Check:

^ Before checking, ensure that bulbs meet specifications.

STOP LAMP
1. Start engine.
2. Turn stop lamp switch on.

TAIL LAMP
1. Start engine.
2. Turn lighting switch on.
