Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
1994
>>
Q45 V8-4494cc 4.5L DOHC (VH45)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Main Harness
>>
LH Side
LH Side

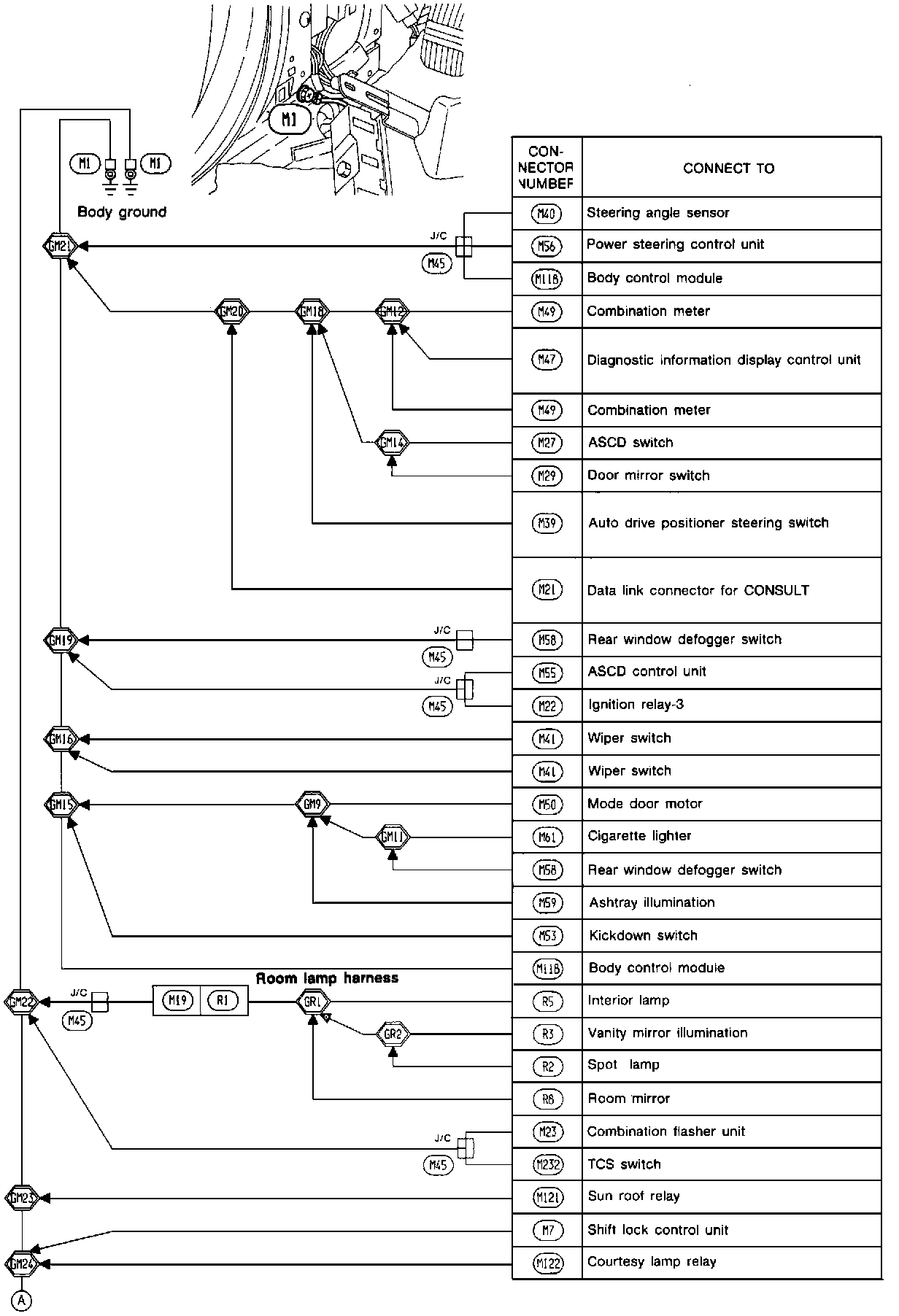

Main Harness (LH Side) (Part 1 Of 3):

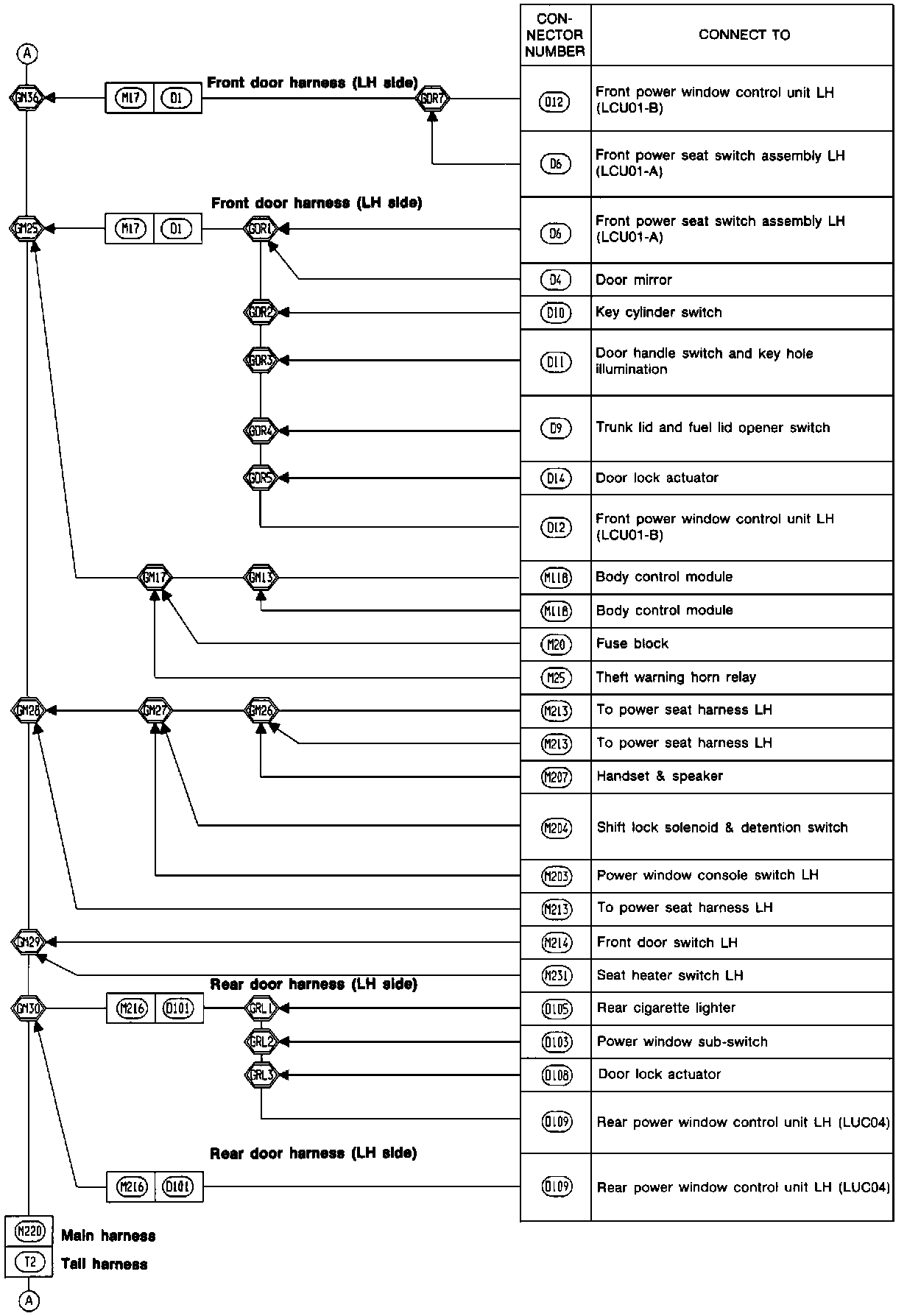

Main Harness (LH Side) (Part 2 Of 3):

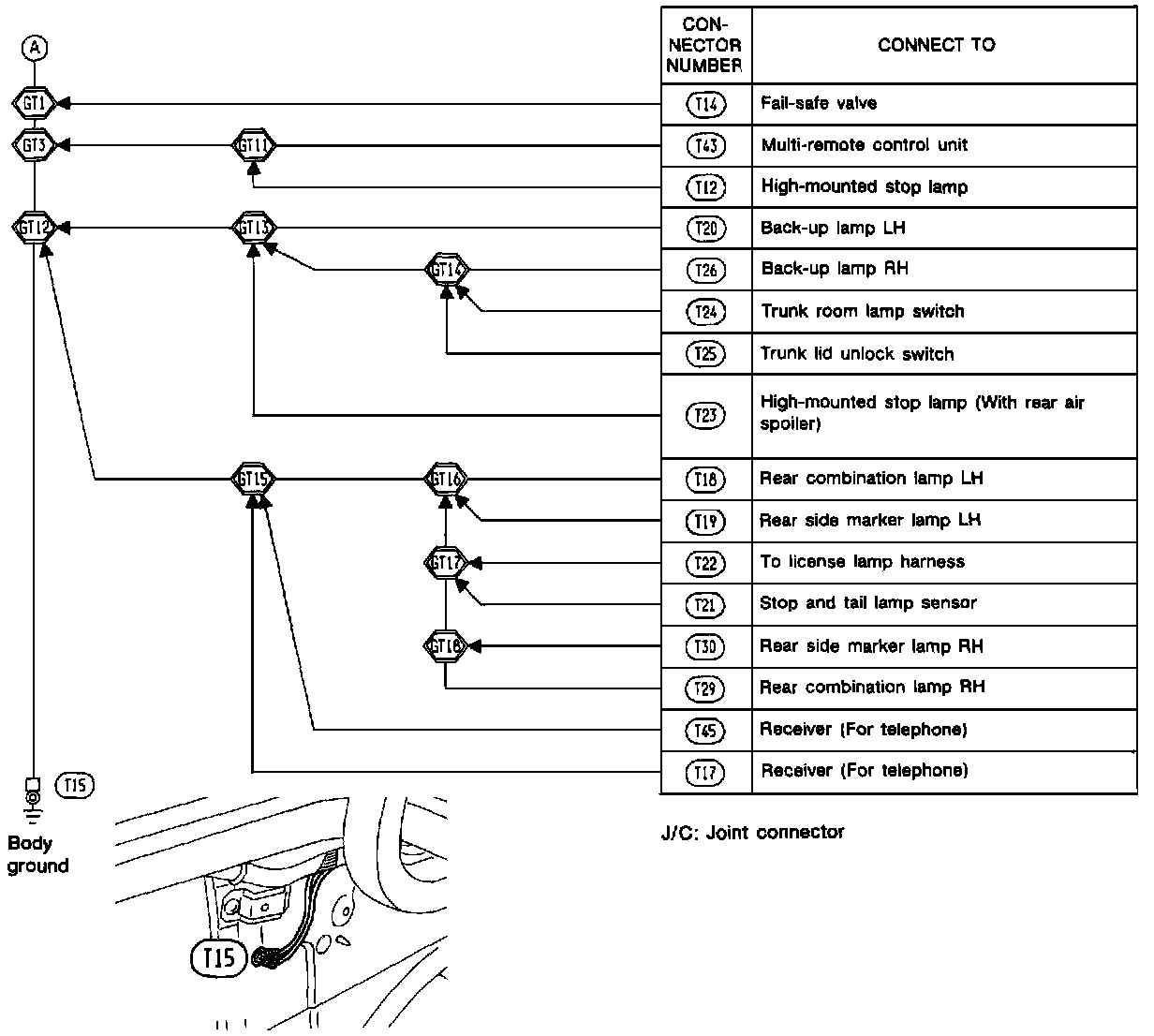

Main Harness (LH Side) (Part 3 Of 3):
