Power and Ground Distribution
>>
Locations
>>
Main Harness
>>
RH Side
RH Side

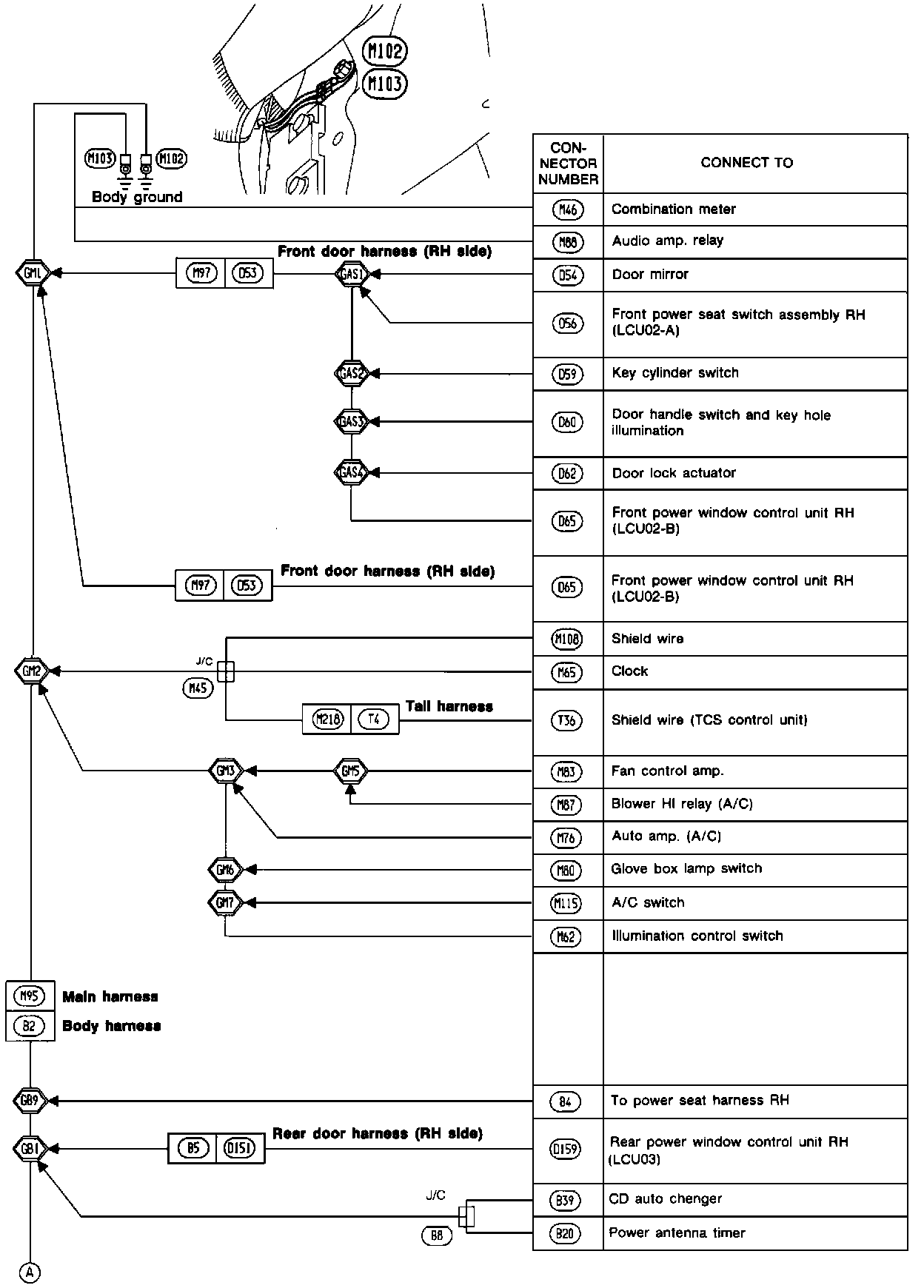

Main Harness (RH Side) (Part 1 Of 2):
Main Harness (RH Side) (Part 2 Of 2):
