Exhaust Gas Recirculation: Testing and Inspection

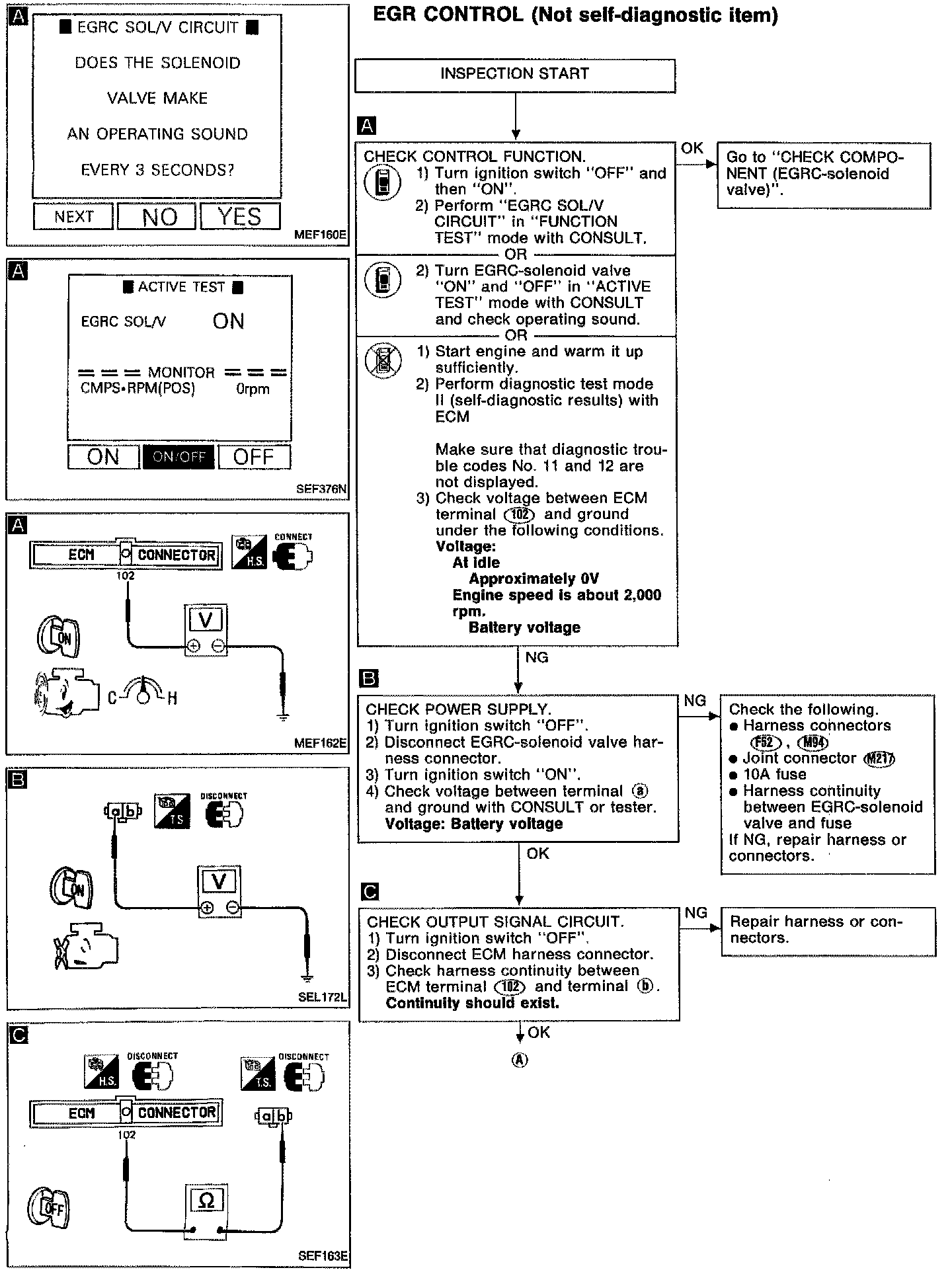

EGR Non-DTC Chart:
EGR Non-DTC Chart:

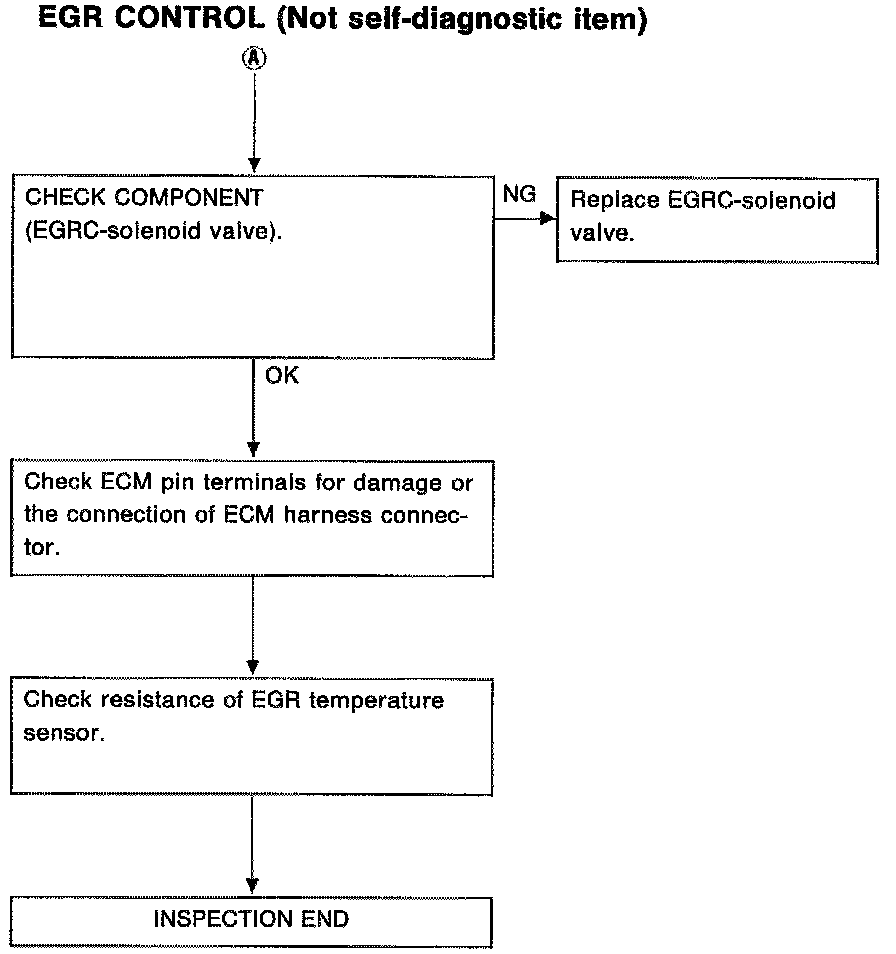

DIAGNOSTIC CHART

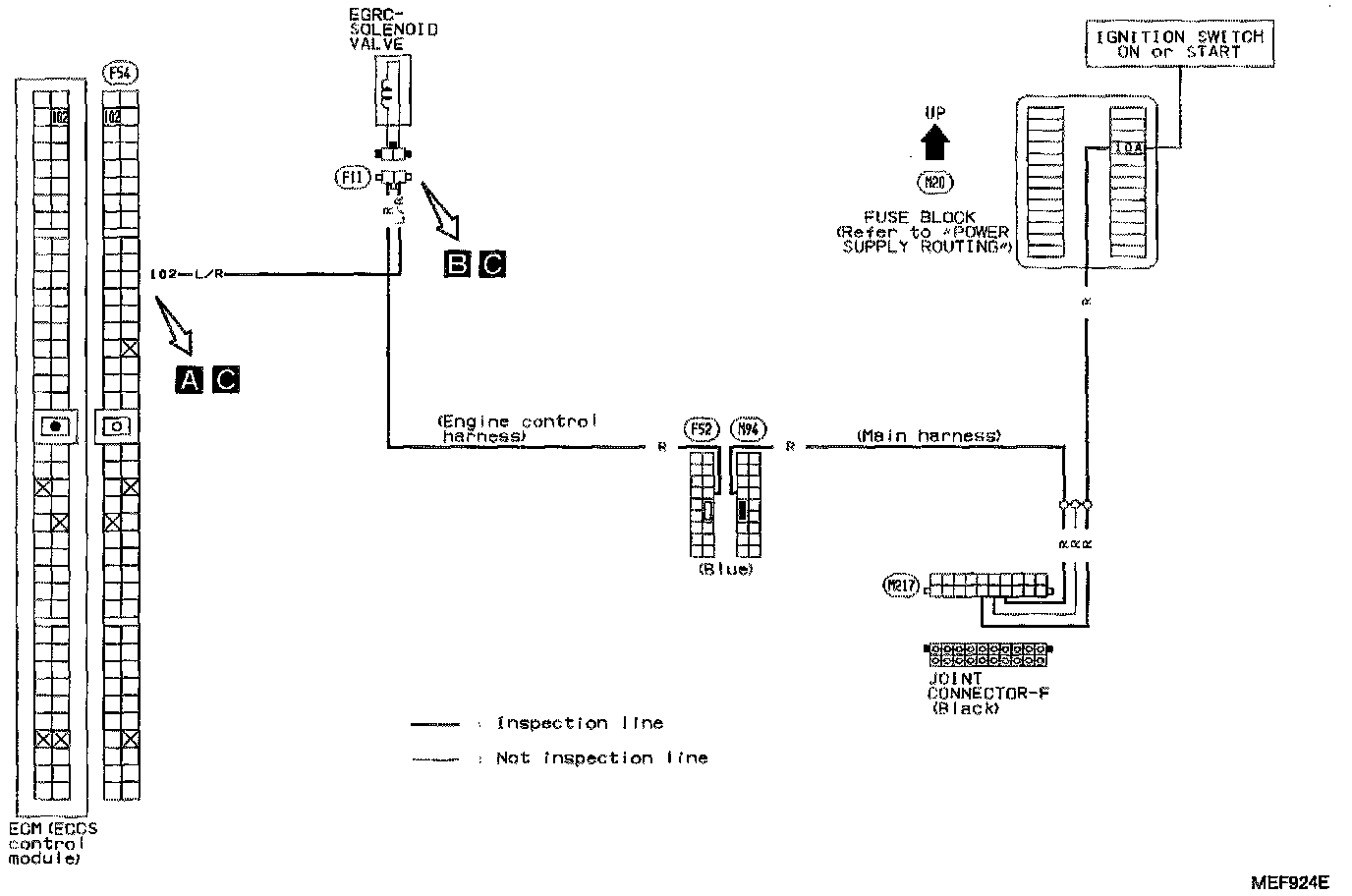

EGR Diagram:
CIRCUIT DIAGRAM
EGRC-Solenoid Harness Connector:
HARNESS LAYOUT
