A/T Control Unit

TCM Pin Terminal Layout:

A/T Control Unit Inspection:

INSPECTION OF A/T CONTROL UNIT
Measure voltage between each terminal and terminal 15 or 48. Use the "A/T CONTROL UNIT INSPECTION TABLE" for expected value results.

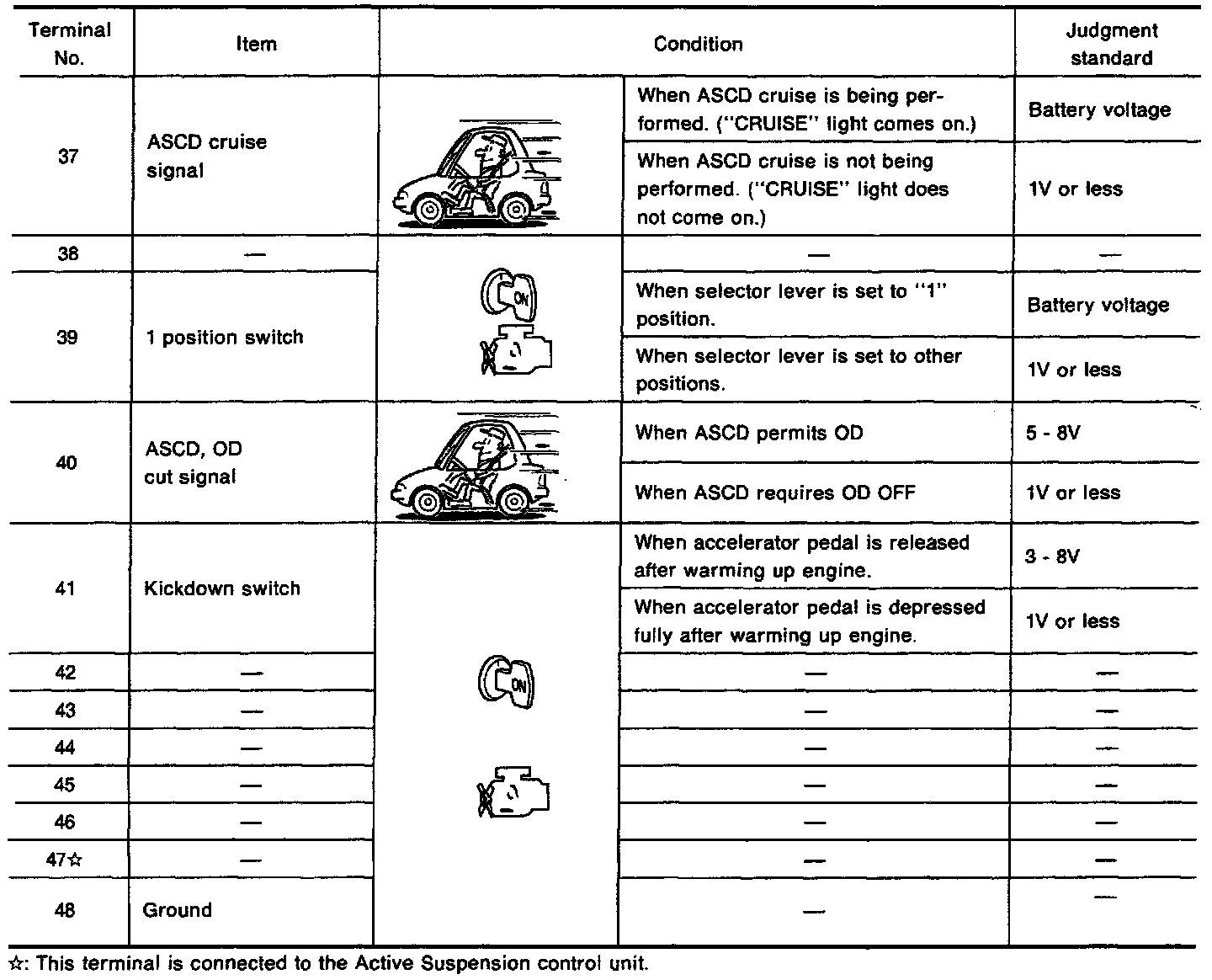

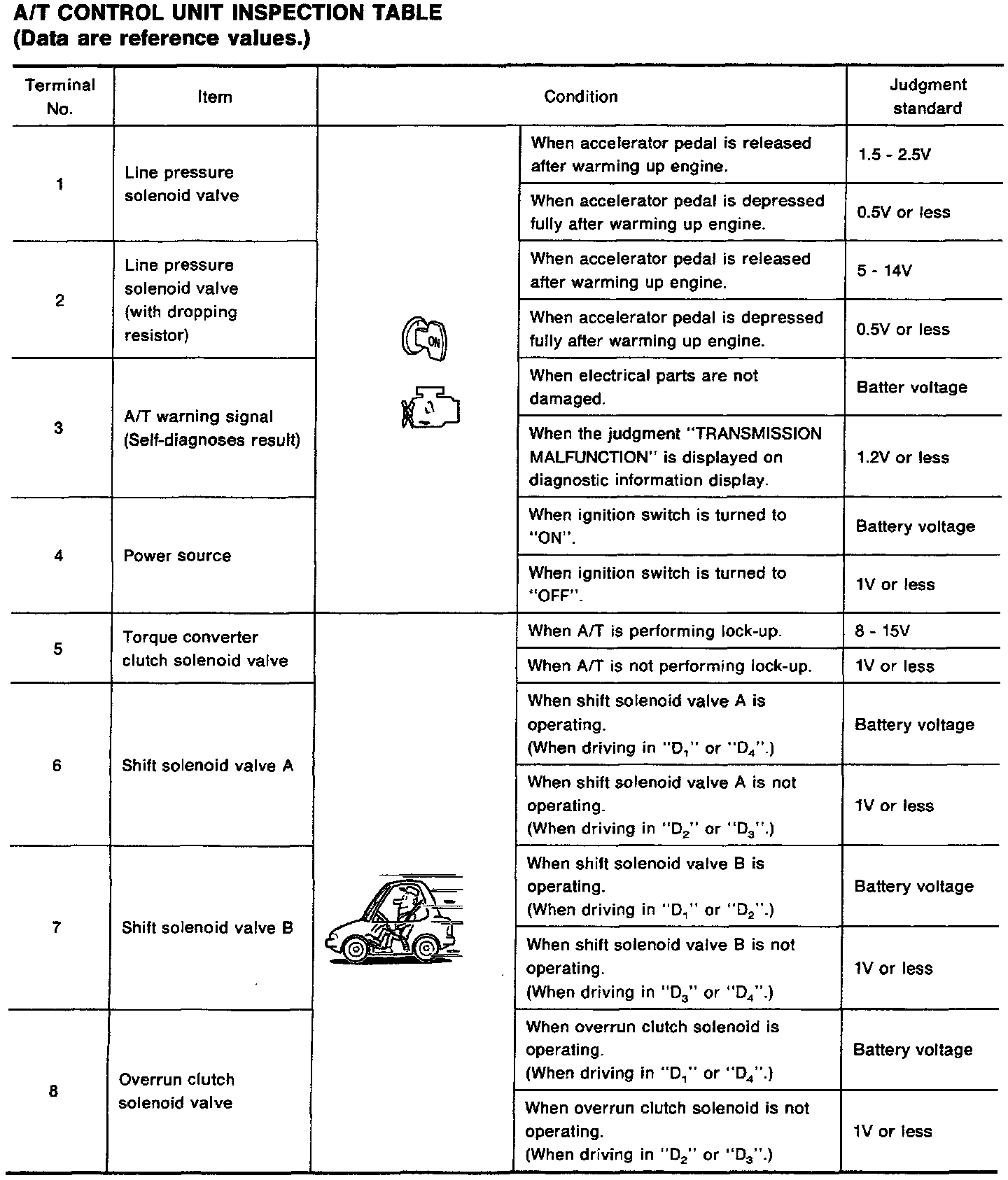

A/T Control Unit Inspection Table:

A/T Control Unit Inspection Table:

A/T Control Unit Inspection Table:

A/T Control Unit Inspection Table:

A/T CONTROL UNIT INSPECTION TABLES
