Accumulator, A/T

DIMENSIONS

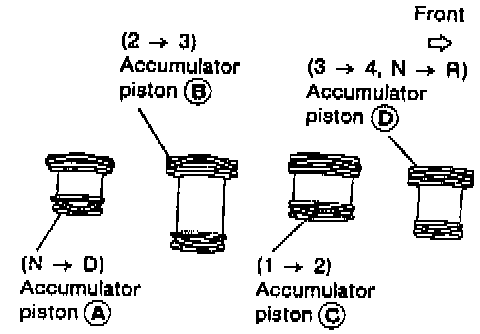

Accumulator O-rings
Small Diameter End:
A: 29 mm (1.14 inch)
B: 32 mm (1.26 inch)
C: 45 mm (1.77 inch)
D: 29 mm (1.14 inch)
Large Diameter End:
A: 45 mm (1.77 inch)
B: 50 mm (1.97 inch)
C: 50 mm (1.97 inch)
D: 45 mm (1.77 inch)
