Valve Body, A/T

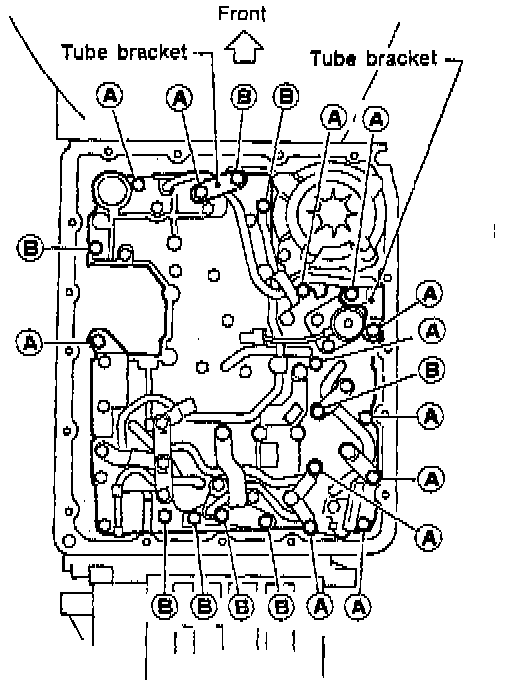

BOLT DIMENSIONS
Bolt A: 33 mm (1.30 inch)
Bolt B: 45 mm (1.77 inch)

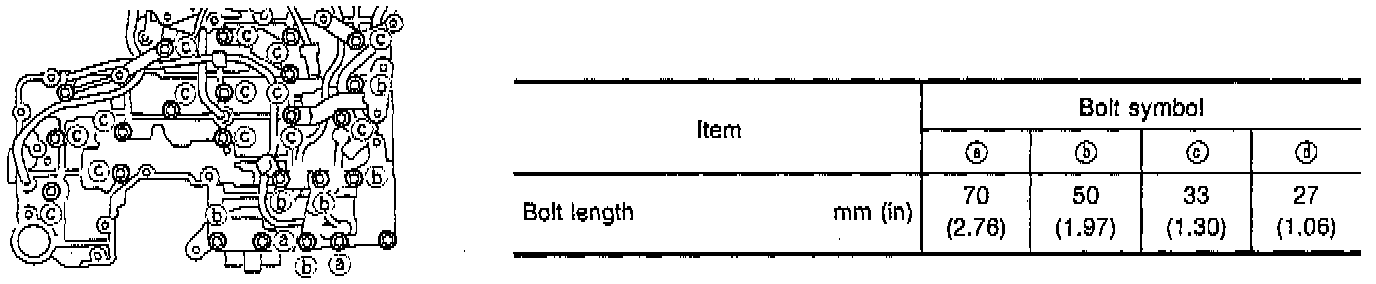

Bolt a: 70 mm (2.76 inch)
Bolt b: 50 mm (1.97 inch)
Bolt c: 33 mm (1.30 inch)
Bolt d: 27 mm (1.06 inch)

BOLT TIGHTENING

Torque Converter Clutch Solenoid 10 - 13 Nm (87 - 113 in. lbs.)

All Others 7 - 9 Nm (61 - 78 in. lbs.)
