Home >> Infiniti >> 1994 >> Q45 V8-4494cc 4.5L DOHC (VH45) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Sub-Harness-5

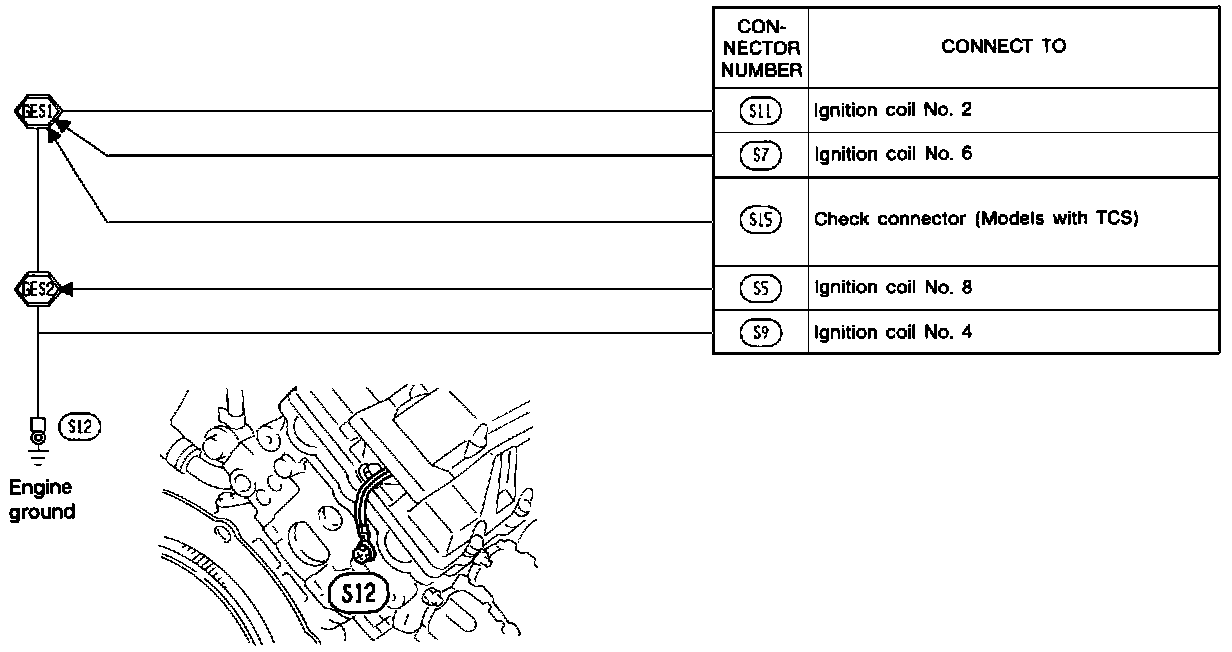

Sub-Harness-5

Sub-harness 5:
