Pressure Control Valve Circuit Check
Pressure Control Valve Circuit Check

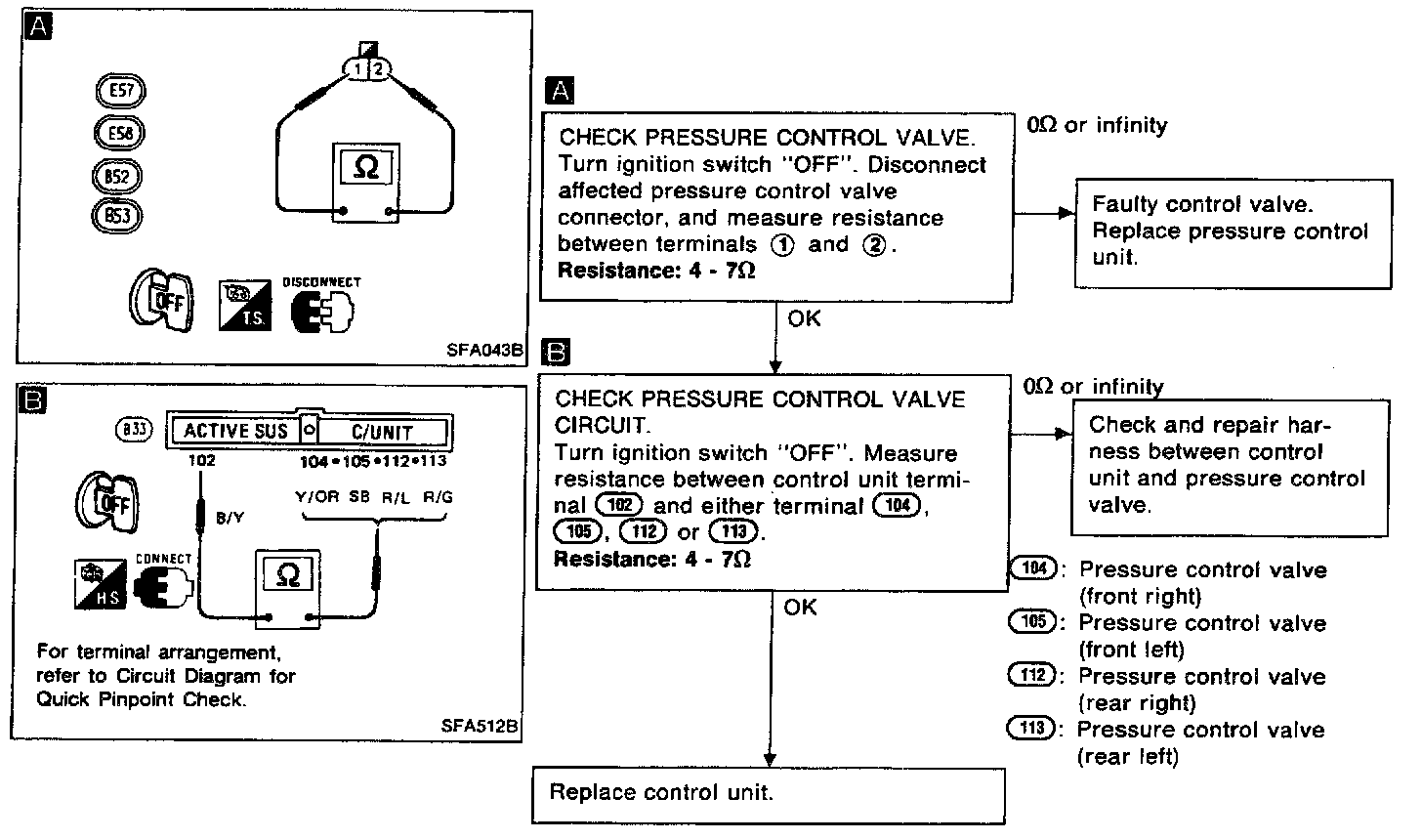

PRESSURE CONTROL VALVE CIRCUIT CHECK
