Control System

OUTLINE
The RE4RO3A automatic transmission senses vehicle operating conditions through various sensors. It always controls the optimum shaft position and reduces shifting and lock-up shocks.





CONTROL SYSTEM





A/T CONTROL UNIT FUNCTION
The function of the A/T control unit is to:
- Receive input signals sent from various switches and sensors.
- Determine required line pressure, shining point, lock-up operation, and engine brake operation.
- Send required output signals to the respective solenoids.

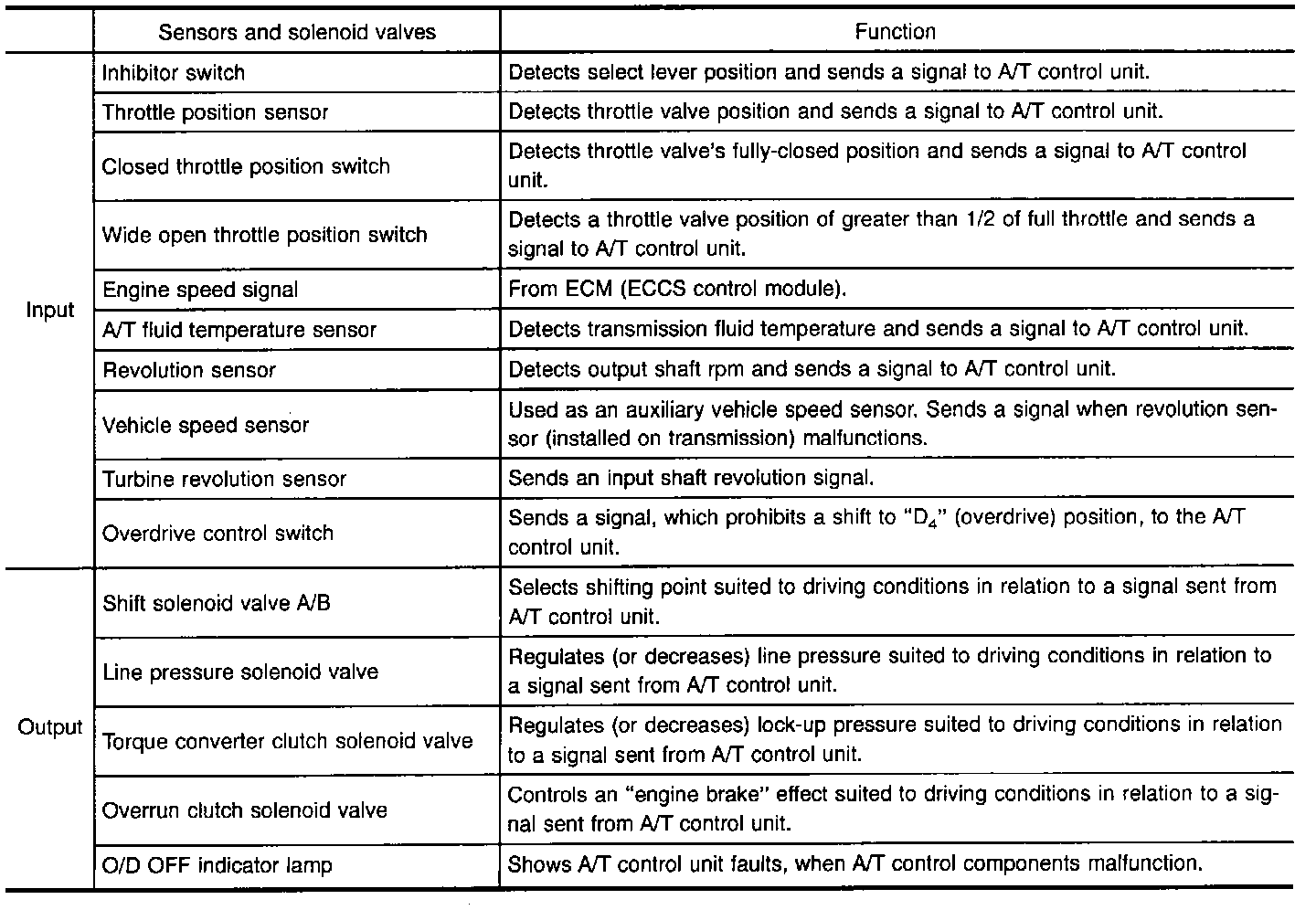

INPUT/OUTPUT SIGNAL OF A/T CONTROL UNIT
