P0115
P0115

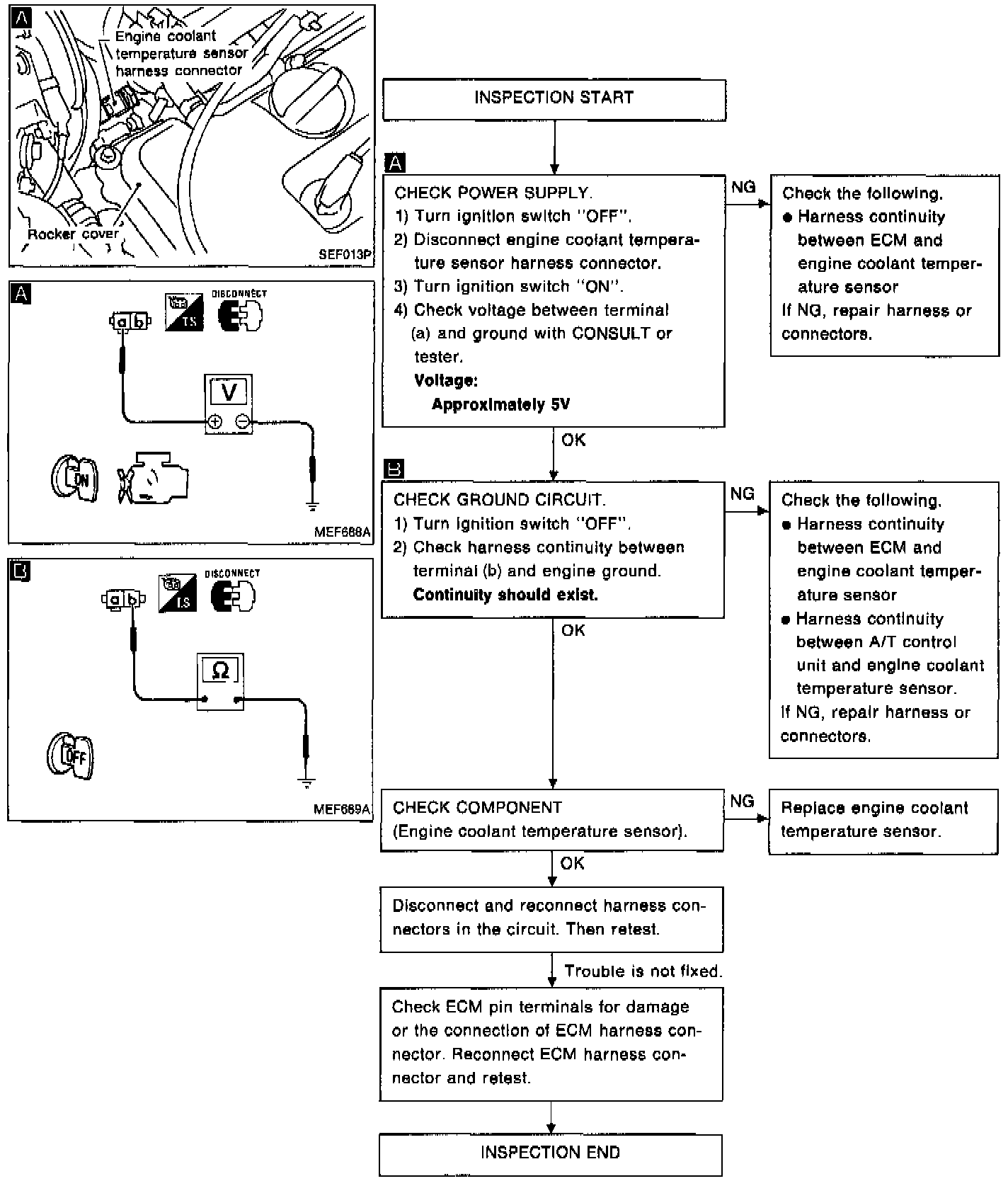

DTC Chart - Engine Coolant Temperature Sensor:
DIAGNOSTIC CHART

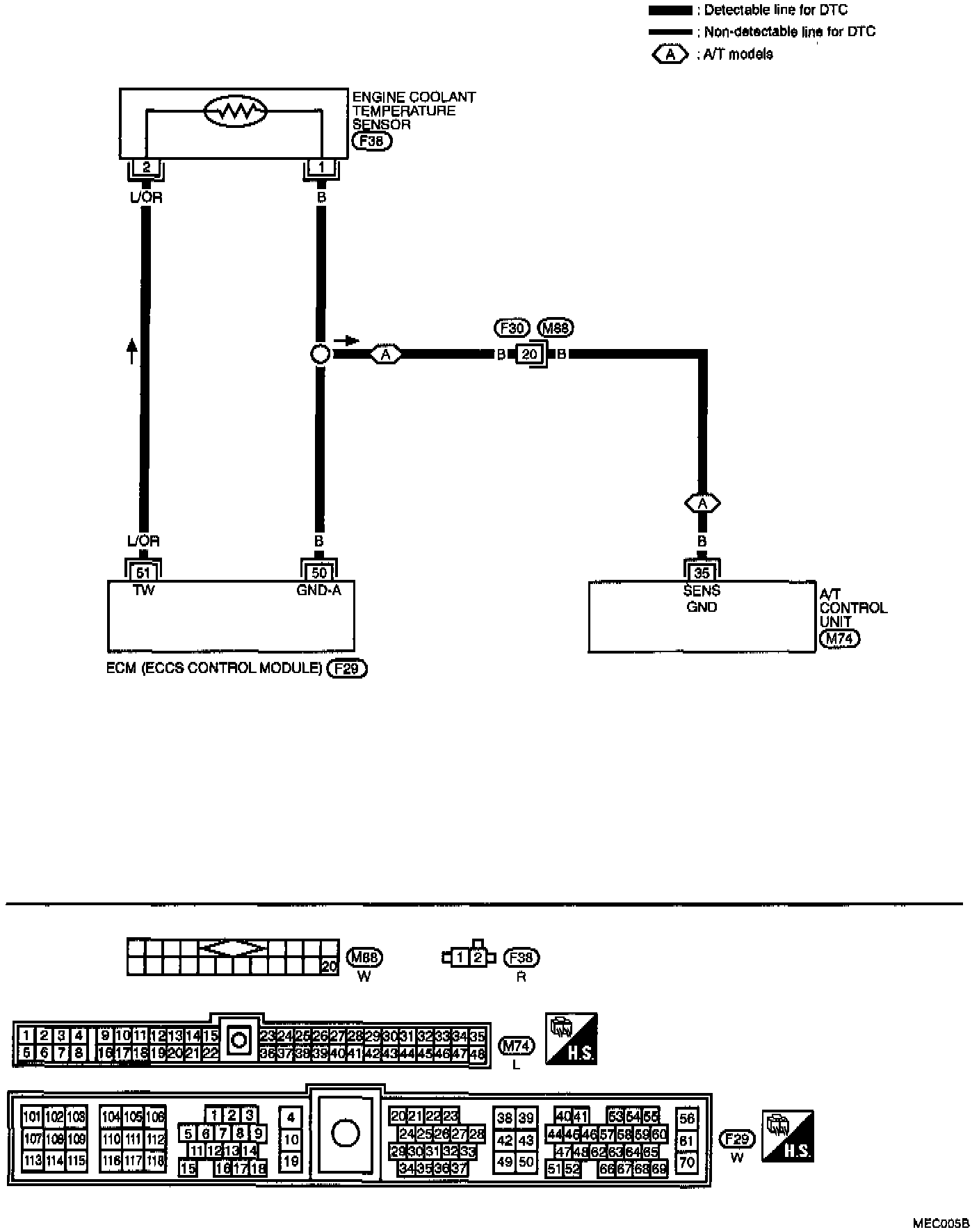

ECTS Circuit Diagram:
CIRCUIT DIAGRAM
