P0120
P0120

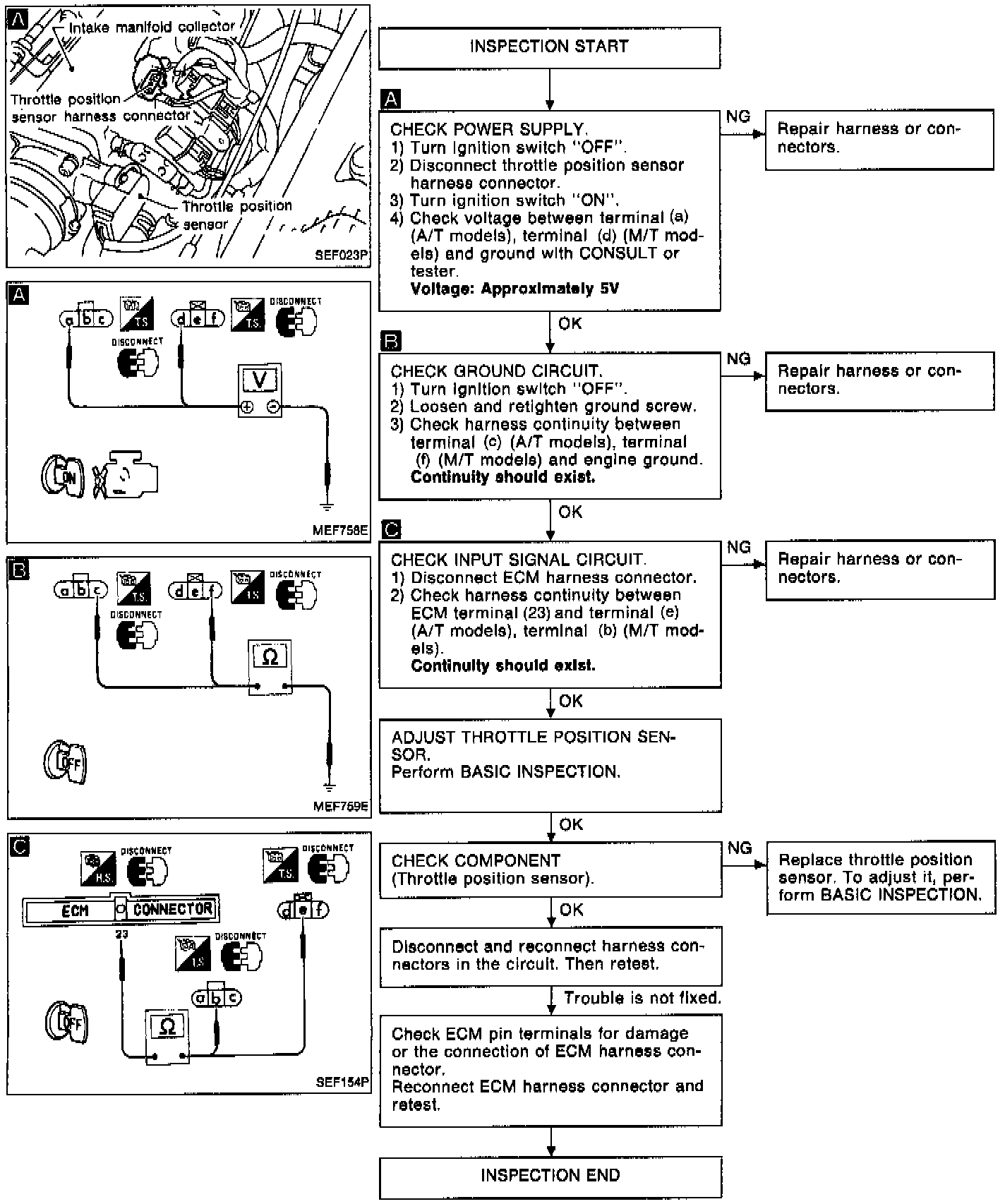

Throttle Position Sensor DTC Chart:
DIAGNOSTIC CHART
Throttle Position Sensor Diagram:
CIRCUIT DIAGRAM
