P0335
P0335

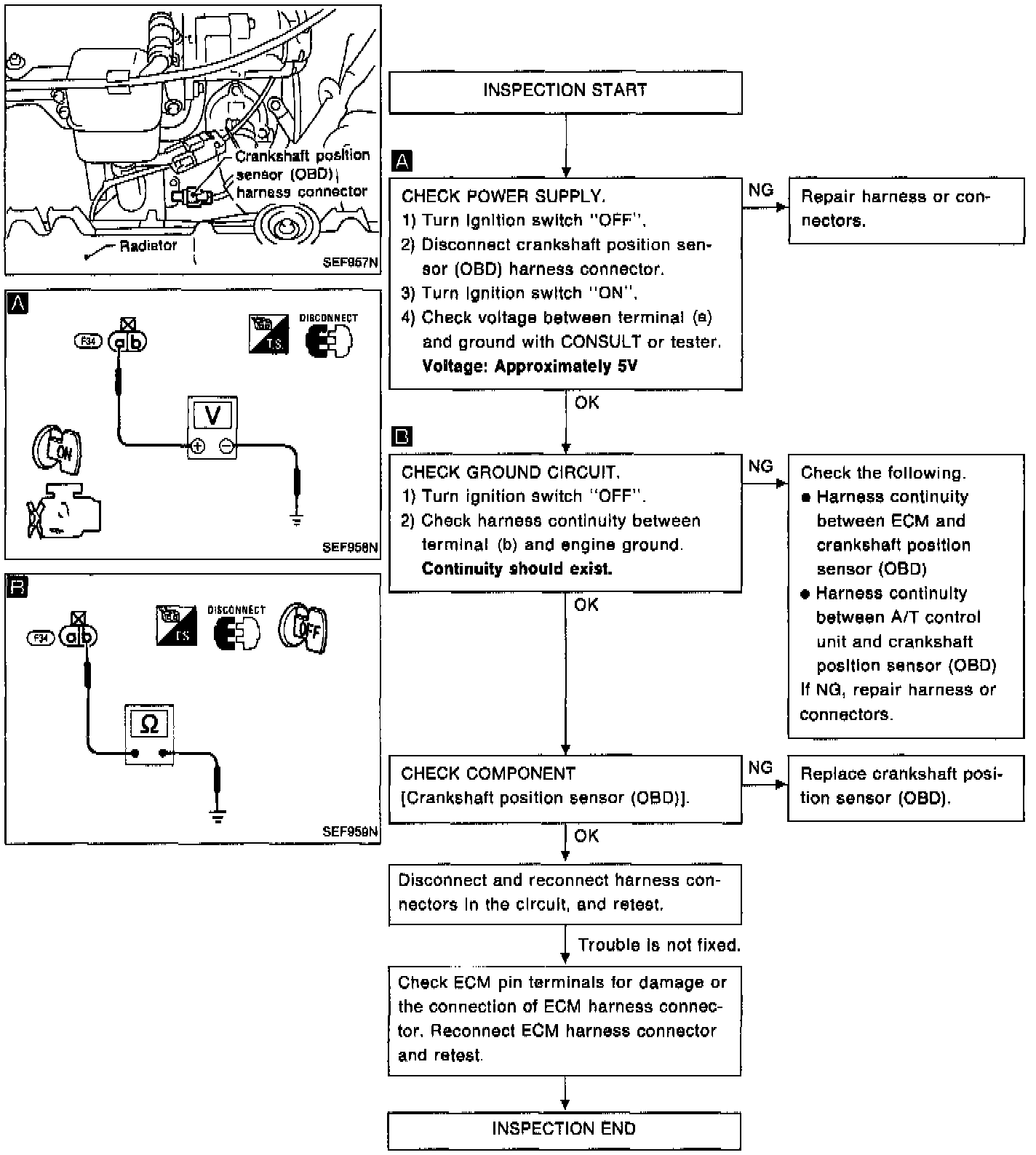

Crankshaft Position Sensor DTC Chart:
DIAGNOSTIC CHART
Crankshaft Position Sensor Diagram:
CIRCUIT DIAGRAM
