P0400
P0400
EGR Function DTC Chart:
EGR Function DTC Chart:

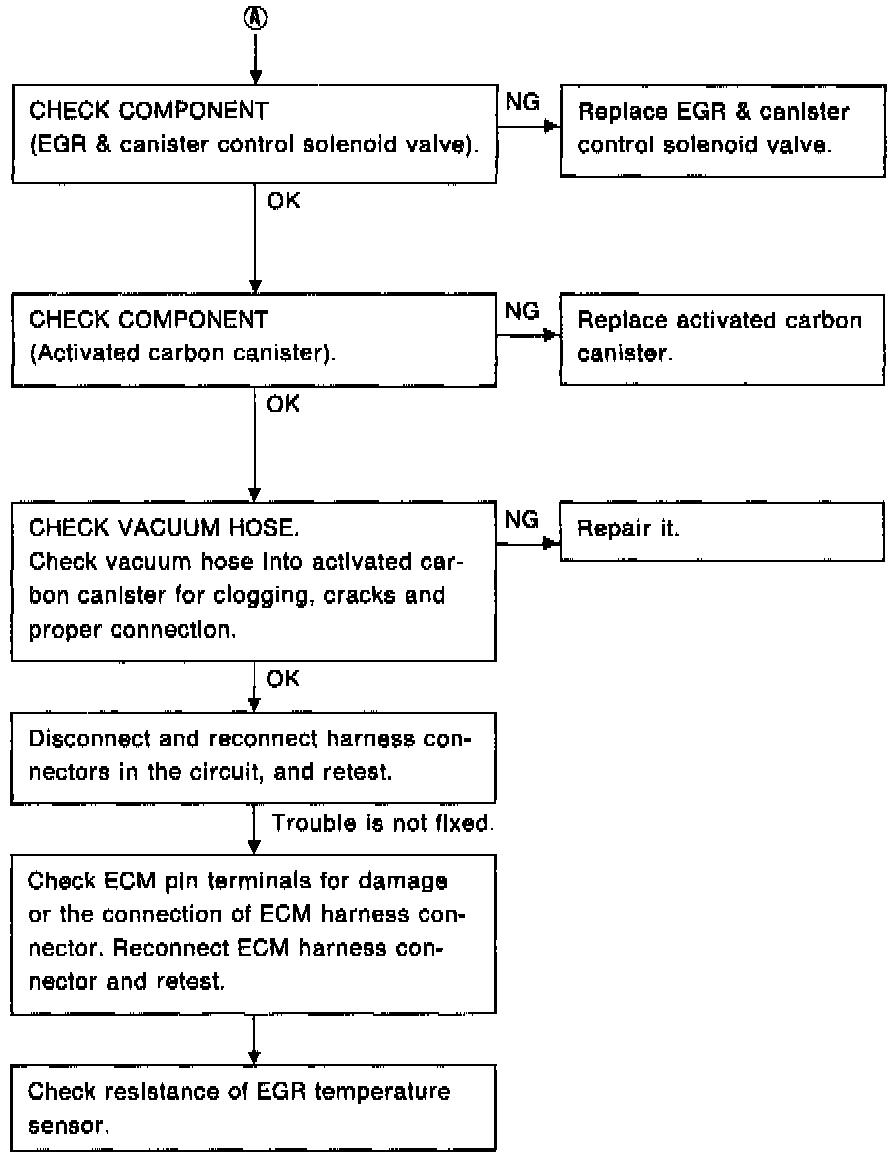

DIAGNOSTIC CHART
EGR Function Diagram:
CIRCUIT DIAGRAM
