P1401
P1401
EGR Temperature Sensor DTC Chart:
DIAGNOSTIC CHART

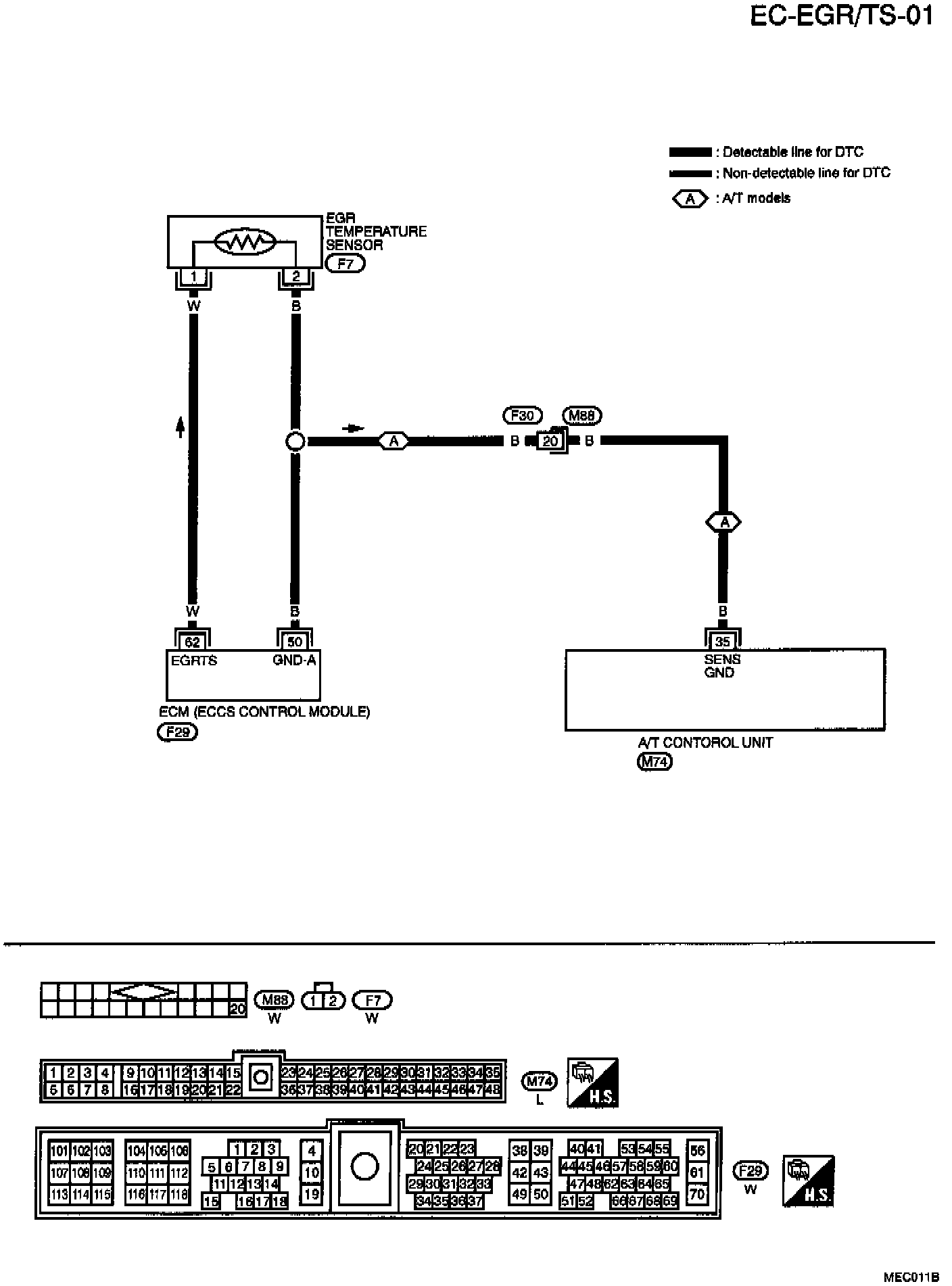

EGR Temperature Sensor Diagram:
CIRCUIT DIAGRAM
