Electrical Diagrams

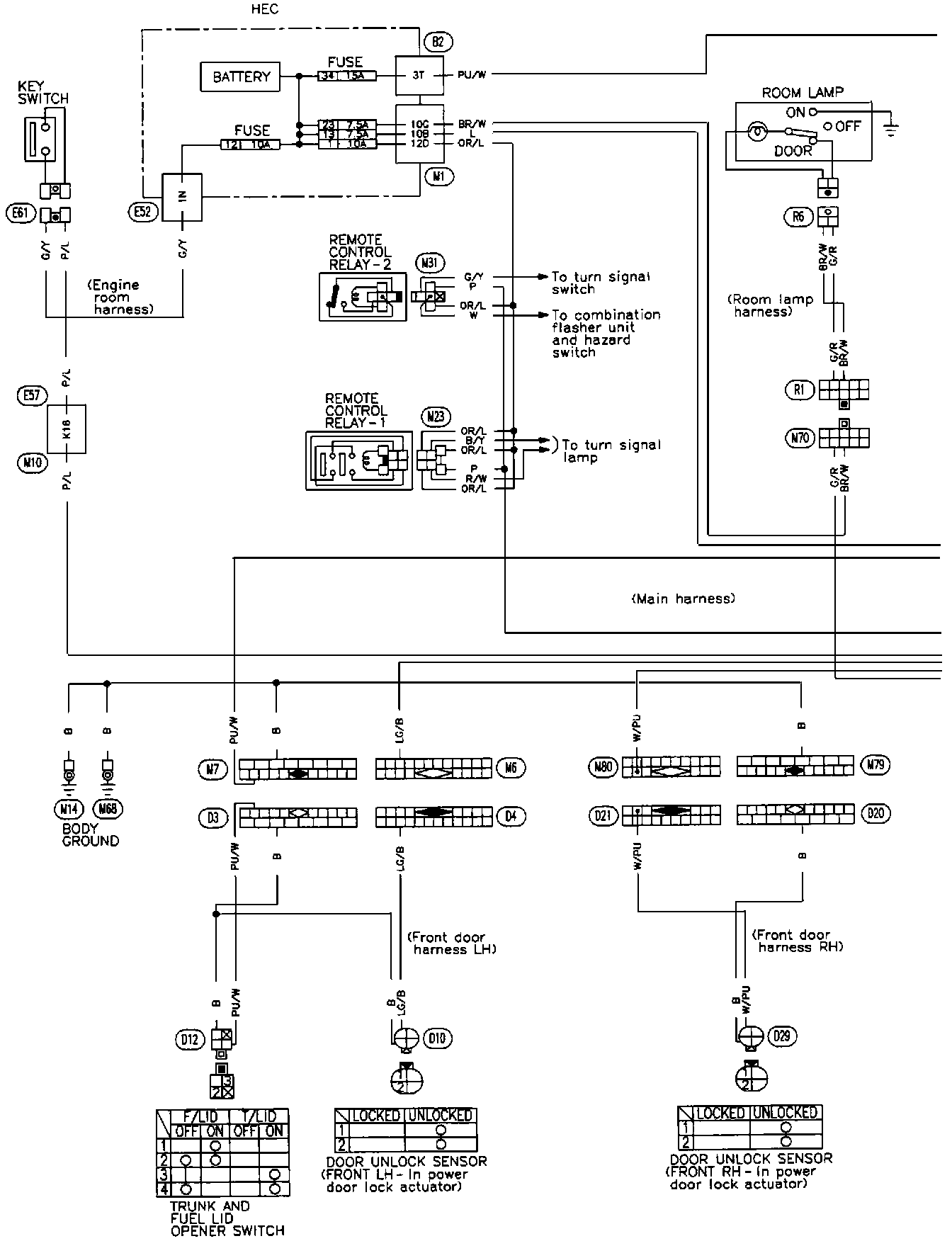

Multi-Remote Control System (Part 1 Of 2):

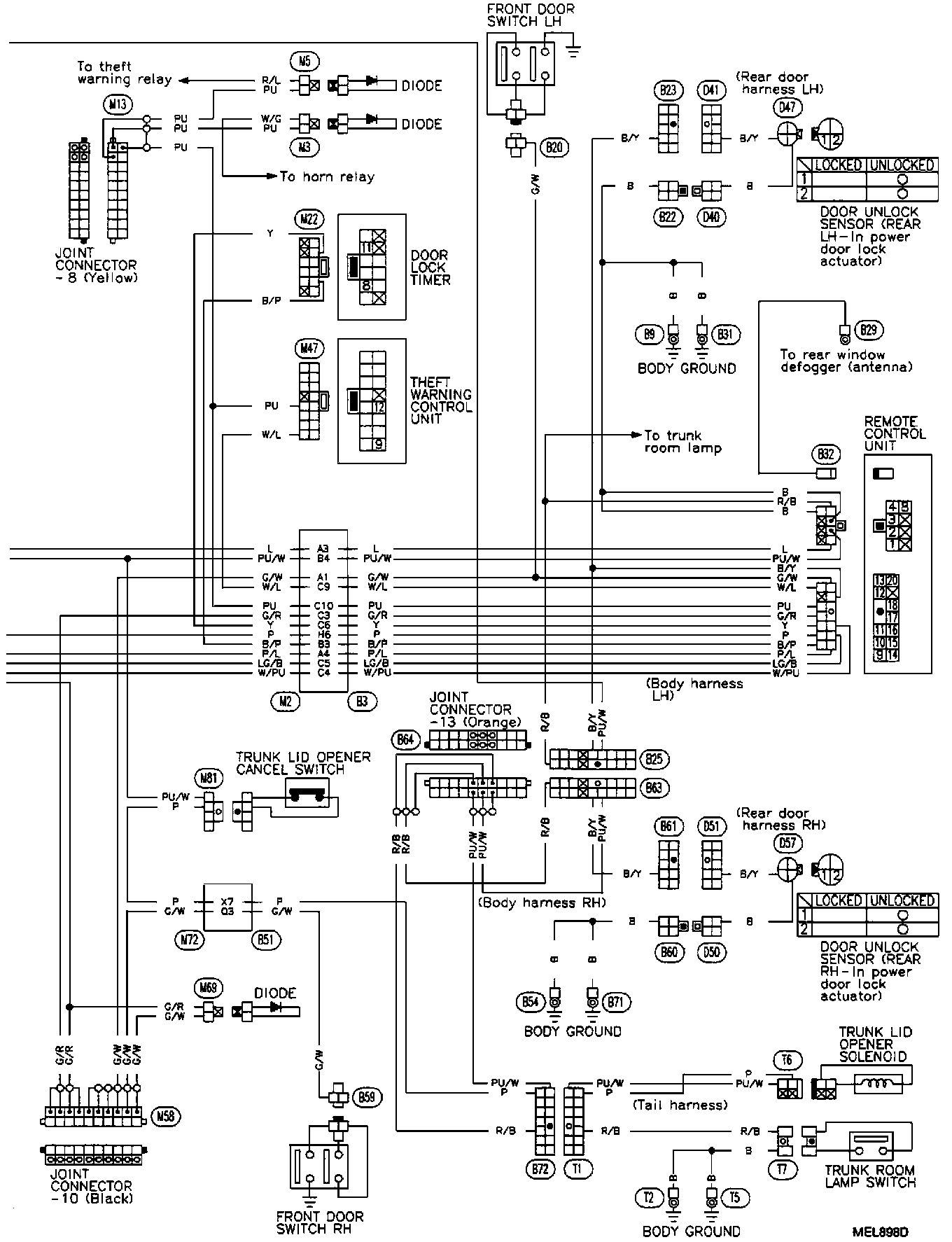

Multi-Remote Control System (Part 2 Of 2):
