Parking Brake System: Service and Repair

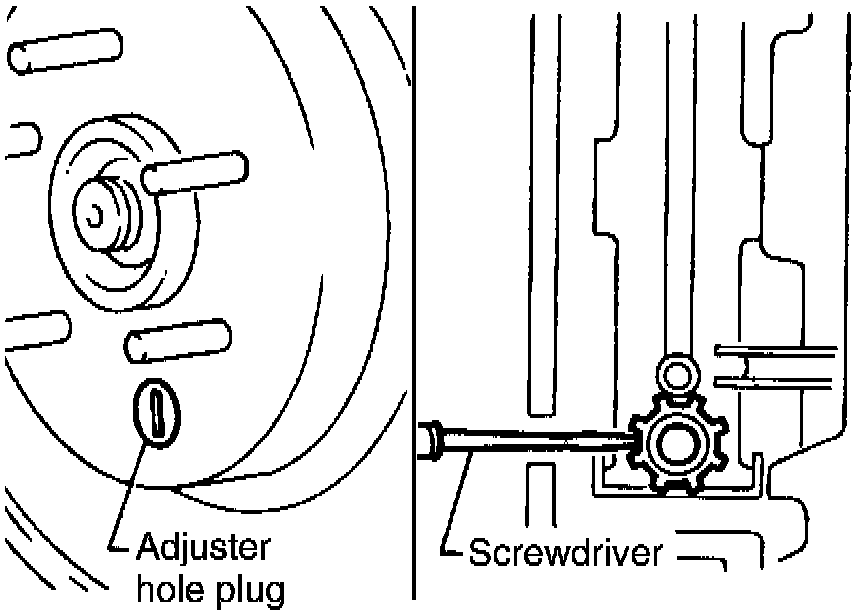

Fig. 6 Parking brake replacement:

1. Remove rotor as outlined under Brake Rotor/Disc.
2. Remove retainer, then rotate shoes and remove spring.
3. Remove adjuster and strut. Disconnect parking brake cable from toggle lever.
4. Remove C-clip with a suitable tool, then separate toggle lever and brake shoe, Fig. 6.
5. Reverse procedure to install.
