CONSULT-II Inspection Procedure

Automatic Speed Control Device (ASCD): Trouble Diagnoses: Consult:

1. Turn off ignition switch.

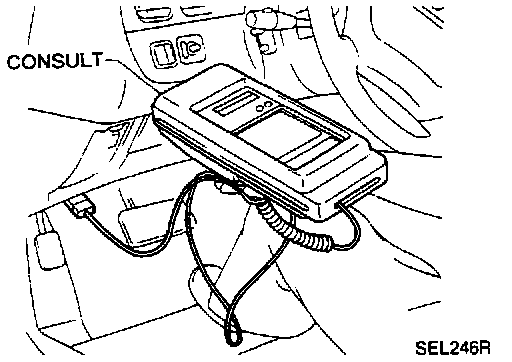

2. Connect "CONSULT" to data link connector.

Automatic Speed Control Device (ASCD): Trouble Diagnoses: Consult:

3. Turn on ignition switch.
4. Turn on Automatic Speed Control Device (ASCD) main switch.
5. Touch START (on CONSULT display).
6. Touch A.S.C.D

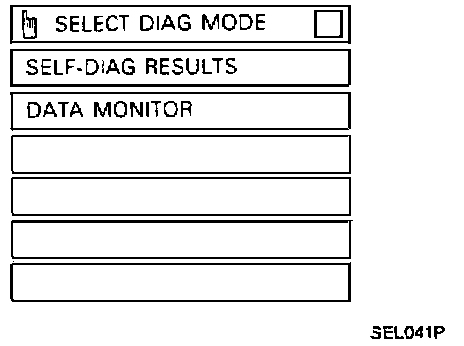

7. Touch SELF-DIAG RESULTS.

Automatic Speed Control Device (ASCD): Trouble Diagnoses: Consult:

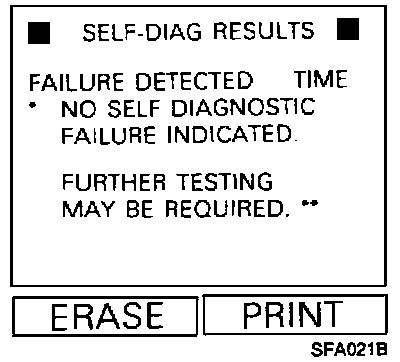

^ Self-diagnostic results are shown on display.

Automatic Speed Control Device (ASCD): Trouble Diagnoses: Consult:

8. Touch DATA MONITOR.

Automatic Speed Control Device (ASCD): Trouble Diagnoses: Consult:

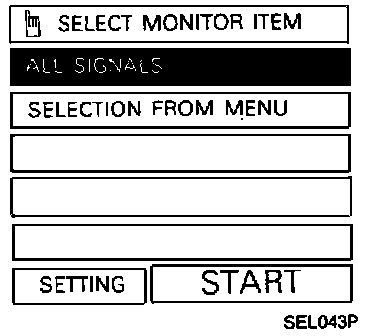

^ Touch START.
^ Data monitor results are shown on display.
