Engine Control Harness and Engine Harness

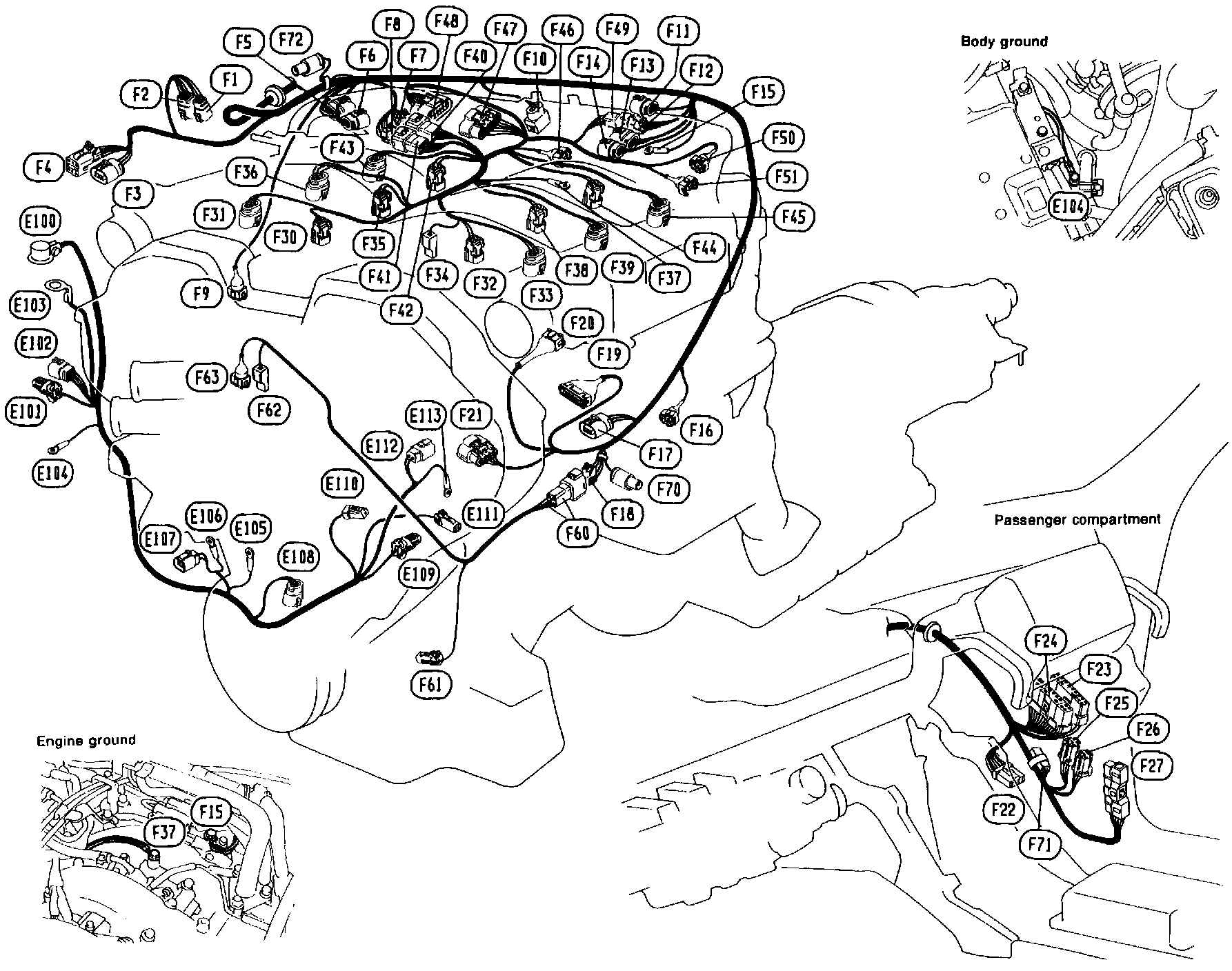

Engine Control Harness And Engine Harness:

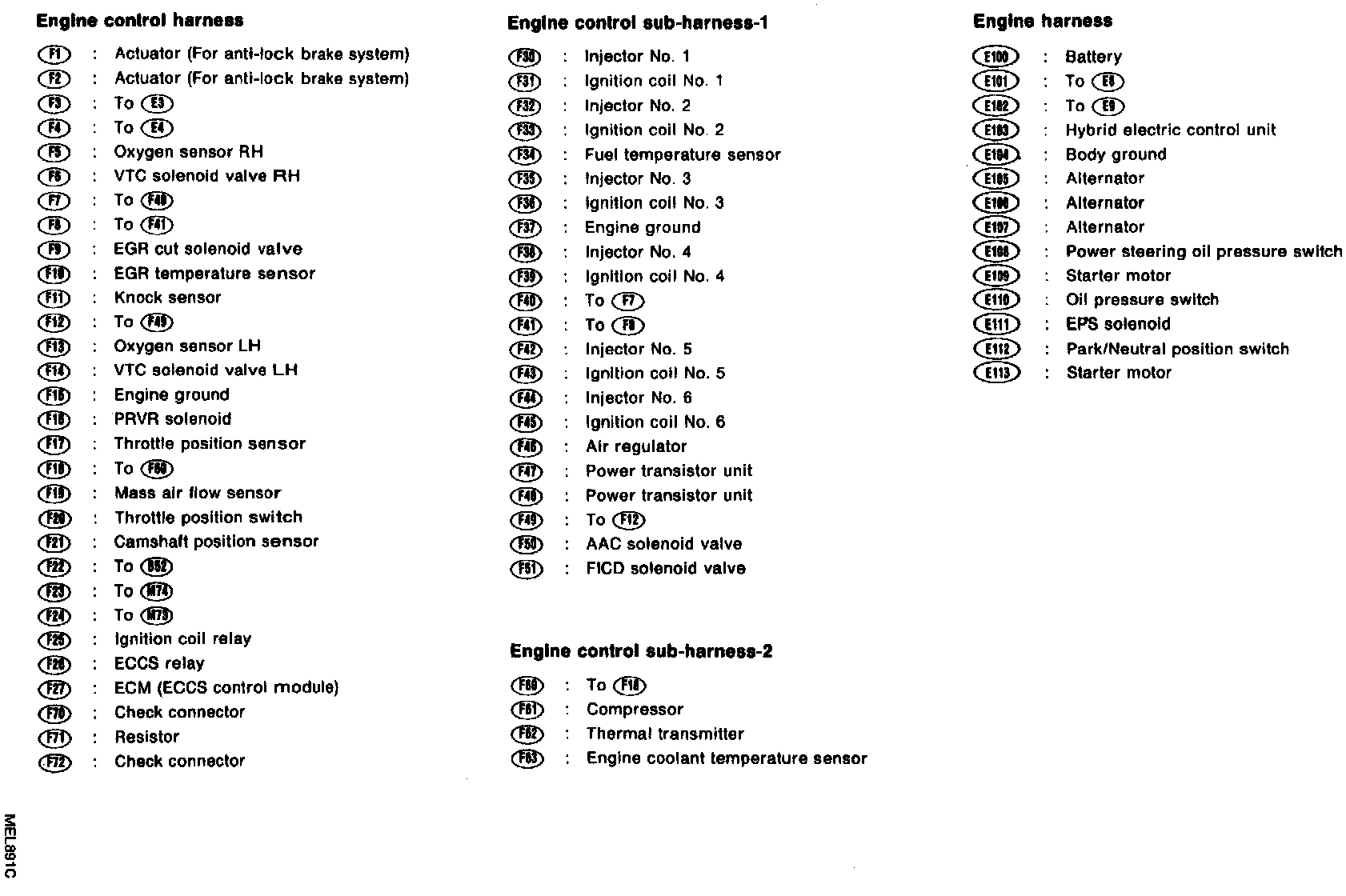

Engine Control Harness And Engine Harness:
