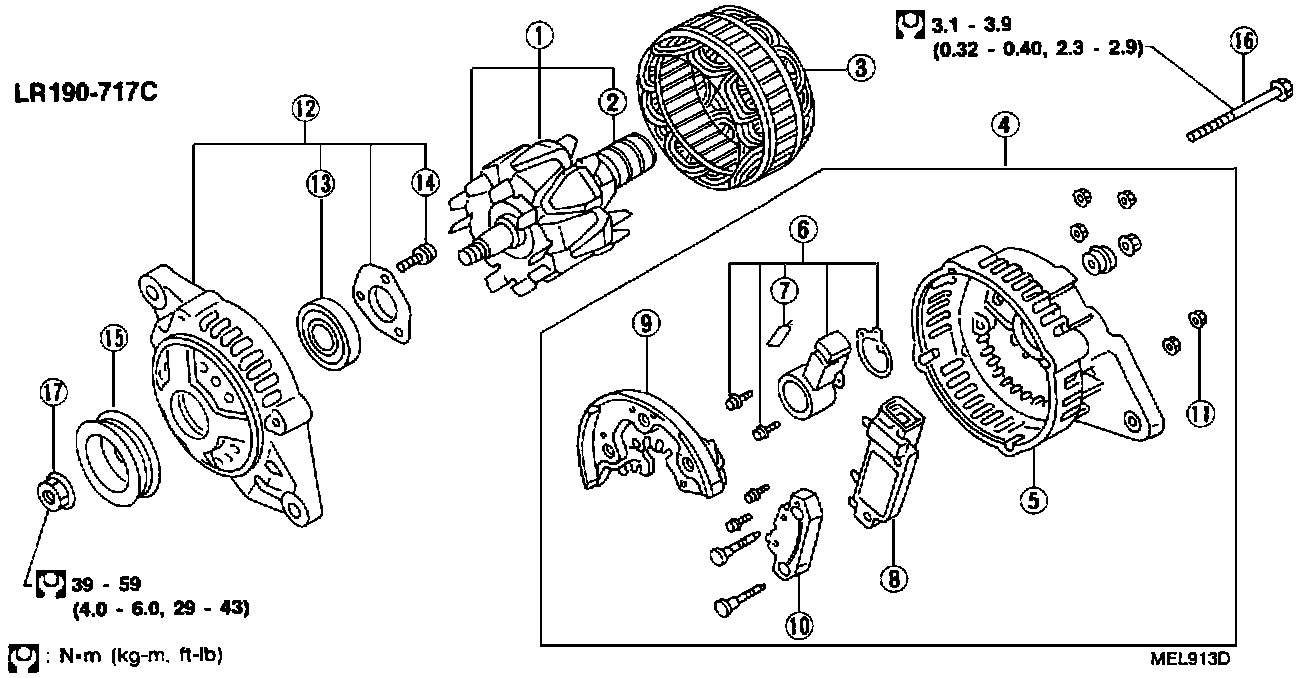

LR190-717C-Alternator

Charging System: Construction:

1 Rotor assembly
2 Ball bearing
3 Stator assembly
4 Rear cover assembly
5 Rear cover
6 Brush holder assembly
7 Brush set
8 Regulator assembly
9 Diode assembly
10 Condenser
11 Nut assembly
12 Front cover assembly
13 Ball bearing
14 Screw kit
15 Pulley
16 Through bolt
17 Pulley nut
18 Screw kit
