Body Harness and Tail Harness
Body Harness and Tail Harness

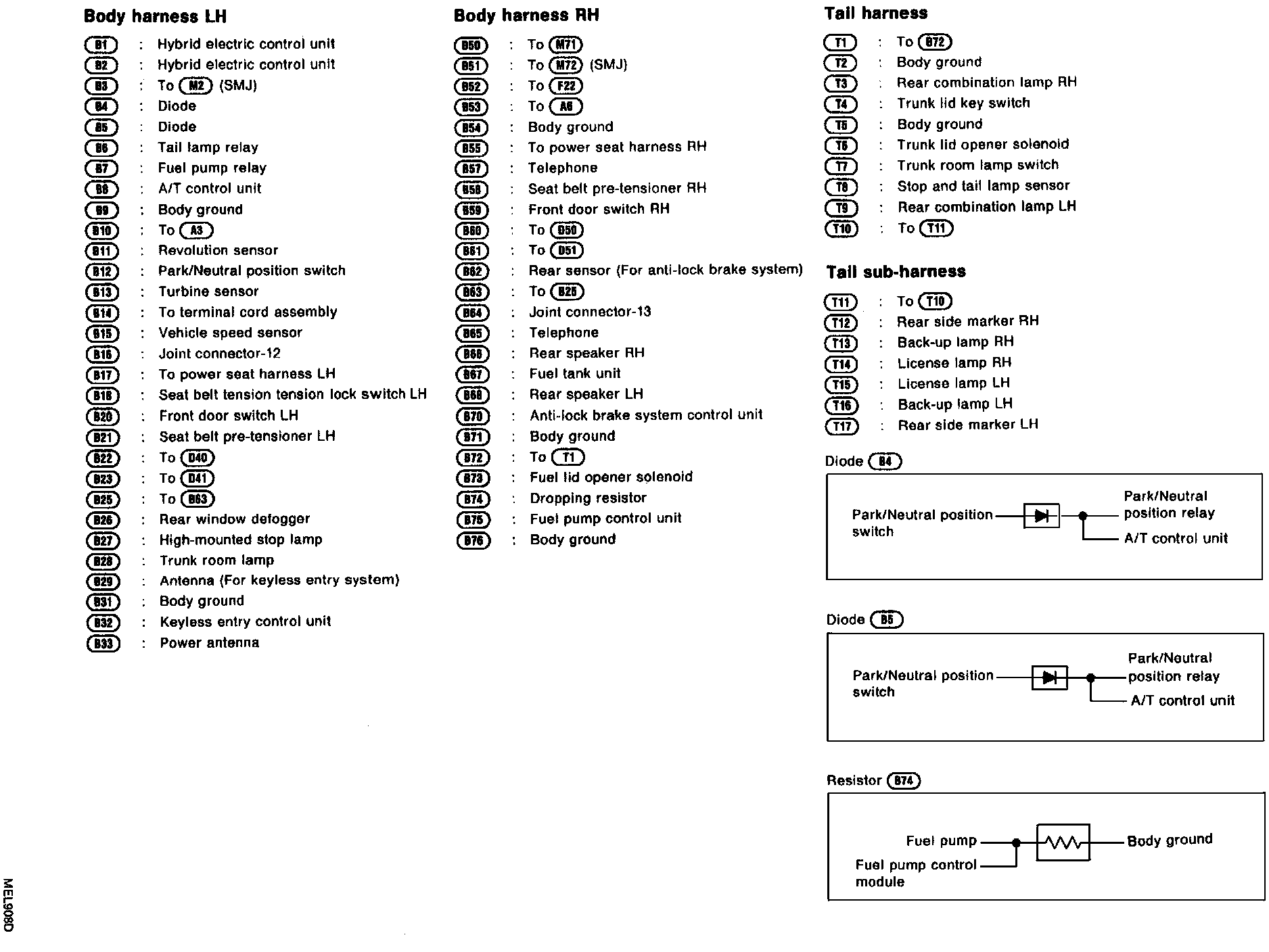

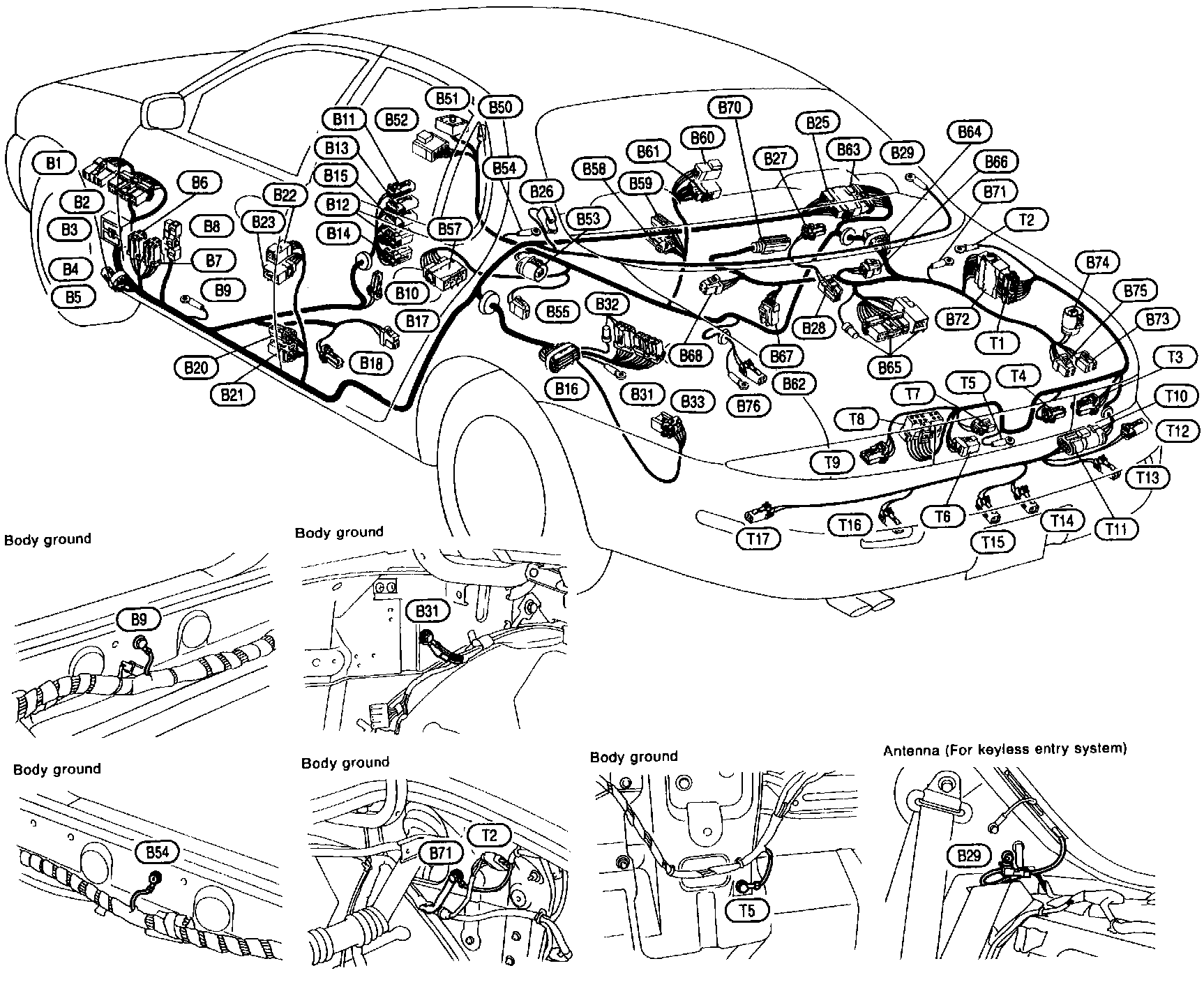

Body Harness And Tail Harness:
Body Harness And Tail Harness:
