Low Beam Adjustment

Headlamp: Low Beam:

1. Open the hood.

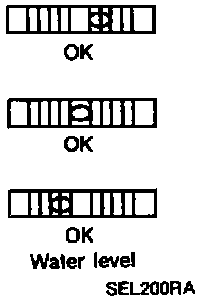

2. Adjust water level by turning the adjusting screw (vertical direction).

The bubble should be centered in the gauge as shown in the illustration.

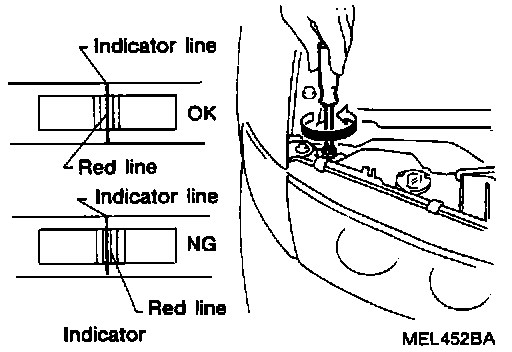

3. Adjust indicator by turning the adjusting screw with a Phillips screwdriver. (horizontal direction)

The inner red line should align with the indicator line. Never turn screw (A).
