Fusible Link: Locations

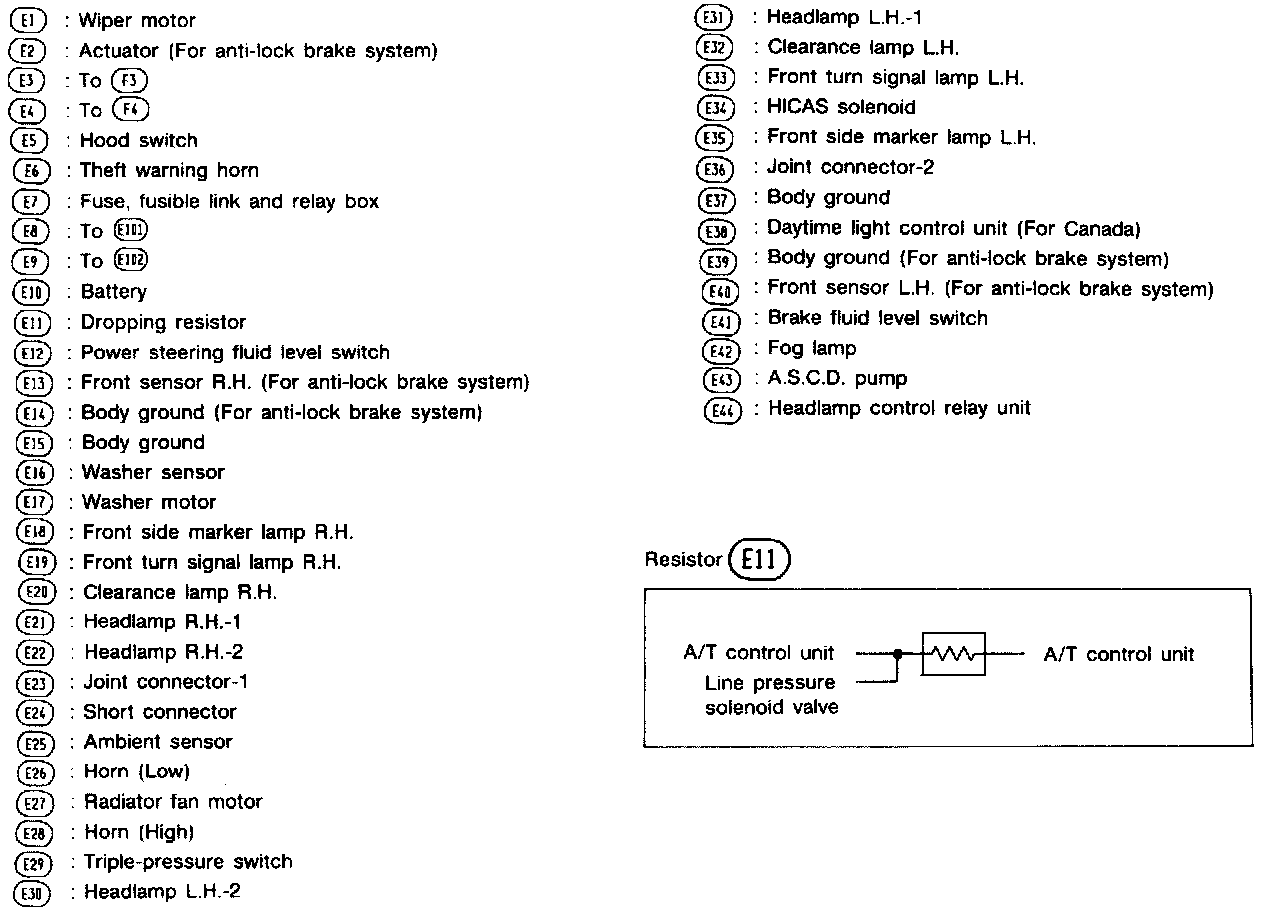

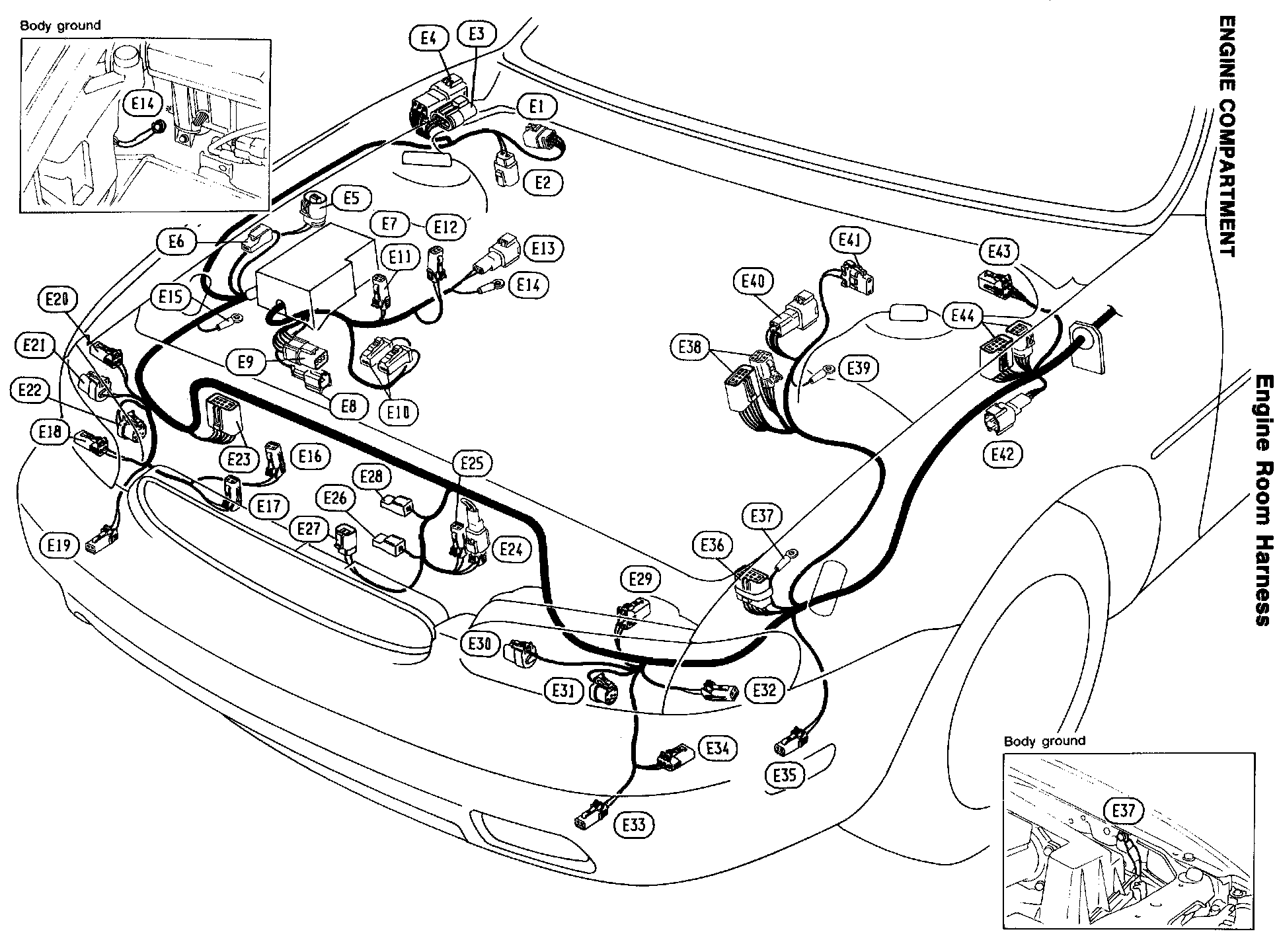

Location Of Electrical Units - Engine Compartment:
















Fusible Link, Fuse and Relay Box
