Multiple Junction Connector: Service and Repair

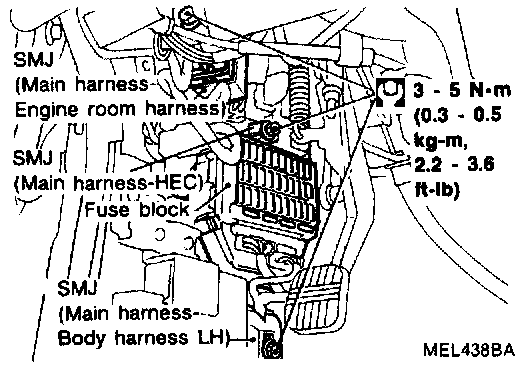

Super Multiple Junction: Installation:

To install Super Multiple Junction (SMJ) tighten bolts until orange "fulltight" mark appears and then retighten to specified torque as required.

Torque: 3-5 N-m (0.3-0.5 kg-m, 2.2-3.6 ft-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
