Engine Control System Schematic

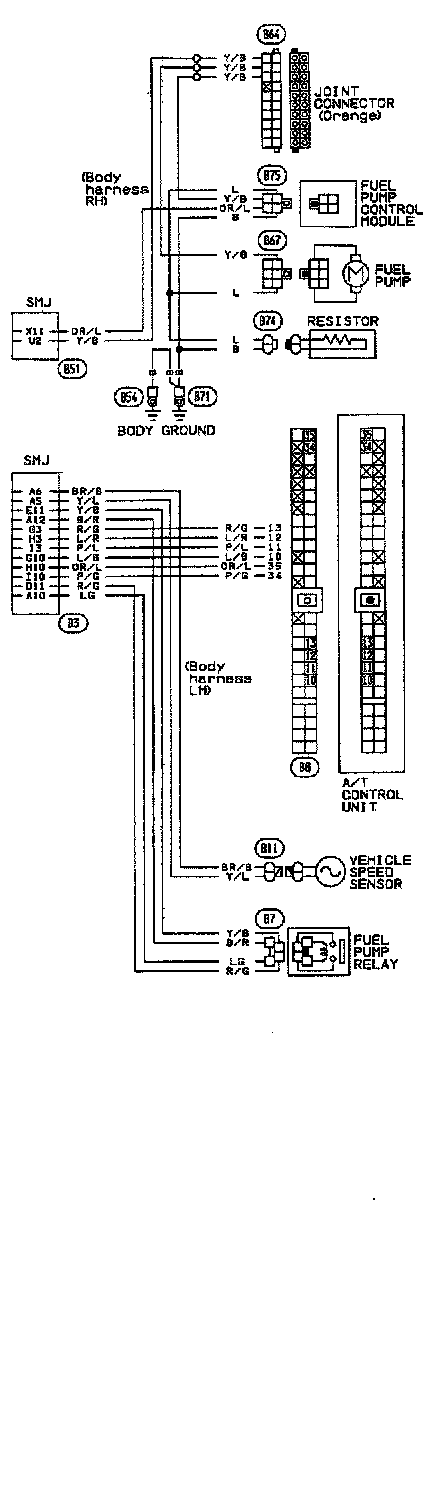

1995 J30 ECCS System Part 1:

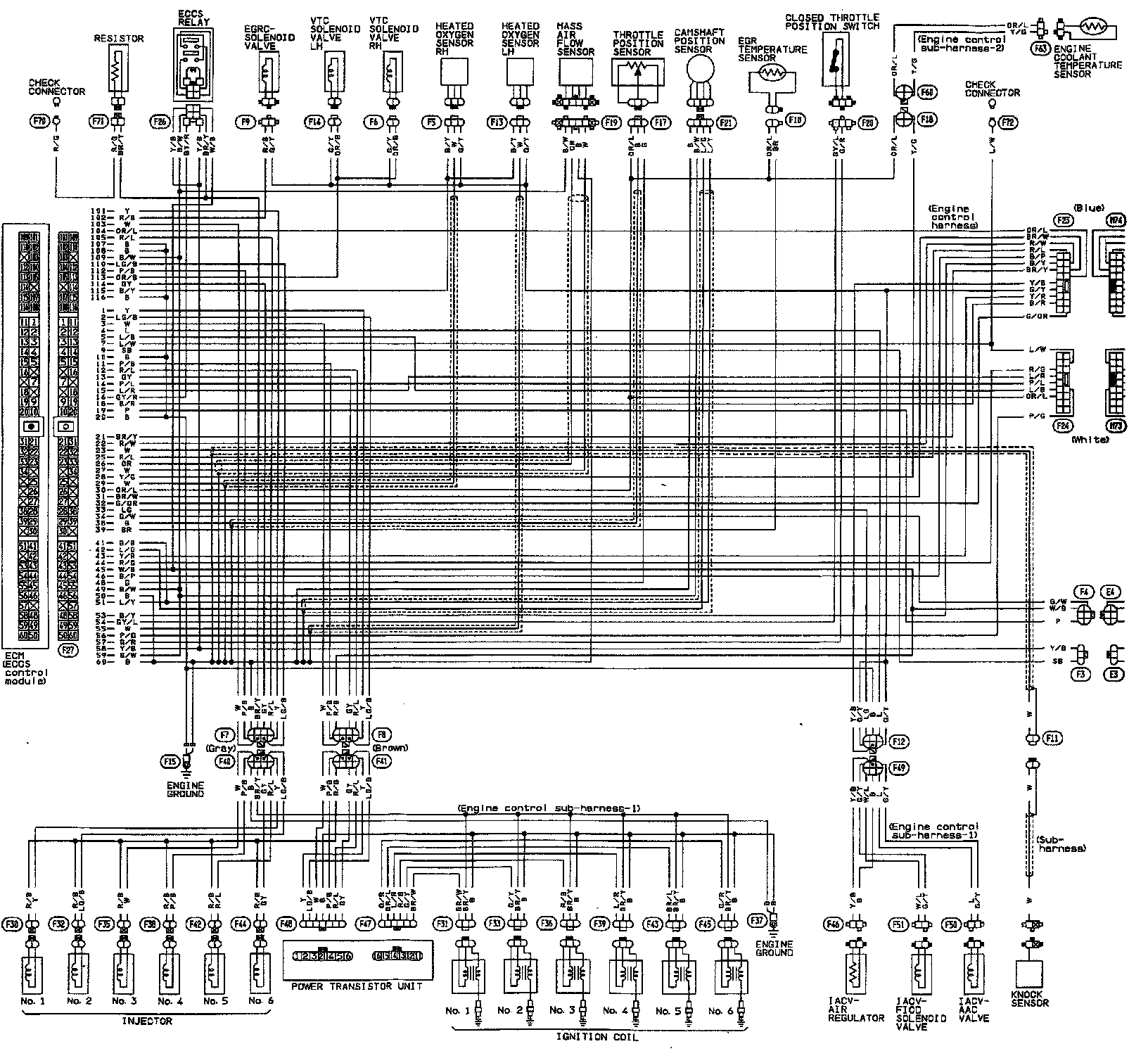

1995 J30 ECCS System Part 2:





1995 J30 ECCS System Part 3:
