Fuel Tank: Service and Repair

CAUTION:
- Do not disconnect any fuel line unless absolutely necessary.
- Plug pipe openings to prevent entry of dust or dirt.
- Do not pull drain hose as it may become disconnected from grommet on underside of vehicle.

REMOVAL



1. Release fuel pressure from fuel line.
2. Remove trunk front finisher.




3. Disconnect connector, tubes and clip.
4. Remove cover and grommet.




5. Disconnect drain hose and fasten its end to the body with tape to prevent it from dropping.

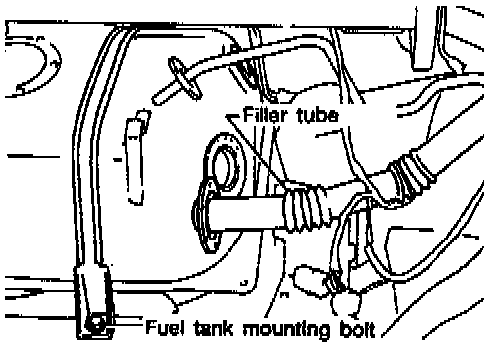

6. Remove filler tube.
7. Remove the two fuel tank mounting bolts, and remove fuel tank.

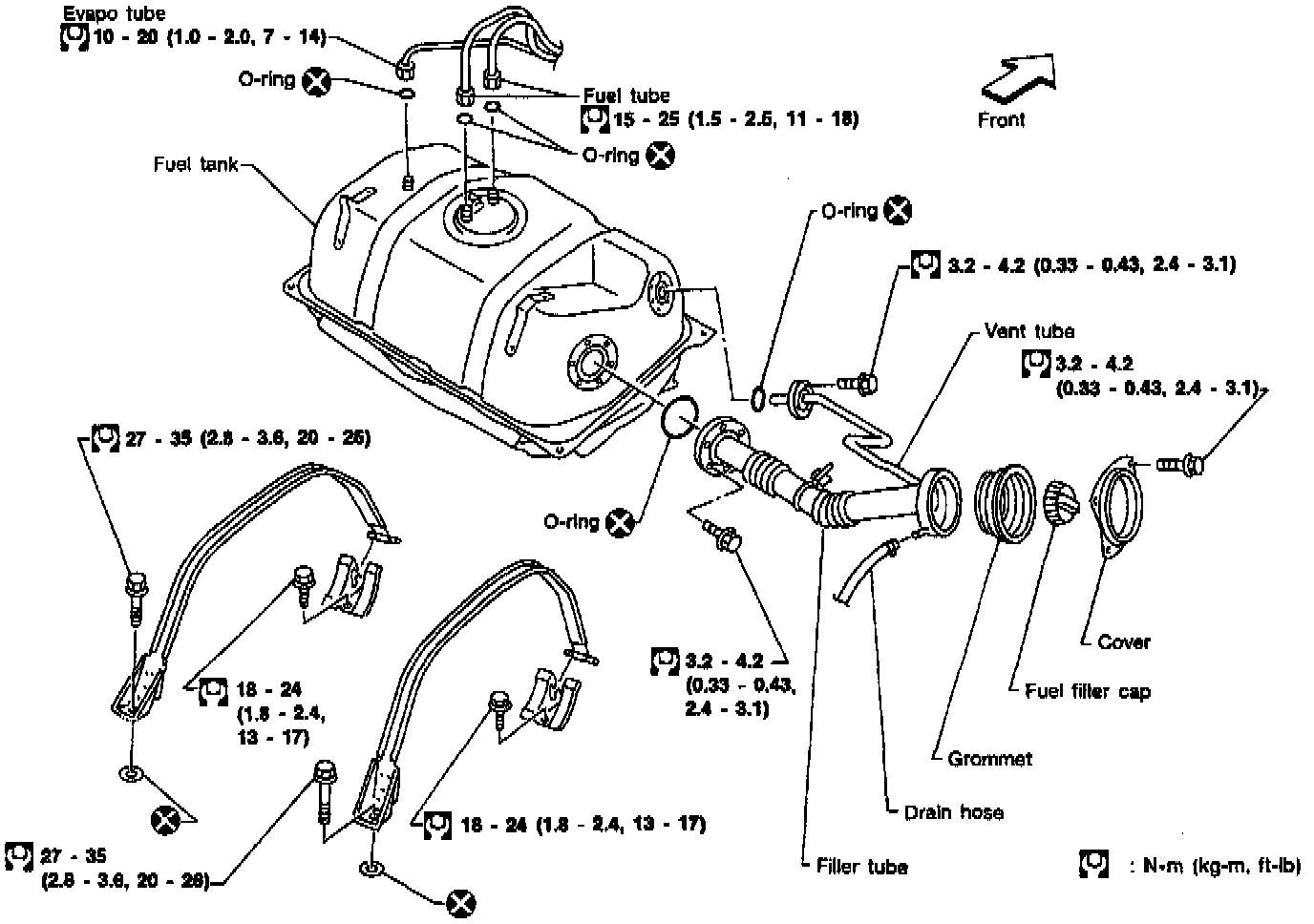

INSTALLATION
- Installation procedure is basically the reverse order of removal.

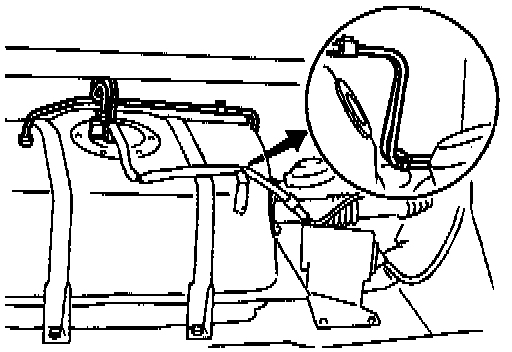

- Before installing fuel tank, make sure the two mounting bands are set in position. Each band has an identification mark.

CAUTION:
- Always replace 0-ring with a new one.
- Do not kink or twist tubes when they are installed.
- Be careful of designated direction of fuel check valve.
- Tighten bolts to specified torque. After installation, run engine and check for leaks at connections.
