Antenna: Testing and Inspection

Window Antenna Repair: Element Check:

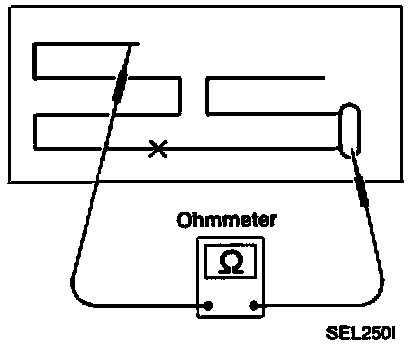

1. Attach probe circuit tester (in ohm range) to antenna terminal on each side.

Window Antenna Repair: Element Check:

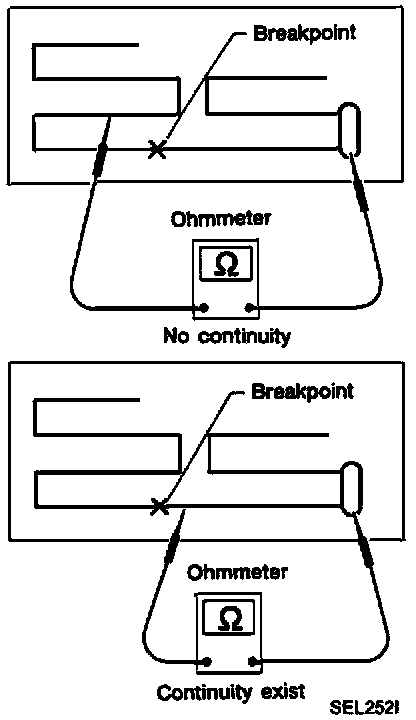

2. If an element is broken, no continuity will exist.

Window Antenna Repair: Element Repair:

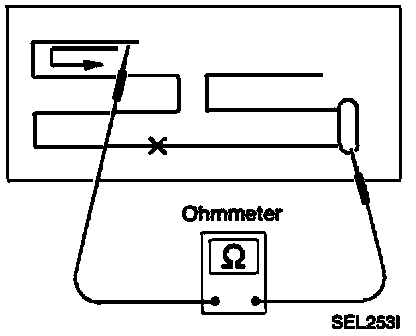

3. To locate broken point, move probe along element. Tester needle will swing abruptly when probe passes the point.
