Initial Inspection and Diagnostic Overview

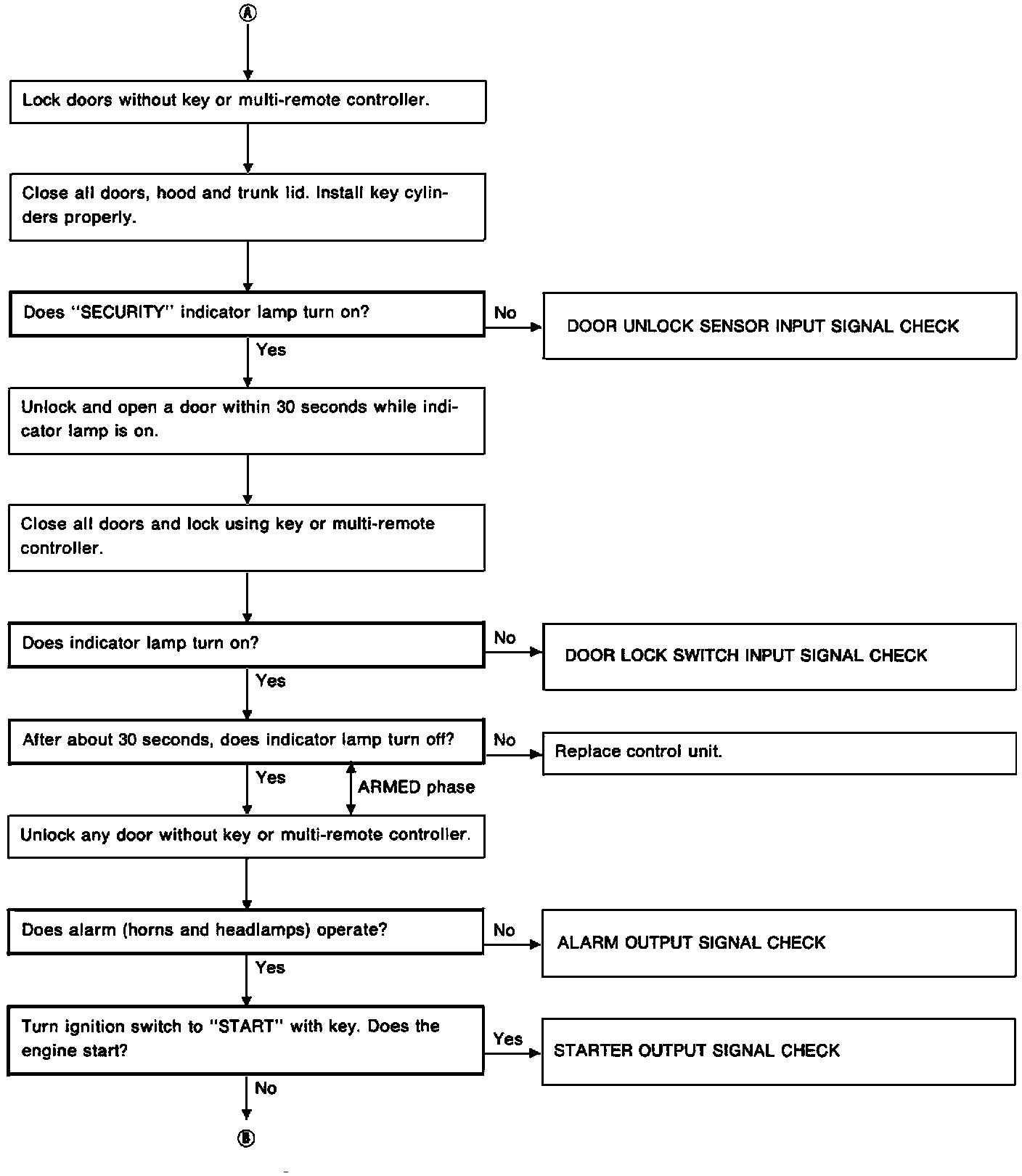

System Operation Check (Part 1 Of 2):

System Operation Check (Part 2 Of 4):

System Operation Check (Part 3 Of 4):

Before starting with the following "SYSTEM OPERATION CHECK", be sure to perform "LAN Communication Diagnosis".

If ignition switch is turned to "ACC" at a step between START and ARMED or in the ARMED phase shown in this flow chart, the system operation is canceled.
