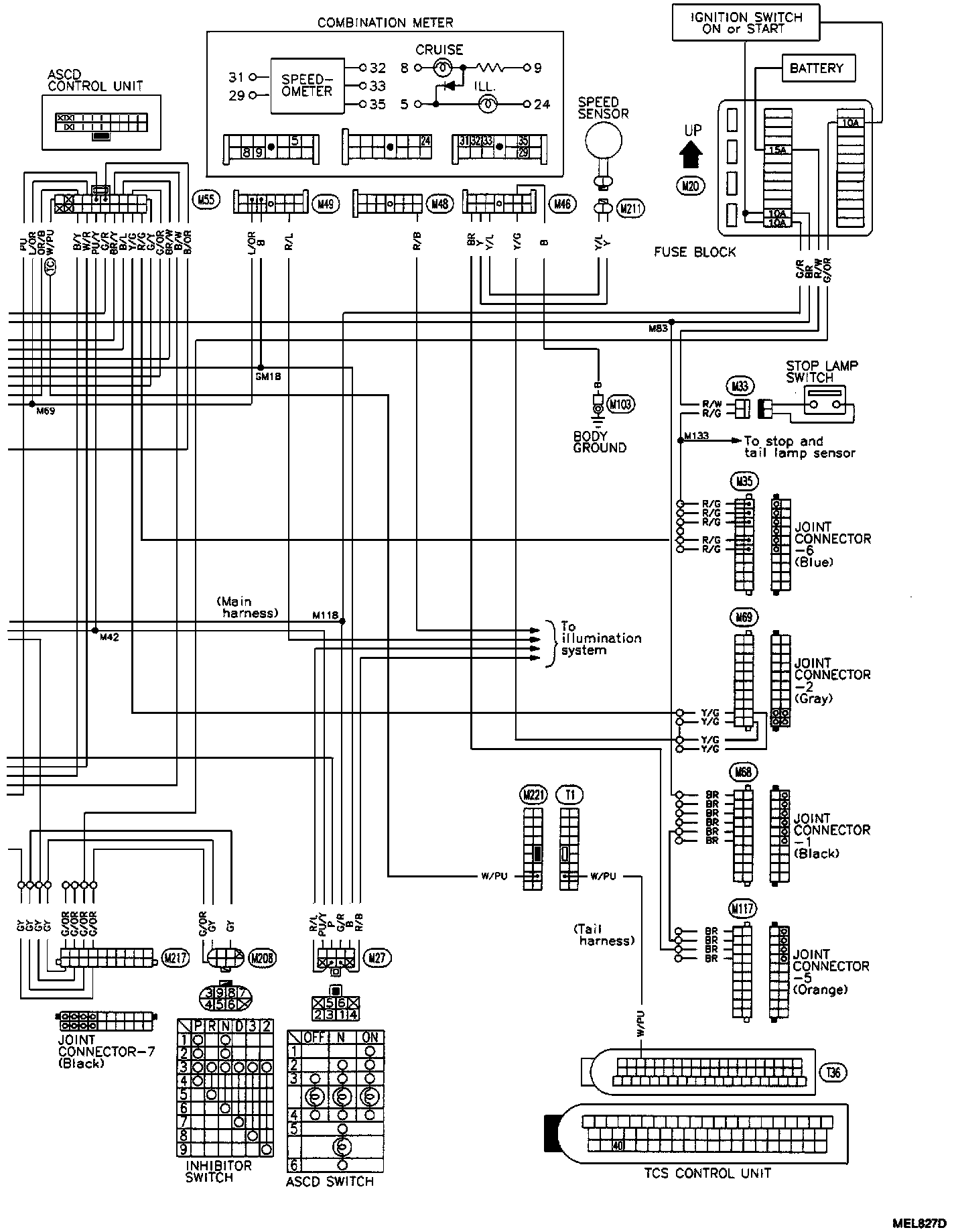

Automatic Speed Control Device: Wiring Diagram (Part 1 Of 2):
Automatic Speed Control Device: Wiring Diagram (Part 2 Of 2):
