CONSULT-II Inspection Procedure

1. Turn off ignition switch.
2. Connect "CONSULT" to diagnostic connector.

3. Turn on ignition switch.
4. Turn on ASCD main switch
5. Touch START (on CONSULT display).

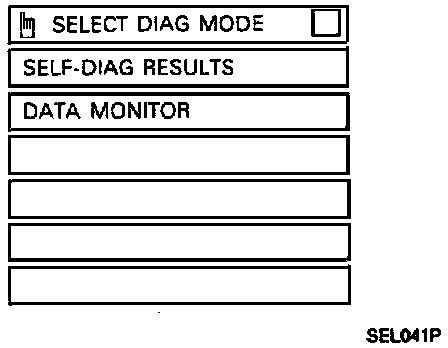

6. Touch ASCD
7. Touch SELF-DIAG RESULTS.

^ Self-diagnostic results are shown on display.

8. Touch DATA MONITOR.

^ Touch START.
^ Data monitor results are shown on display.
